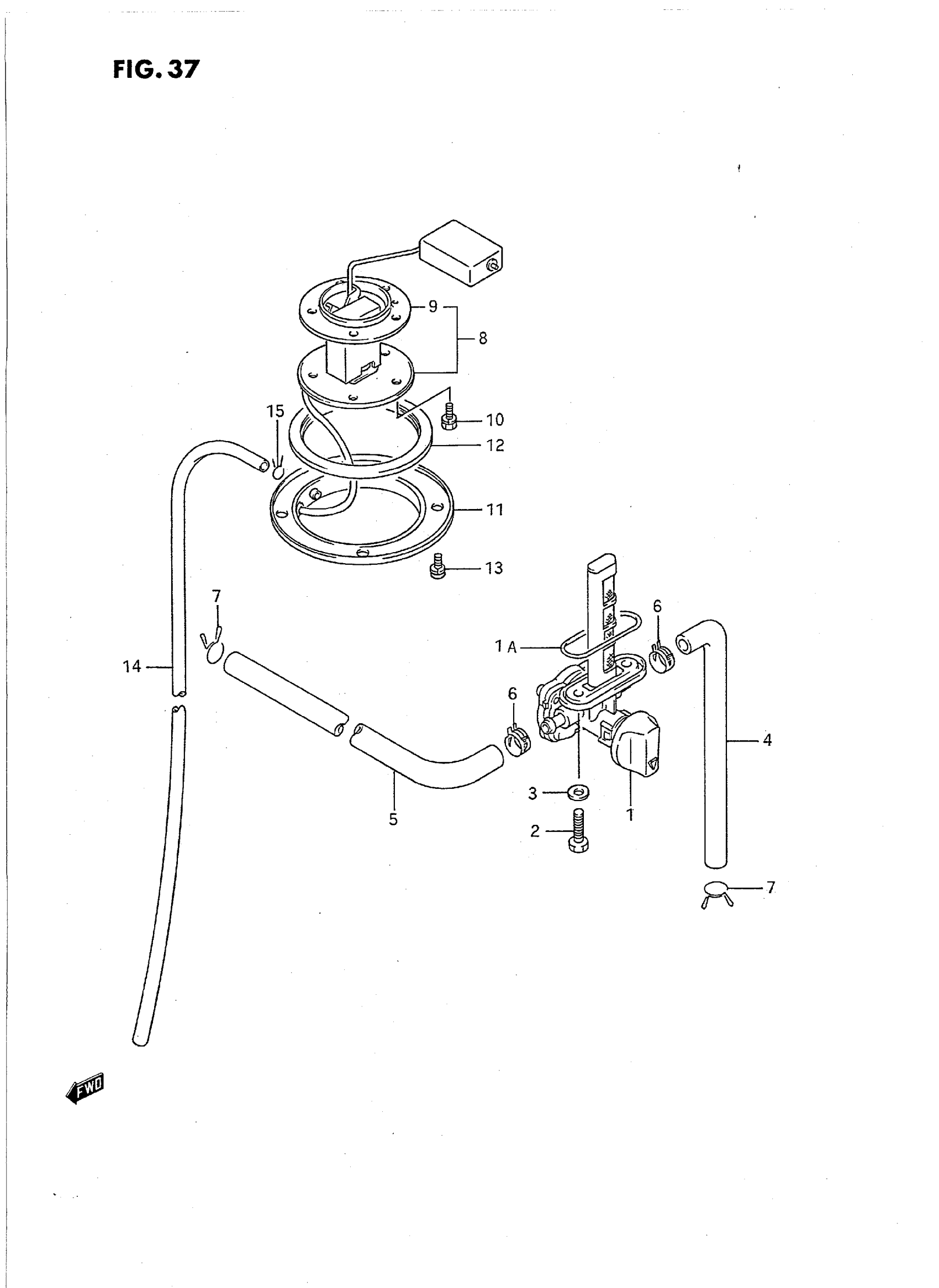

Suzuki GSX750FT (1996) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | Includes Item(s) 1A This part replaces 44300-20C00.

44300-20C01

Unavailable

1A

O RING This part replaces 44348-49170.

44348-49171

$2.88

2

BOLT | MODEL K/L/M/N/P/R/S This part replaces 09128-06006.

09128-06057

$1.65

2

BOLT | MODEL T

09128-06057

$1.65

3

GASKET

09168-06026

$3.10

4

HOSE, 3 OUT/CANISTER This part replaces 09343-07502.

09343-07501

$19.13

5

HOSE, 3 OUT/CANISTER This part replaces 09343-07503.

09343-07501

$19.13

6

CLIP | MODEL K/L/M/N/P/R This part replaces 09401-12406.

09401-11415

$2.23

6

CLIP | MODEL S/T This part replaces 09401-11407.

09401-11415

$2.23

7

CLIP, FUEL HOSE NO.2

09401-12403

$1.96

8

GUAGE ASSY, FUEL LEVEL | Includes Item(s) 9

34810-20C00

Unavailable

9

GASKET

34825-45100

$5.80

10

BOLT This part replaces 01570-05103.

01570-0510B

$2.53

11

PLATE, FUEL DRAIN

34885-40A00

Unavailable

12

GASKET FUEL DRA This part replaces 34888-40A00.

34888-40A01

$10.80

13

SCREW | MODEL K/L/M/N/P/R This part replaces 02112-35083.

02112-3508B

$2.35

13

BOLT | MODEL S/T This part replaces 01570-05083.

01570-0508B

$3.15

14

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

15

CLIP

09401-08402

$1.49
