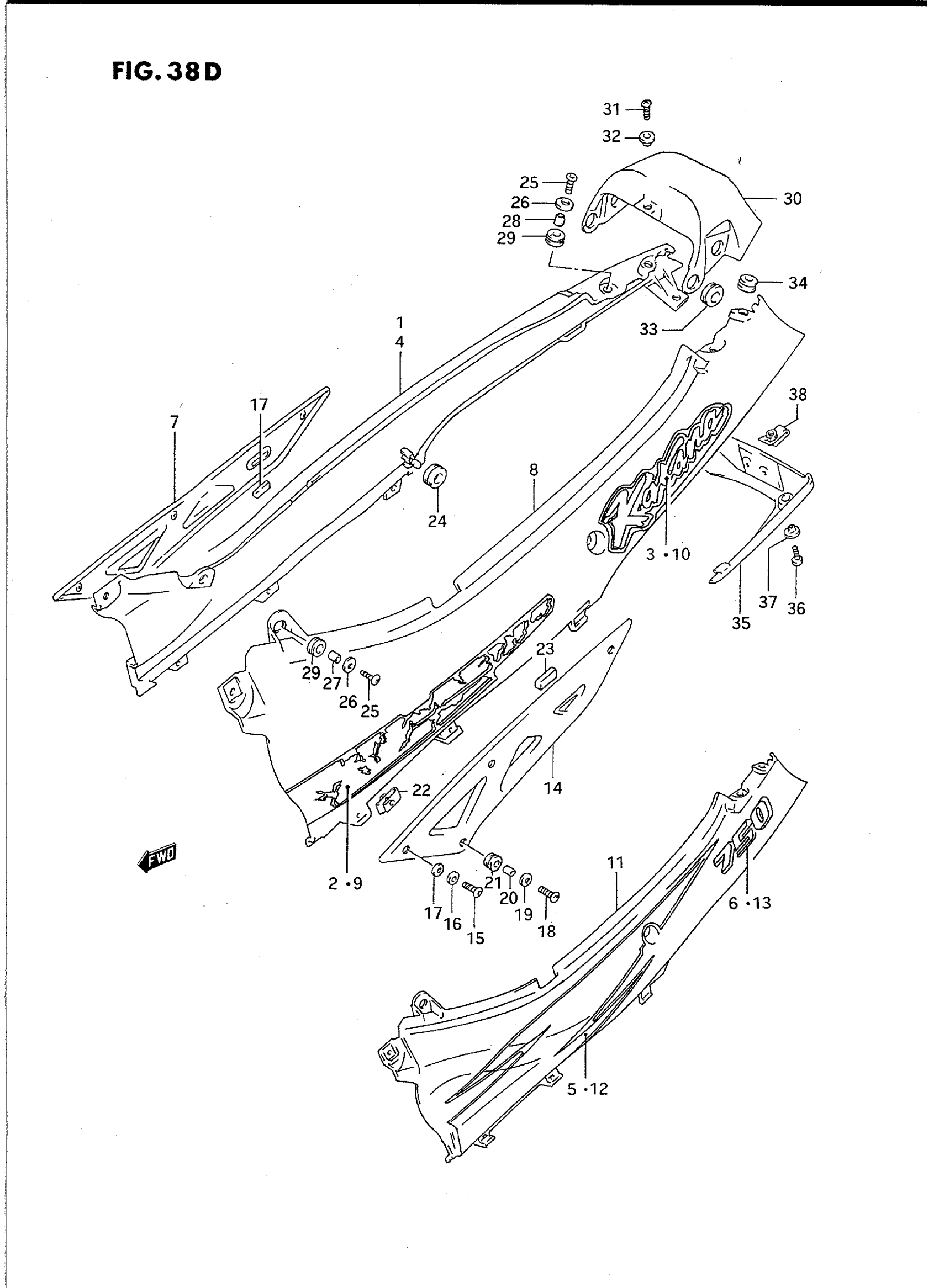

Suzuki GSX750FT (1996) FRAME COVER (MODEL S/T) Diagram

#

Description
Price

1

COVER, FRAME RH (RED) | MODEL S

47110-21C80-19A

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL S; Includes Item(s) 2 - 3 This part replaces 47110-21C80-33J.

47111-20C01

Unavailable

2

TAPE, RH | MODEL S FOR 19A

68135-21C00-D4R

Unavailable

2

TAPE, RH | MODEL S FOR 33J

68135-21C00-D4P

Unavailable

3

EMBLEM | MODEL S FOR 19A

68131-21C20-D4T

Unavailable

3

EMBLEM | MODEL S FOR 33J

68131-21C20-D4S

Unavailable

4

COVER, FRAME RH (GREEN) | MODEL T

47110-21C90-Y98

Unavailable

4

COVER, FRAME RH (BLACK) | MODEL T; Includes Item(s) 5 - 6

47110-21C90-33J

Unavailable

5

TAPE RH | MODEL T FOR Y98

68135-21C10-Z56

Unavailable

5

TAPE RH | MODEL T FOR 33J

68135-21C10-Z55

Unavailable

6

EMBLEM | MODEL T FOR Y98

68131-21C30-E7H

Unavailable

6

EMBLEM | MODEL T FOR 33J

68131-21C30-E7G

Unavailable

7

COVER, FRAME LOWER RH

47131-20C00

Unavailable

8

COVER, FRAME LH (RED) | MODEL S

47210-21C80-19A

Unavailable

8

COVER, FRAME LH (BLACK) | MODEL S; Includes Item(s) 9 - 10

47210-21C80-33J

Unavailable

9

TAPE, LH | MODEL S FOR 19A

68145-21C00-D4R

Unavailable

9

TAPE, LH | MODEL S FOR 33J

68145-21C00-D4P

Unavailable

10

EMBLEM | MODEL S FOR 19A

68131-21C20-D4T

Unavailable

10

EMBLEM | MODEL S FOR 33J

68131-21C20-D4S

Unavailable

11

COVER, FRAME LH (GREEN) | MODEL T

47210-21C90-Y98

Unavailable

11

COVER, FRAME LH (BLACK) | MODEL T; Includes Item(s) 12 - 13

47210-21C90-33J

Unavailable

12

TAPE LH | MODEL T FOR Y98

68145-21C10-Z56

Unavailable

12

TAPE LH | MODEL T FOR 33J

68145-21C10-Z55

Unavailable

13

EMBLEM | MODEL T FOR Y98

68131-21C30-E7H

Unavailable

13

EMBLEM | MODEL T FOR 33J

68131-21C30-E7G

Unavailable

14

COVER, FRAME LOWER LH

47231-20C00

Unavailable

15

SCREW, LOWER FRONT

09120-06005

Unavailable

16

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30

17

WASHER This part replaces 09161-05016.

09320-06501

$3.60

18

SCREW, LOWER

09139-06030

$3.70

19

WASHER

09160-06054

$1.62

20

SPACER

09180-06092

$3.42

21

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

22

PLATE, FITTING

47153-19C01

$7.95

23

CUSHION

47161-20C00

Unavailable

24

CUSHION, CENTER LOWER

09320-08018

$3.04

25

SCREW

09139-06030

$3.70

26

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

27

SPACER, FRONT

09180-06038

$1.98

28

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

29

CUSHION

09320-09016

$1.97

30

COVER, FRAME CENTER (RED) | MODEL S

47311-20C01-19A

Unavailable

30

COVER, FRAME CENTER (BLACK)

47311-20C01-33J

Unavailable

30

COVER, FRAME CENTER (GREEN) | MODEL T

47311-20C01-Y98

Unavailable

31

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

32

WASHER

09169-06037

$2.45

33

GROMMET

09308-16006

$2.53

34

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

35

COVER, REAR LOWER

47321-20C00

Unavailable

36

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

37

WASHER

09169-06037

$2.45

38

PLATE, FITTING

47153-19C01

$7.95
