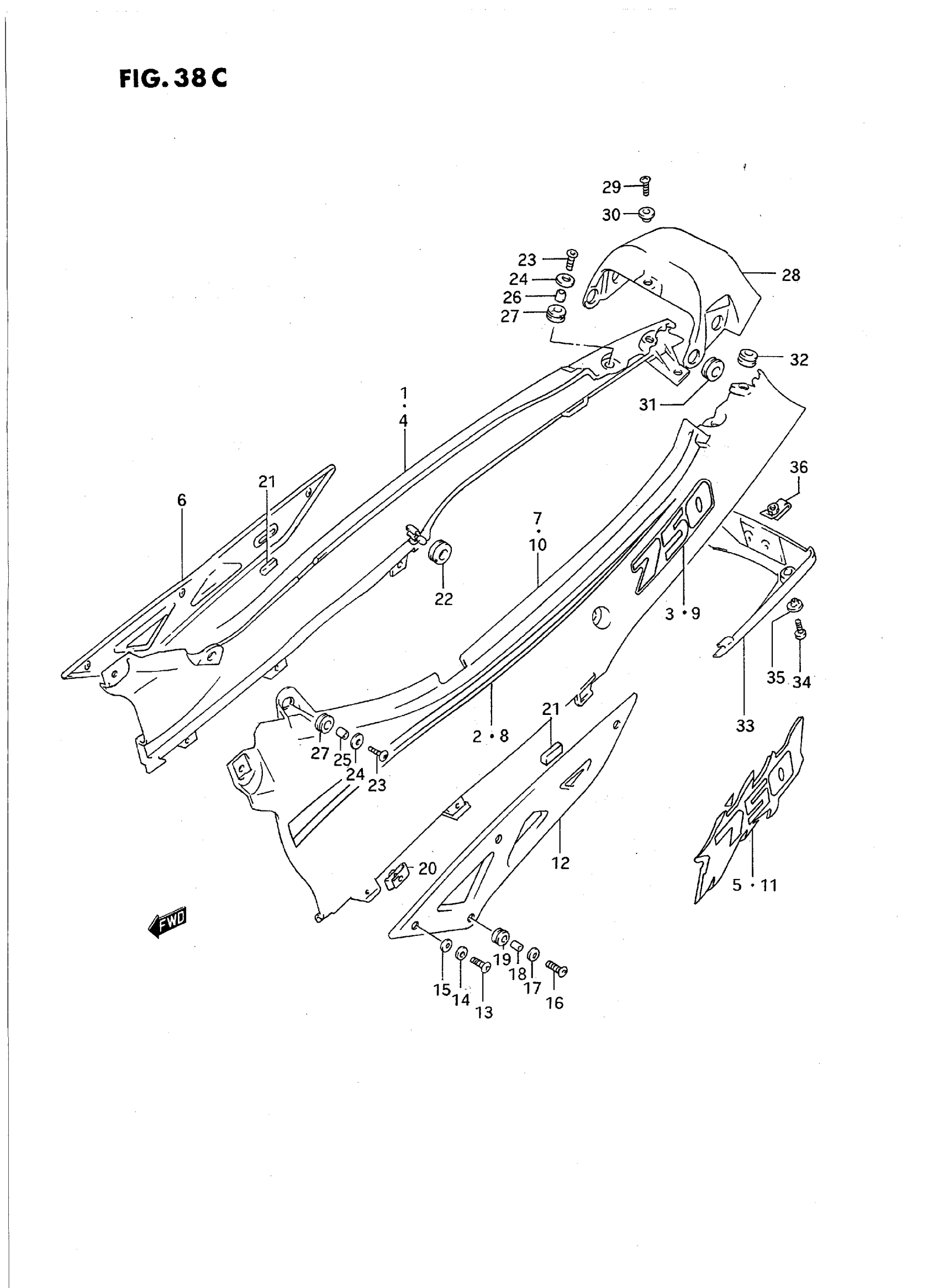

Suzuki GSX750FT (1996) FRAME COVER (MODEL P/R) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE) | MODEL P

47110-21C40-1LE

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL P; Includes Item(s) 2 - 3

47110-21C40-33J

Unavailable

2

TAPE, RH | MODEL P FOR 1LE

68135-20C20-A3V

Unavailable

2

TAPE, RH | MODEL P FOR 33J

68135-20C20-H16

Unavailable

3

EMBLEM | MODEL P FOR 1LE

68131-20C50-A3W

Unavailable

3

EMBLEM | MODEL P FOR 33J

68131-20C50-3CG

Unavailable

4

COVER, FRAME RH (BLACK) | MODEL R; Includes Item(s) 5

47110-21C60-33J

Unavailable

5

EMBLEM, RH | MODEL R

68131-21C00-C2W

Unavailable

6

COVER, FRAME LOWER RH

47131-20C00

Unavailable

7

COVER, FRAME LH (BLUE) | MODEL P

47210-21C40-1LE

Unavailable

7

COVER, FRAME LH (BLACK) | MODEL P; Includes Item(s) 8 - 9

47210-21C40-33J

Unavailable

8

TAPE, LH | MODEL P FOR 1LE

68145-20C20-A3V

Unavailable

8

TAPE, LH | MODEL P FOR 33J

68145-20C20-H16

Unavailable

9

EMBLEM | MODEL P FOR 1LE

68131-20C50-A3W

Unavailable

9

EMBLEM | MODEL P FOR 33J

68131-20C50-3CG

Unavailable

10

COVER, FRAME LH (BLACK) | MODEL R; Includes Item(s) 11

47210-21C60-33J

Unavailable

11

EMBLEM, LH | MODEL R

68131-21C00-C2W

Unavailable

12

COVER, FRAME LOWER LH

47231-20C00

Unavailable

13

SCREW, LOWER FRONT

09120-06005

Unavailable

14

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30

15

WASHER This part replaces 09161-05016.

09320-06501

$3.60

16

SCREW, LOWER

09139-06030

$3.70

17

WASHER

09160-06054

$1.62

18

SPACER

09180-06092

$3.42

19

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

20

PLATE, FITTING

47153-19C01

$7.95

21

CUSHION

47161-20C00

Unavailable

22

CUSHION, CENTER LOWER

09320-08018

$3.04

23

SCREW

09139-06030

$3.70

24

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

25

SPACER, FRONT

09180-06038

$1.98

26

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

27

CUSHION

09320-09016

$1.97

28

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47311-20C01-1LE.

47311-20C01

Unavailable

28

COVER, FRAME CENTER (BLACK)

47311-20C01-33J

Unavailable

29

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

30

WASHER

09169-06037

$2.45

31

GROMMET

09308-16006

$2.53

32

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

33

COVER, REAR LOWER

47321-20C00

Unavailable

34

SCREW | MODEL P This part replaces 02142-06164.

02142-0616A

$1.49

34

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

35

WASHER

09169-06037

$2.45

36

PLATE, FITTING

47153-19C01

$7.95

37

REFER TO FIG.38D(G- 9) FOR

SPECIAL NOTE

Unavailable
