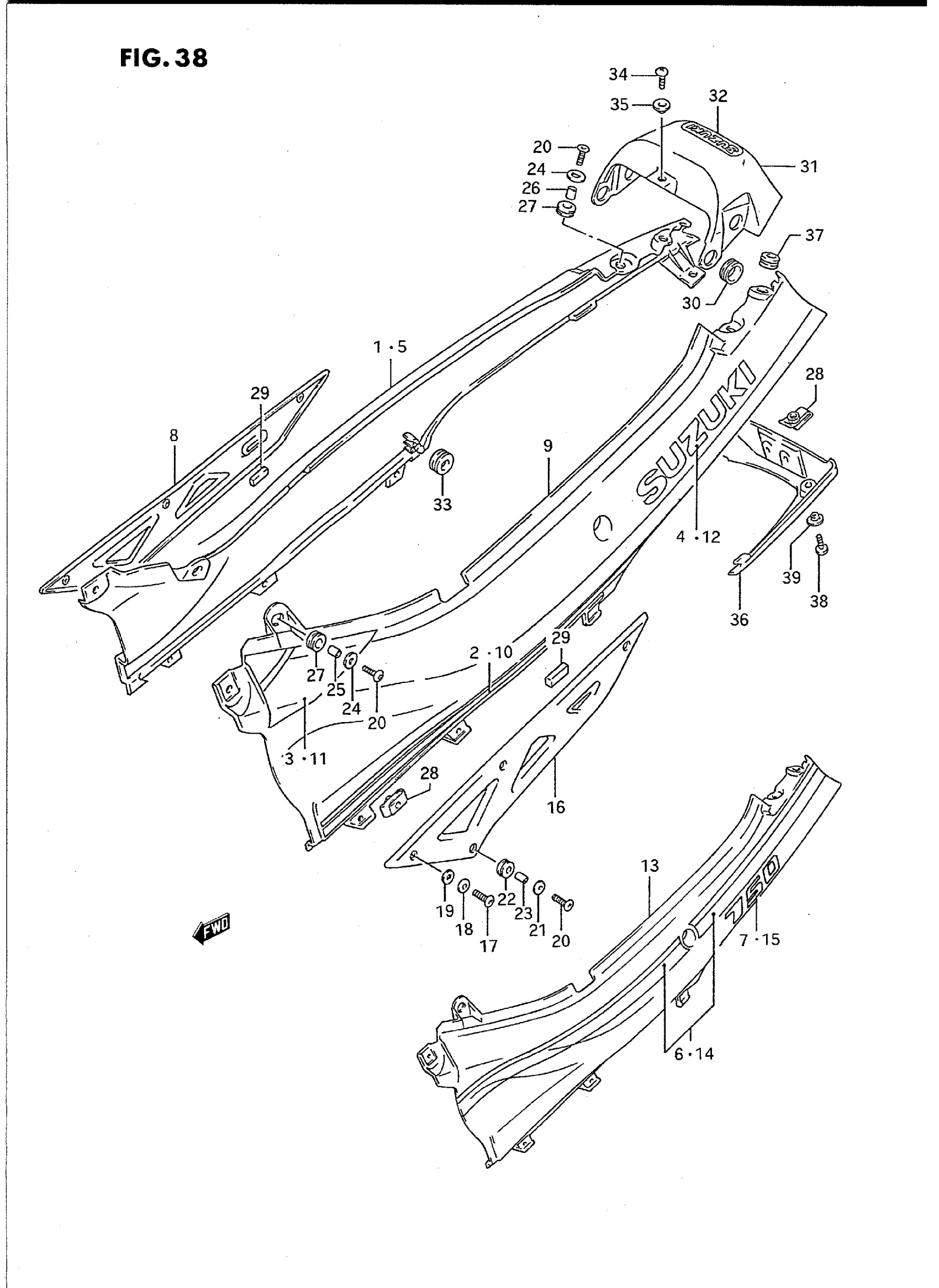

Suzuki GSX750FT (1996) FRAME COVER (MODEL K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K,WITH CLEAR COATING This part replaces 47110-20C10-24V.

47111-20C01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K,NO CLEAR COATING This part replaces 47110-20C11-24V.

47111-20C01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K,WITH CLEAR COATING This part replaces 47110-20C10-0FP.

47111-20C01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K,NO CLEAR COATING; Includes Item(s) 2 - 4 This part replaces 47110-20C11-0FP.

47111-20C01

Unavailable

2

TAPE, RH NO.1 | MODEL K,FOR 24V

68135-20C00-3DB

Unavailable

2

TAPE, RH NO.1 | MODEL K,FOR 0FP

68135-20C00-69L

Unavailable

3

TAPE, RH NO.2 | MODEL K,FOR 24V

68136-20C00-3CW

Unavailable

3

TAPE, RH NO.2 | MODEL K,FOR 0FP

68136-20C00-3CY

Unavailable

4

EMBLEM | MODEL K,FOR 24V This part replaces 68111-43400-742.

68111-43400-13L

Unavailable

4

EMBLEM (BLACK) | MODEL K,FOR 0FP

68111-43400-019

Unavailable

5

COVER, FRAME RH | MODEL L

47110-20C40-3CH

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL L; Includes Item(s) 6 - 7 This part replaces 47110-20C40-3WC.

47111-20C01

Unavailable

6

TAPE SET, RH | MODEL L,FOR 3CH

68130-20C00-3CG

Unavailable

6

TAPE SET, RH | MODEL L,FOR 3WC

68130-20C00-3VV

Unavailable

7

EMBLEM, RH (SILVER) | MODEL L,FOR 3CH

68131-20C30-742

Unavailable

7

EMBLEM, RH (BLACK) | MODEL L,FOR 3WC

68131-20C30-33J

Unavailable

8

COVER, FRAME LOWER RH

47131-20C00

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL K,WITH CLEAR COATING This part replaces 47210-20C10-24V.

47211-20C01

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL K,NO CLEAR COATING This part replaces 47210-20C11-24V.

47211-20C01

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL K,WITH CLEAR COATING This part replaces 47210-20C10-0FP.

47211-20C01

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL K,NO CLEAR COATING; Includes Item(s) 10 - 12 This part replaces 47210-20C11-0FP.

47211-20C01

Unavailable

10

TAPE, LH NO.1 | MODEL K,FOR 24V

68145-20C00-3DB

Unavailable

10

TAPE, LH NO.1 | MODEL K,FOR 0FP

68145-20C00-69L

Unavailable

11

TAPE, LH NO.2 | MODEL K,FOR 24V

68146-20C00-3CW

Unavailable

11

TAPE, LH NO.2 | MODEL K,FOR 0FP

68146-20C00-3CY

Unavailable

12

EMBLEM | MODEL K,FOR 24V This part replaces 68111-43400-742.

68111-43400-13L

Unavailable

12

EMBLEM (BLACK) | MODEL K,FOR 0FP

68111-43400-019

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47210-20C40-3CH.

47211-20C01

Unavailable

13

COVER, FRAME LH | MODEL L; Includes Item(s) 14 - 15

47210-20C40-3WC

Unavailable

14

TAPE SET, LH | MODEL L,FOR 3CH

68140-20C00-3CG

Unavailable

14

TAPE SET, LH | MODEL L,FOR 3WC

68140-20C00-3VV

Unavailable

15

EMBLEM, LH (SILVER) | MODEL L,FOR 3CH

68131-20C30-742

Unavailable

15

EMBLEM, LH (BLACK) | MODEL L,FOR 3WC

68131-20C30-33J

Unavailable

16

COVER, FRAME LOWER LH

47231-20C00

Unavailable

17

SCREW, LOWER COVER NO.1

09120-06005

Unavailable

18

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30

19

WASHER This part replaces 09161-05016.

09320-06501

$3.60

20

SCREW, LOWER COVER NO.2

09139-06030

$3.70

21

WASHER

09160-06054

$1.62

22

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

23

SPACER

09180-06092

$3.42

24

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

25

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

26

SPACER, REAR

09180-06038

$1.98

27

CUSHION

09320-09016

$1.97

28

PLATE, FITTING

47153-19C01

$7.95

29

CUSHION, LOWER

47161-20C00

Unavailable

30

CUSHION, PILLION RIDER

09308-16006

$2.53

31

NO DESCRIPTION AVAILABLE | MODEL K,WITH CLEAR COATING This part replaces 47310-20C00-24V.

47311-20C01

Unavailable

31

NO DESCRIPTION AVAILABLE | MODEL K,NO CLEAR COATING This part replaces 47310-20C01-24V.

47311-20C01

Unavailable

31

NO DESCRIPTION AVAILABLE | MODEL K,WITH CLEAR COATING This part replaces 47310-20C00-0FP.

47311-20C01

Unavailable

31

NO DESCRIPTION AVAILABLE | MODEL K,NO CLEAR COATING This part replaces 47310-20C01-0FP.

47311-20C01

Unavailable

31

COVER, FRAME CENTER (SILVER) | MODEL L

47310-20C01-20H

Unavailable

31

COVER, FRAME CENTER (BLACK) | MODEL L; Includes Item(s) 32 - 32

47310-20C01-33J

Unavailable

32

EMBLEM, REAR (SILVER) | FOR 24V,33J This part replaces 68271-34A00-742.

68271-34A00-13L

Unavailable

32

EMBLEM,"SUZUKI" | FOR 0FP,20H This part replaces 68271-34A00-019.

68271-34A01-20G

$5.45

33

CUSHION, CENTER BOSS

09320-08018

$3.04

34

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

35

WASHER

09169-06037

$2.45

36

COVER, FRAME REAR

47321-20C00

Unavailable

37

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

38

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

39

WASHER

09169-06037

$2.45

40

COLOR : 3CH = 33J(BLACK),

SPECIAL NOTE

Unavailable
