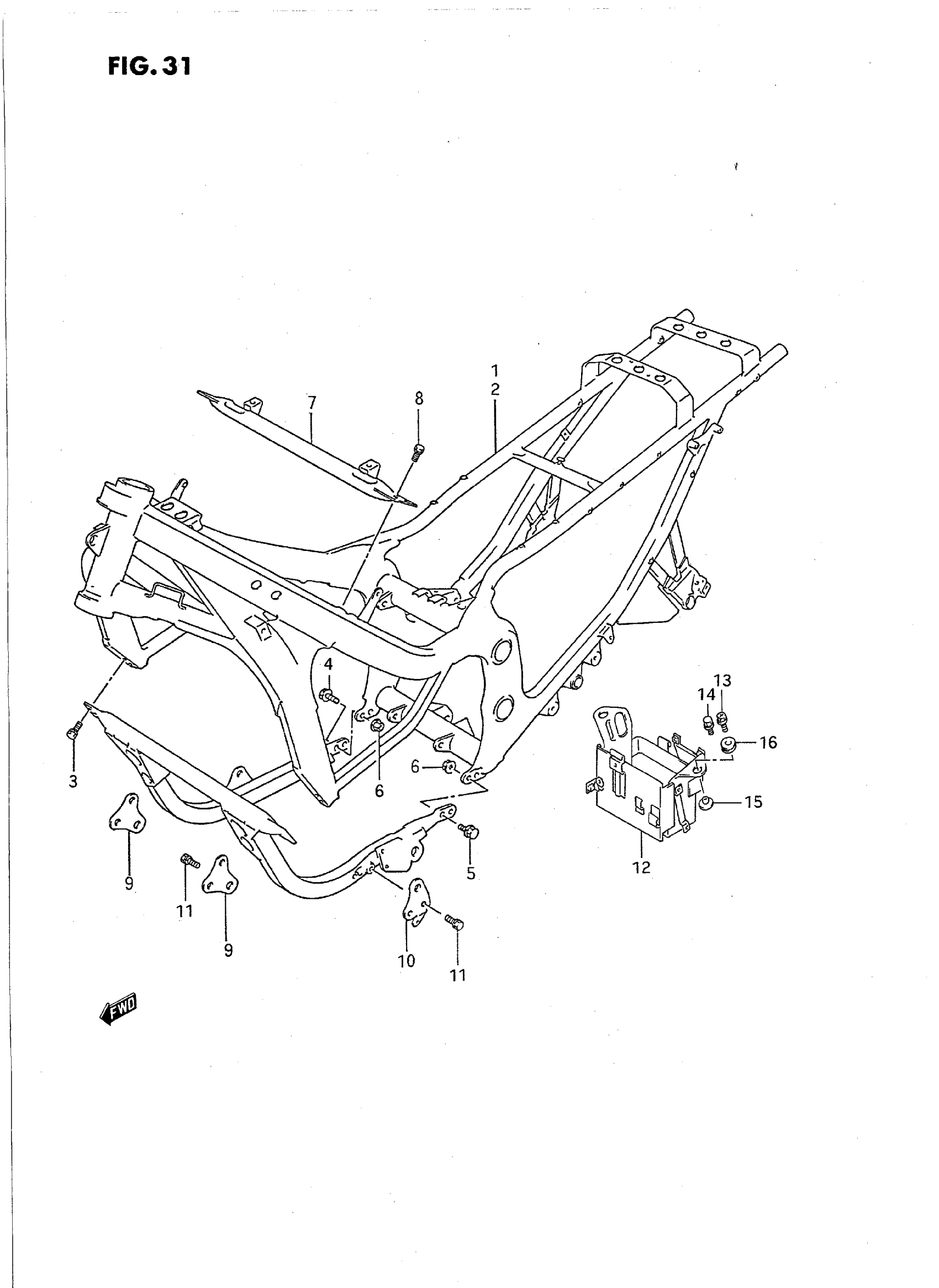

Suzuki GSX750FT (1996) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N This part replaces 41101-20810-291.

41101-20850-291

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 41101-20811-291.

41101-20850-291

Unavailable

1

FRAME SET (BLACK) | MODEL R/S/T

41101-20850-019

Unavailable

2

FRAME SET (BLACK) | CALIFORNIA ONLY,MODEL K/L/M/N This part replaces 41101-20820-291.

41101-20821-291

Unavailable

2

FRAME SET (BLACK) | CALIFORNIA ONLY,MODEL P

41101-20821-291

Unavailable

2

FRAME SET (BLACK) | CALIFORNIA ONLY,MODEL R/S/T; Includes Item(s) 3 - 6

41101-20821-019

Unavailable

3

BOLT, BRACE | MODEL K This part replaces 01137-08205.

01570-0820A

$3.15

3

BOLT, UPPER | MODEL L/M/N/P

01500-08257

$2.50

3

BOLT | MODEL R/S/T This part replaces 01570-08253.

01570-0825A

$3.15

4

BOLT | MODEL K/L/M/N/P This part replaces 01517-08254.

01550-0825A

$2.32

5

BOLT | MODEL K/L/M/N/P This part replaces 01517-08304.

01550-0830A

$3.04

5

BOLT | MODEL R/S/T This part replaces 01550-08303.

01550-0830A

$3.04

6

NUT This part replaces 08319-31085.

08319-3108A

$2.32

7

TUBE, FRAME BRIGE | MODEL K/L This part replaces 41750-19C00.

41750-34C00

Unavailable

7

TUBE, FRAME BRIDGE | MODEL M/N/P/R/S/T

41750-34C00

Unavailable

8

BOLT | MODEL K This part replaces 01137-08165.

01570-0816A

$3.03

8

BOLT | MODEL L/M/N/P

01570-08167

$3.85

8

BOLT | MODEL R/S/T

09103-08266

$2.71

9

PLATE, NO.1 (BLACK) | MODEL K/L/M/N/P This part replaces 41911-19C00-291.

41911-19C00-019

Unavailable

9

PLATE, NO.1 (BLACK) | MODEL R/S/T

41911-19C00-019

Unavailable

10

PLATE, NO.2 (BLACK) | MODEL K/L/M/N/P This part replaces 41940-20C00-291.

41940-20C00-019

Unavailable

10

PLATE, NO.2 (BLACK) | MODEL R/S/T

41940-20C00-019

Unavailable

11

BOLT | MODEL K This part replaces 01137-08165.

01570-0816A

$3.03

11

BOLT | MODEL L/M/N/P

01570-08167

$3.85

11

BOLT | MODEL R/S/T This part replaces 01570-08163.

01570-0816A

$3.03

12

HOLDER, BATTERY

41540-20C01

Unavailable

13

BOLT | MODEL K/L/M/N/P/R This part replaces 09137-06014.

01570-0630A

$3.03

14

BOLT | MODEL S/T This part replaces 01570-06303.

01570-0630A

$3.03

15

SPACER | MODEL K/L/M/N/P/R This part replaces 41570-19C00.

09169-06065

$4.32

15

SPACER | MODEL S/T This part replaces 41570-47D00.

09169-06065

$4.32

16

CUSHION (8.5X20X8) | MODEL K/L/M/N/P/R This part replaces 09320-08007.

09320-08510

$1.97

16

CUSHION (8.5X20X8) | MODEL S/T This part replaces 09320-08021.

09320-08510

$1.97
