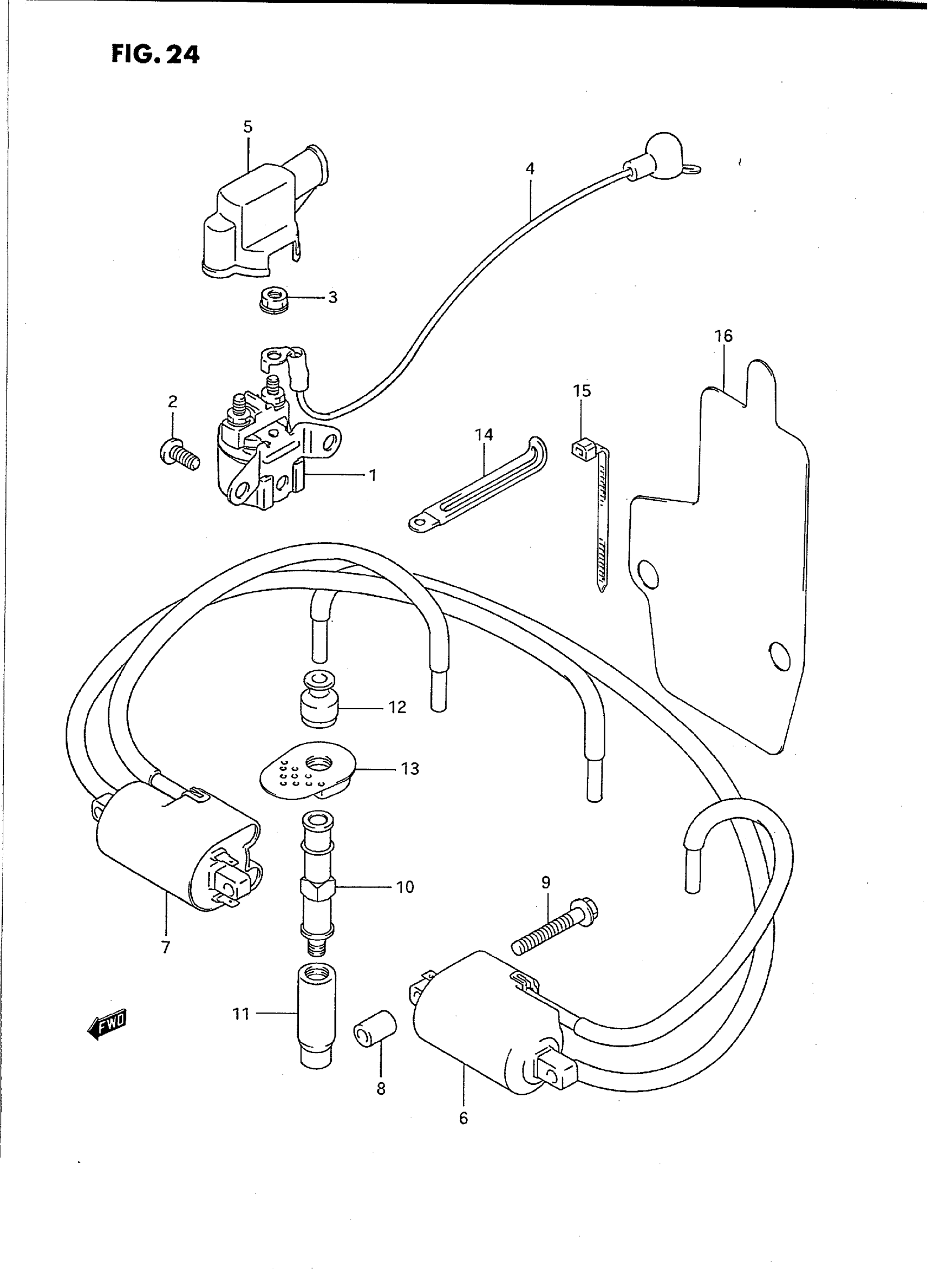

Suzuki GSX750FT (1996) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

SCREW | MODEL K/L/M/N/P/R This part replaces 02112-06106.

02112-0610B

$1.84

2

SCREW | MODEL S/T This part replaces 02112-06103.

02112-0610B

$1.84

3

NUT This part replaces 08361-35066.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR This part replaces 33850-19C00.

33810-41C00

Unavailable

5

CAP, TERMINAL | MODEL K/L/M/N/P/R This part replaces 31861-19C00.

31861-10D10

Unavailable

5

CAP, TERMINAL | MODEL S/T

31861-10D10

Unavailable

6

COIL ASSY, IGNITION NO.1 This part replaces 33410-19C00.

33410-19C01

$138.67

7

COIL ASSY, IGNITION NO.2 This part replaces 33420-19C00.

33420-19C01

$142.75

8

SPACER

09180-06198

$4.32

9

BOLT | MODEL K/L/M/N/P/R This part replaces 01517-06456.

01550-0645A

$2.41

9

BOLT | MODEL S/T This part replaces 01550-06453.

01550-0645A

$2.41

10

CAP, SPARK PLUG | ~E.NO.115114 This part replaces 33510-20C01.

33510-20C02

$38.58

10

CAP, SPARK PLUG | E.NO.115115~

33510-20C02

$38.58

11

SEAL, PLUG

33541-20C00

$13.43

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

COVER

33543-48B00

$7.25

14

CLAMP | MODEL K/L/M/N/P/R/S This part replaces 09404-06403.

09404-06039

$1.74

14

CLAMP | MODEL T This part replaces 09404-06431.

09404-06039

$1.74

15

CLAMP

09407-18402

$2.19

16

COVER, IGNITION | MODEL S/T

33411-20C00

Unavailable
