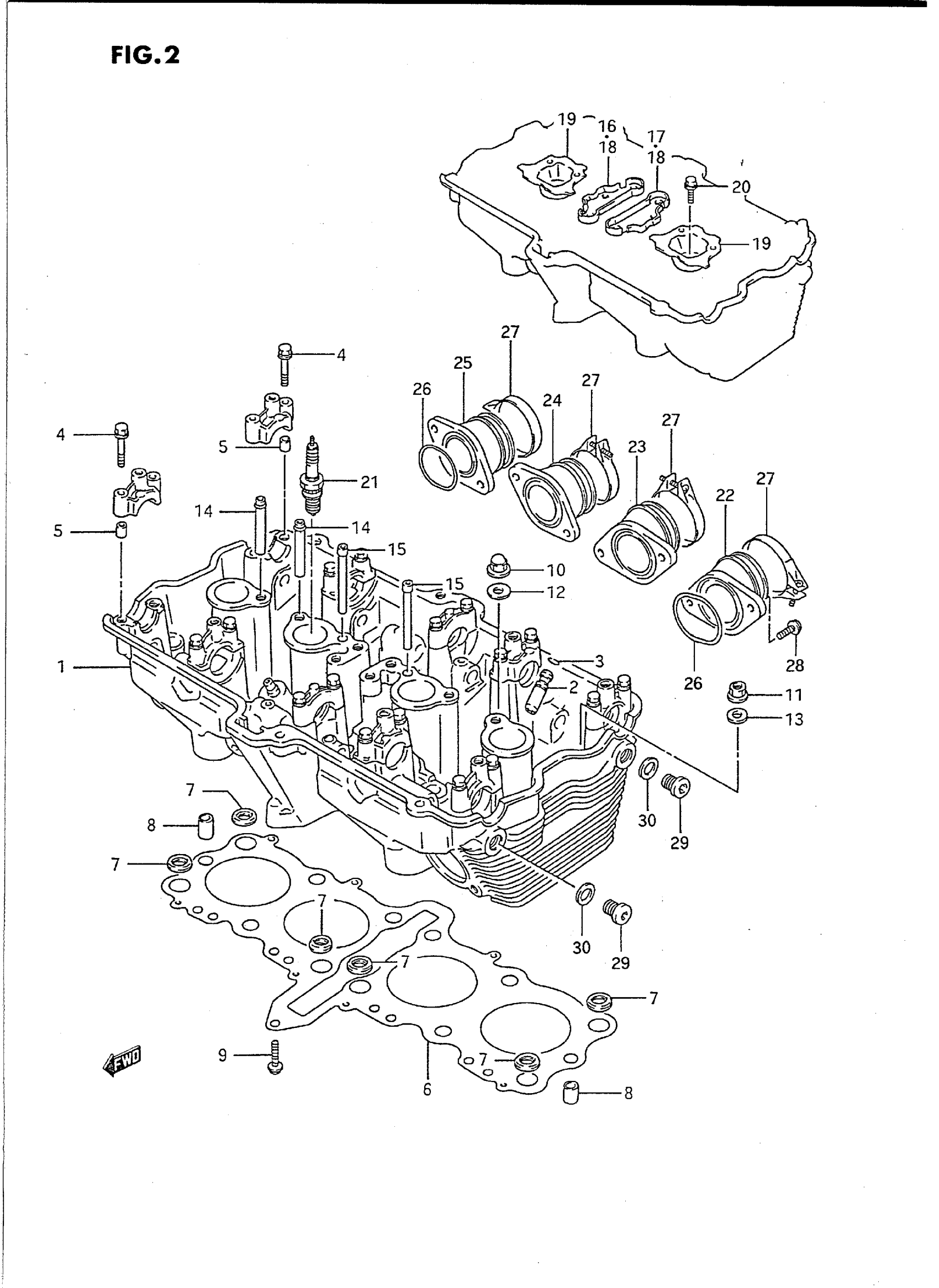

Suzuki GSX750FT (1996) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-20C02

Unavailable

1

HEAD ASSY, CYLINDER | CALIFORNIA ONLY; Includes Item(s) 2 - 5

11100-20C12

Unavailable

2

GUIDE, VALVE

11116-06B70

$45.97

3

.RING (10X85)

09381-10004

$1.35

4

BOLT (6X39)

09103-06026

$1.84

5

PIN

09206-08001

$1.77

6

GASKET,CYLINDER This part replaces 11141-17C02.

11141-17C03

Unavailable

7

O RING

11143-06B00

$8.33

8

PIN

04211-11189

$1.80

9

BOLT | MODEL K/L/M/N/P This part replaces 01517-06254.

01550-0625A

$1.97

9

BOLT | MODEL R/S/T This part replaces 01550-06253.

01550-0625A

$1.97

10

NUT

09159-10054

$8.50

11

NUT | MODEL K/L/M/N/P This part replaces 08316-16106.

08316-1010B

$2.65

11

NUT | MODEL R/S/T This part replaces 08316-10103.

08316-1010B

$2.65

12

.GASKET (10.2X20X2.3)

09168-10031

$2.01

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.24

14

PIPE, OIL NO.1,2

11131-27A00

$7.22

15

PIPE, OIL NO.3

11133-27A00

Unavailable

16

PLATE, OIL PIPE NO.1 | ~E.NO.110712 This part replaces 11135-17C01.

11135-17C10

Unavailable

17

PLATE, OIL PIPE NO.1 | ~E.NO.110712 This part replaces 11136-17C01.

11135-17C10

Unavailable

18

PLATE, OIL PIPE NO.1 | E.NO.110713~

11135-17C10

Unavailable

19

PLATE, OIL PIPE,NO.2

11137-17C01

Unavailable

20

BOLT | MODEL K/L/M/N/P

01547-06127

$1.67

20

BOLT | MODEL R/S/T This part replaces 01547-06123.

01547-0612B

$1.22

21

SPARK PLUG (NGK,JR9C)

09482-00397

$5.81

21

SPARK PLUG (NGK,JR8C) | OPT

09482-00401

$8.13

22

PIPE, INTAKE, LH This part replaces 13101-17C00.

13101-17C01

Unavailable

23

PIPE ASSY,INTAK This part replaces 13102-17C00.

13102-17C02

Unavailable

24

PIPE ASSY,INTAK This part replaces 13103-17C00.

13103-17C02

Unavailable

25

PIPE, INTAKE, RH | Includes Item(s) 26 This part replaces 13104-17C00.

13104-17C01

Unavailable

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

27

CLAMP

09402-52208

$4.84

28

SCREW | MODEL K/L/M/N/P This part replaces 02152-06165.

02112-0616A

$1.43

28

SCREW | MODEL R/S/T This part replaces 02112-16163.

02112-1616A

$2.50

29

PLUG, CYLINDER HEAD

09248-14010

$7.03

30

GASKET

09168-14002

$2.83
