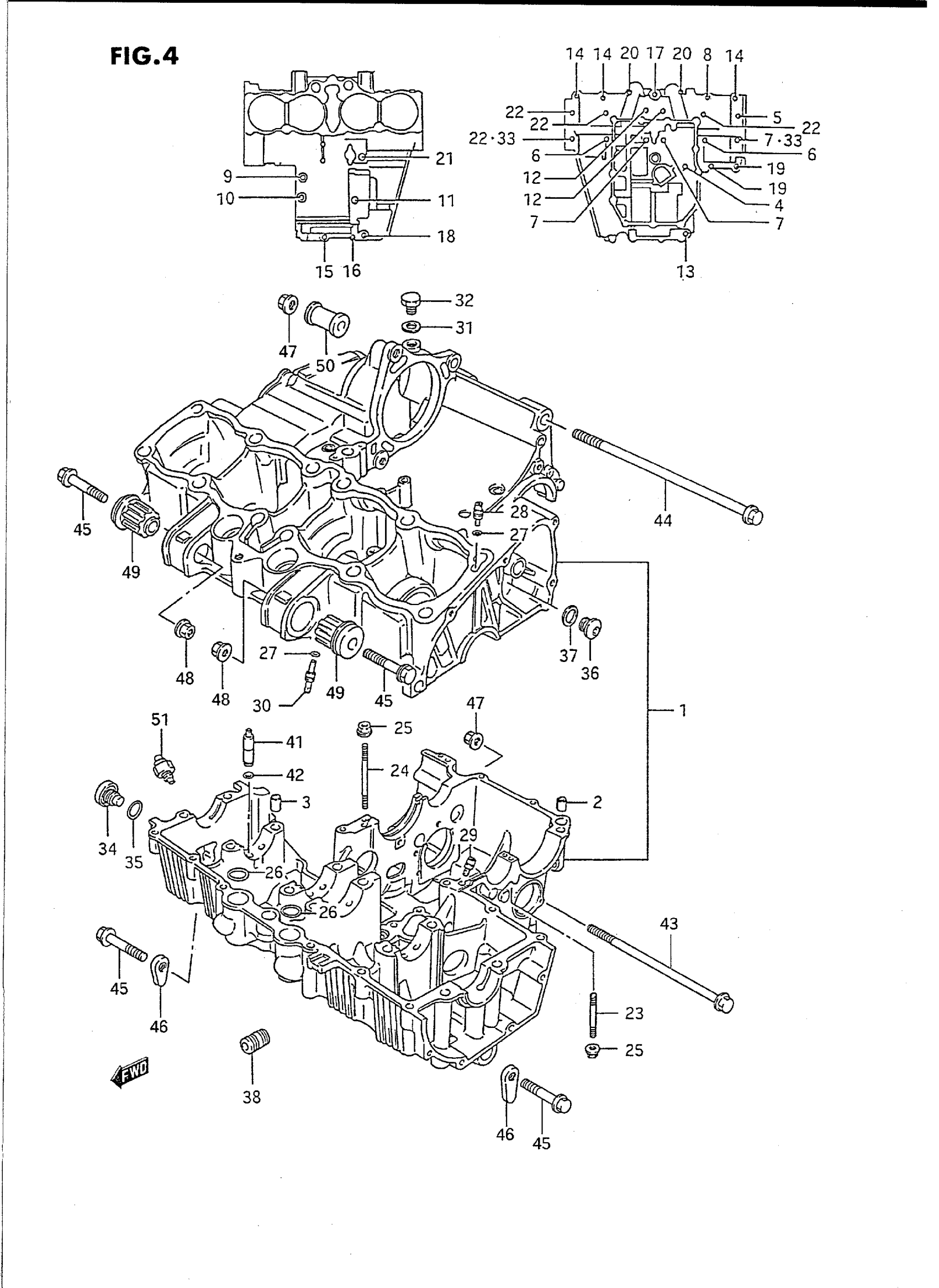

Suzuki GSX750FT (1996) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N This part replaces 11300-20892.

11300-20894

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P/R/S/T; Includes Item(s) 2 - 40 This part replaces 11300-20893.

11300-20894

Unavailable

2

PIN

09206-13004

$2.44

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

4

BOLT (6X105) | MODEL K/L/M/N/P

09103-06067

$3.00

4

BOLT (6X105) | MODEL R/S/T

09103-06163

Unavailable

5

BOLT (8X105)

09103-08097

$3.15

6

BOLT (8X125)

09103-08182

$6.22

7

BOLT (8X115)

09103-08098

$4.20

8

BOLT | MODEL K/L/M/N This part replaces 01517-06354.

01550-0635A

$2.31

8

BOLT | MODEL P This part replaces 01517-06358.

01550-06357

$2.80

8

BOLT | MODEL R/S/T This part replaces 01550-06353.

01550-0635A

$2.31

9

BOLT, STATOR | MODEL K/L/M/N This part replaces 07110-06405.

07130-0640B

$3.10

9

BOLT | MODEL P This part replaces 07130-06408.

07130-06407

Unavailable

9

BOLT, STATOR | MODEL R/S/T This part replaces 07130-06403.

07130-0640B

$3.10

10

BOLT | MODEL K/L/M/N This part replaces 07110-06505.

07130-0650B

$4.45

10

BOLT | MODEL P This part replaces 07130-06508.

07130-0650B

$4.45

10

BOLT | MODEL R/S/T This part replaces 07130-06503.

07130-0650B

$4.45

11

BOLT | MODEL K/L/M/N This part replaces 07110-06655.

07130-0665B

$3.47

11

BOLT | MODEL P This part replaces 07130-06658.

07130-0665B

$3.47

11

BOLT | MODEL R/S/T This part replaces 07130-06653.

07130-0665B

$3.47

12

BOLT | MODEL K/L/M/N This part replaces 07110-08655.

07130-0865B

$5.73

12

BOLT | MODEL P This part replaces 07130-08658.

07130-0865B

$5.73

12

BOLT | MODEL R/S/T This part replaces 07130-08653.

07130-0865B

$5.73

13

BOLT | MODEL K/L/M/N This part replaces 01517-08605.

01550-0860A

$1.37

13

BOLT | MODEL P This part replaces 01517-08608.

01550-08607

$3.44

13

BOLT | MODEL R/S/T This part replaces 01550-08603.

01550-0860A

$1.37

14

BOLT | MODEL K/L/M/N This part replaces 01517-06354.

01550-0635A

$2.31

14

BOLT | MODEL P This part replaces 01517-06358.

01550-06357

$2.80

14

BOLT | MODEL R/S/T This part replaces 01550-06353.

01550-0635A

$2.31

15

BOLT | MODEL K/L/M/N This part replaces 01517-06404.

01550-0640A

$2.43

15

BOLT | MODEL P This part replaces 01517-06408.

01550-06407

$2.73

15

BOLT | MODEL R/S/T This part replaces 01550-06403.

01550-0640A

$2.43

16

BOLT

01550-06407

$2.73

17

BOLT | MODEL K/L/M/N This part replaces 01517-06505.

01550-0650A

$3.10

17

BOLT (6X50) | MODEL P This part replaces 01517-06508.

01550-06507

$3.70

17

BOLT | MODEL R/S/T This part replaces 01550-06503.

01550-0650A

$3.10

18

BOLT | MODEL K/L/M/N This part replaces 01517-06605.

01550-0660A

$2.80

18

BOLT | MODEL P This part replaces 01517-06608.

01550-06607

$4.53

18

BOLT | MODEL R/S/T This part replaces 01550-06603.

01550-0660A

$2.80

19

BOLT | MODEL K/L/M/N/P This part replaces 01517-06557.

01550-06557

$3.58

19

BOLT | MODEL R/S/T This part replaces 01550-06553.

01550-0655B

$3.58

20

BOLT | MODEL K/L/M/N This part replaces 01517-06705.

01550-0670B

$4.62

20

BOLT | MODEL P This part replaces 01517-06708.

01550-06707

$4.68

20

BOLT | MODEL R/S/T This part replaces 01550-06703.

01550-0670B

$4.62

21

BOLT | MODEL K/L/M/N This part replaces 01517-06805.

01550-0680B

$3.80

21

BOLT | MODEL P This part replaces 01517-06808.

01550-06807

Unavailable

21

BOLT | MODEL R/S/T This part replaces 01550-06803.

01550-0680B

$3.80

22

BOLT (8X95)

09103-08105

$4.20

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

Unavailable

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$4.12

25

NUT | MODEL K/L/M/N/P This part replaces 09159-06017.

08319-31067

$2.01

25

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

$2.50

26

O RING (D:2.5,ID:21)

09280-21008

$1.89

27

O RING

09280-04004

$1.76

28

JET, OIL GALLERY HEAD

09493-14002

Unavailable

29

JET, OIL GALLERY GEAR SHIFT

09493-24010

$18.33

30

JET, OIL GALLERY PISTON

09493-80008

Unavailable

31

GASKET, HOLE PLUG

09168-12002

$1.59

32

PLUG, HOLE

09247-12103

$2.80

33

GASKET

09168-08021

$2.66

34

PLUG This part replaces 09248-16003.

09248-16007

$10.83

35

O RING

09280-17002

$4.62

36

PLUG, CYLINDER HEAD | MODEL K/L This part replaces 09248-14004.

09248-14010

$7.03

36

PLUG, SHAFT | MODEL M/N/P/R/S/T This part replaces 09248-14005.

09248-14011

$2.80

37

GASKET

09168-14002

$2.83

38

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

39

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.8(B-12)

12228-48B00-0E0

$8.80

40

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.8(B-12)

12228-48B00-0C0

$12.82

40

BEARING, THRUST LH (GREEN) | SEE ILLUSTRATION ON FIG.8(B-12)

12228-48B00-0E0

$8.80

40

BEARING, THRUST LH (BLACK) | SEE ILLUSTRATION ON FIG.8(B-12)

12228-48B00-0H0

$9.09

41

VALVE ASSY, PISTON OIL CONTRO

16430-27A00

Unavailable

42

O RING

09280-05007

$2.08

43

BOLT (10X130) | MODEL K/L/M/N/P

09103-10237

$10.53

43

BOLT (10X130) | MODEL R/S/T

09103-10122

$9.12

44

BOLT (10X175)

09103-10151

Unavailable

45

BOLT | MODEL K/L/M/N/P This part replaces 01987-10555.

01580-1055B

$5.83

45

BOLT | MODEL R/S/T This part replaces 01580-10553.

01580-1055B

$5.83

46

NUT

09159-10020

$5.63

47

NUT, REAR SWGARM BRACKET | MODEL K/L/M/N/P This part replaces 09159-10044.

09159-10115

$3.21

47

NUT, REAR SWGARM BRACKET | MODEL R/S/T This part replaces 09159-10058.

09159-10115

$3.21

48

NUT | MODEL K/L/M/N/P This part replaces 08316-16105.

08316-1010B

$2.65

48

NUT | MODEL R/S/T This part replaces 08316-10103.

08316-1010B

$2.65

49

BUSH,ENGINE MOU This part replaces 11681-06B00.

11681-06B01

$20.01

50

SPACER, ENGINE MOUNT | MODEL K This part replaces 11611-06B01.

11610-20C00

$17.40

50

SPACER (L:27) | MODEL L/M/N/P/R/S/T

11610-20C00

$17.40

51

SWITCH ASSY,OIL PRESSURE | MODEL K/L/M/N This part replaces 37820-33200.

37820-33D11

$27.58

51

SWITCH ASSY,OIL PRESSURE | MODEL P/R/S/T This part replaces 37820-33D00.

37820-33D11

$27.58
