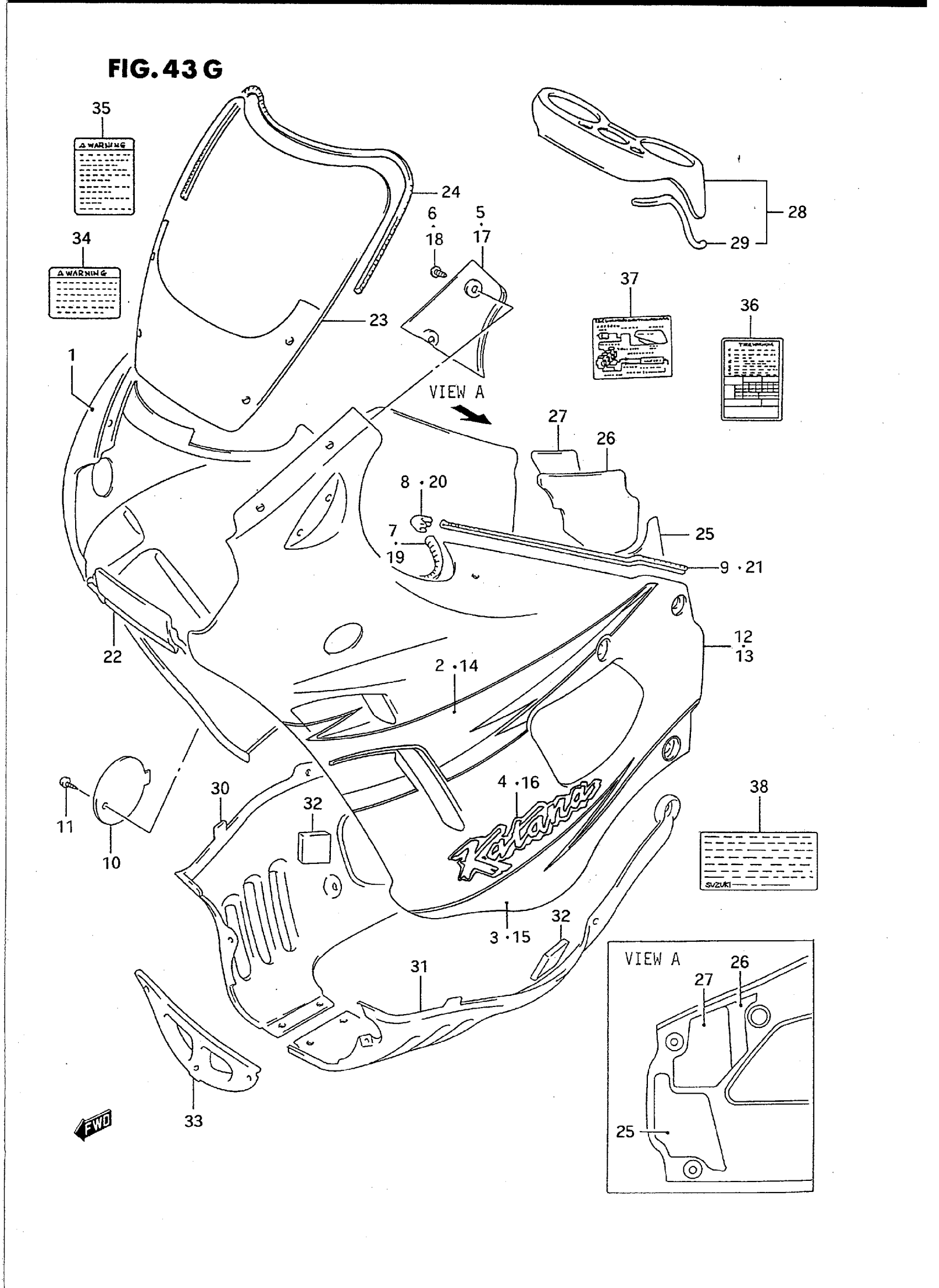

Suzuki GSX750FT (1996) COWLING BODY (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94401-21CH0-33J.

94401-21CH1-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 11 This part replaces 94401-21CH0-Y98.

94401-21CH1-Y98

Unavailable

2

TAPE, SIDE UPPER RH | FOR 33J

68685-21C10-Z57

Unavailable

2

TAPE, SIDE UPPER RH | FOR Y98

68685-21C10-Z59

Unavailable

3

TAPE, SIDE LOWER RH | FOR 33J

68686-21C20-Z58

Unavailable

3

TAPE, SIDE LOWER RH | FOR Y98

68686-21C20-Z61

Unavailable

4

EMBLEM | FOR 33J

68681-21C20-E7G

Unavailable

4

EMBLEM | FOR Y98

68681-21C20-E7H

Unavailable

5

COVER, METER SIDE RH (BLACK)

94433-19C01-33J

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 94433-19C01-Y98.

94433-19C01

Unavailable

6

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

7

MOLDING, FRONT | L:1000->300

94631-49310

Unavailable

8

JOINT

94438-19C00

Unavailable

9

MOLDING, REAR

94635-19C00

$8.53

10

LID, OIL (BLACK)

94435-19C01-33J

Unavailable

10

LID, OIL (GREEN)

94435-19C01-Y98

Unavailable

11

SCREW

09139-06030

$3.70

12

NO DESCRIPTION AVAILABLE This part replaces 94402-21CH0-33J.

94440-19C02-33J

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 94402-21CH0-Y98.

94402-21CH1-Y98

Unavailable

13

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 94402-21CJ0-33J.

94402-21CJ1-33J

Unavailable

13

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 14 - 15 This part replaces 94402-21CJ0-Y98.

94402-21CJ1-Y98

Unavailable

14

TAPE, SIDE UPPER LH | FOR 33J

68695-21C10-Z57

Unavailable

14

TAPE, SIDE UPPER LH | FOR Y98

68695-21C10-Z59

Unavailable

15

TAPE, SIDE LOWER LH | FOR 33J

68696-21C20-Z58

Unavailable

15

TAPE, SIDE LOWER LH | FOR Y98

68696-21C20-Z61

Unavailable

15

TAPE, SIDE LOWER LH | CALIFORNIA ONLY,FOR 33J

68696-21C30-Z58

Unavailable

15

TAPE, SIDE LOWER LH | CALIFORNIA ONLY,FOR Y98

68696-21C30-Z61

Unavailable

16

EMBLEM | FOR 33J; Includes Item(s) 16 - 21

68681-21C20-E7G

Unavailable

16

EMBLEM | FOR Y98

68681-21C20-E7H

Unavailable

17

COVER, METER SIDE LH (BLACK)

94443-19C01-33J

Unavailable

17

COVER, METER SIDE LH (GREEN)

94443-19C01-Y98

Unavailable

18

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

19

MOLDING, FRONT | L:1000->300

94631-49310

Unavailable

20

JOINT

94438-19C00

Unavailable

21

MOLDING, REAR

94635-19C00

$8.53

22

PANEL, CENTER (BLACK)

94421-19C01-33J

Unavailable

22

PANEL, CENTER (GREEN)

94421-19C01-Y98

Unavailable

23

SCREEN, WINDOW

94610-20C60

Unavailable

24

MOLDING | L:800->700

94631-18D01

Unavailable

25

SHEET, BALANCER NO.2 | CALIFORNIA ONLY

94574-20C00

Unavailable

25

SHEET, BALANCER NO.2 LH | CALIFORNIA ONLY

94584-20C10

Unavailable

26

BALANCER SHEET,RH | CALIFORNIA ONLY

94573-20C00

Unavailable

26

BALANCER SHEET,LH | CALIFORNIA ONLY

94583-20C00

Unavailable

27

CUSHION,RH

94576-20C00

Unavailable

27

CUSHION,LH

94586-20C00

Unavailable

28

COVER, METER | Includes Item(s) 29

94420-20C02

Unavailable

29

MOLDING

94635-20C00

Unavailable

30

COVER, UNDER RH (GRAY) | FOR 33J

94471-19C00-1TU

Unavailable

30

COVER, UNDER RH (BLACK) | FOR Y98

94471-19C00-33J

Unavailable

31

COVER, UNDER LH (GRAY) | FOR 33J

94481-19C00-1TU

Unavailable

31

COVER, UNDER LH (BLACK) | FOR Y98

94481-19C00-33J

Unavailable

32

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

33

COVER, FRONT

94475-19C01

Unavailable

34

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

35

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

36

NO DESCRIPTION AVAILABLE This part replaces 68332-20C10.

68332-20C11

Unavailable

37

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY

68387-17C00

Unavailable

38

LABEL,MANUAL NOTICE This part replaces 68353-26E01.

68353-26E03

$5.05

39

REFER TO FIG.44 (I-12) FOR

SPECIAL NOTE

Unavailable
