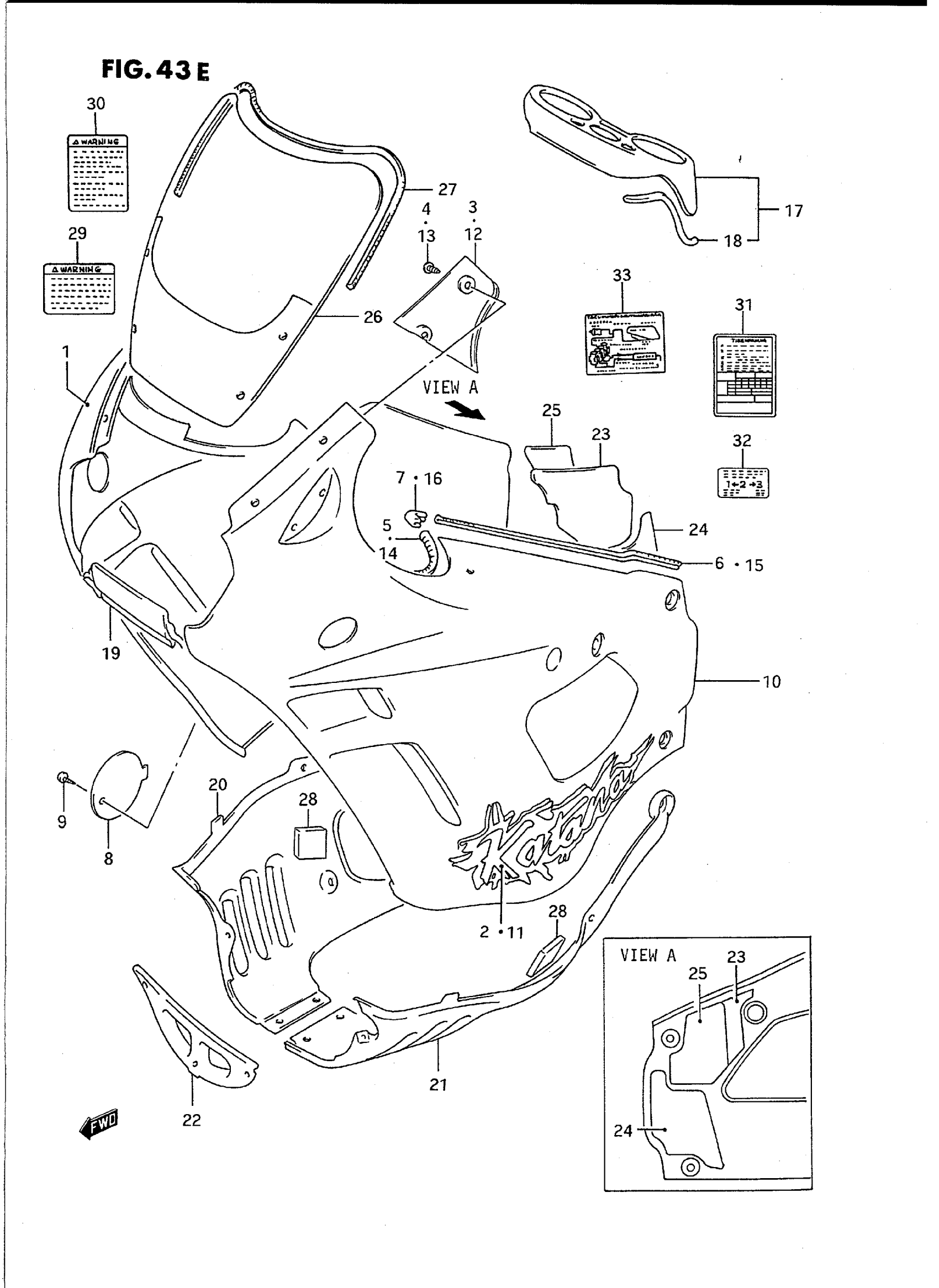

Suzuki GSX750FT (1996) COWLING BODY (MODEL R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 9 This part replaces 94401-21CB0-33J.

94401-21CB1-33J

Unavailable

2

EMBLEM, KATANA

68681-21C10-1WH

Unavailable

3

COVER, METER SIDE RH (BLACK)

94433-19C01-33J

Unavailable

4

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

5

MOLDING | L:1000->L:300

94631-49310

Unavailable

6

MOLDING

94635-19C00

$8.53

7

JOINT

94438-19C00

Unavailable

8

LID, OIL (BLACK)

94435-19C01-33J

Unavailable

9

SCREW

09139-06030

$3.70

10

NO DESCRIPTION AVAILABLE This part replaces 94402-21CB0-33J.

94402-21CB1-33J

Unavailable

10

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 11 - 16 This part replaces 94402-21CC0-33J.

94440-20C02-33J

Unavailable

11

EMBLEM, KATANA

68691-21C10-1WH

Unavailable

11

EMBLEM, KATANA | CALIFORNIA ONLY

68691-21C20-1WH

Unavailable

12

COVER, METER SIDE LH (BLACK)

94443-19C01-33J

Unavailable

13

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

14

MOLDING | L:1000->L:300

94631-49310

Unavailable

15

MOLDING

94635-19C00

$8.53

16

JOINT

94438-19C00

Unavailable

17

COVER, METER (BLACK) | Includes Item(s) 18

94420-20C02

Unavailable

18

MOLDING

94635-20C00

Unavailable

19

PANEL, COW CENTER (BLACK)

94421-19C01-33J

Unavailable

20

COVER, COW UNDER RH (BLACK)

94471-19C00-33J

Unavailable

21

COVER, COW UNDER LH (BLACK)

94481-19C00-33J

Unavailable

22

COVER, COW UNDER FRONT (BLACK

94475-19C01

Unavailable

23

BALANCER, COW SHEET RH

94573-20C00

Unavailable

23

BALANCER, COW SHEET LH

94583-20C00

Unavailable

24

SHEET, COW BALANCER RH

94574-20C00

Unavailable

24

SHEET, COW BALANCER LH

94584-20C00

Unavailable

24

SHEET, COW BALANCER LH | CALIFORNIA ONLY

94584-20C10

Unavailable

25

CUSHION, COWLING RH

94576-20C00

Unavailable

25

CUSHION, COWLING LH

94586-20C00

Unavailable

26

SCREEN SET, WIND

94610-20C60

Unavailable

27

MOLDING, SCREEN | L:800->700

94631-18D01

Unavailable

28

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

29

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

30

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

31

NO DESCRIPTION AVAILABLE This part replaces 68332-20C10.

68332-20C11

Unavailable

32

LABEL, REAR SHOCK ABSORBER

68341-20C00

Unavailable

33

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY

68387-17C00

Unavailable

34

REFER TO FIG.43F (I- 8) FOR

SPECIAL NOTE

Unavailable
