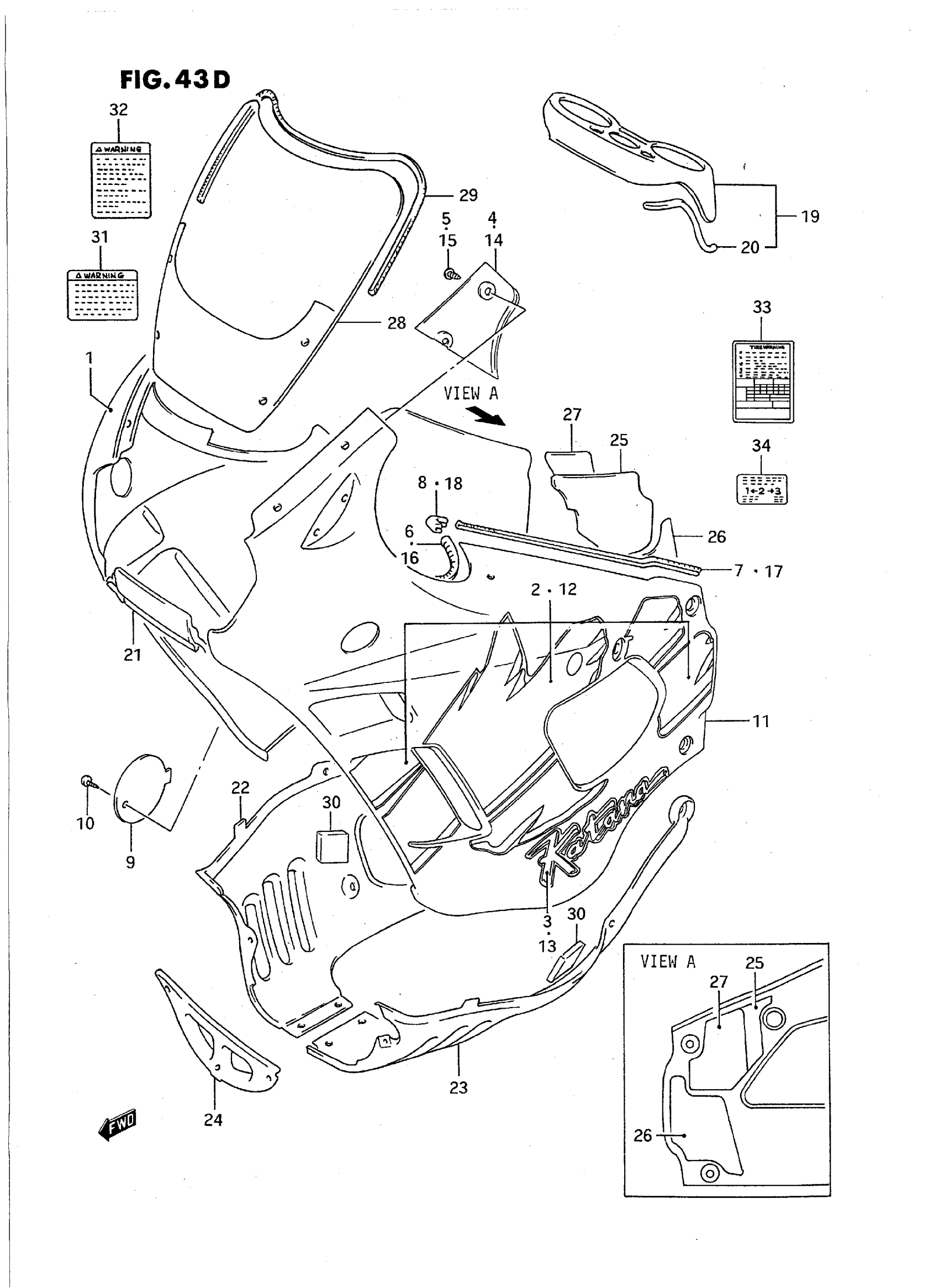

Suzuki GSX750FT (1996) COWLING BODY (MODEL P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 1LE This part replaces 94401-21C70-1LE.

94401-21C71-1LE

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 36X; Includes Item(s) 2 - 10 This part replaces 94401-21C70-33J.

94401-21C71-33J

Unavailable

2

TAPE SET, RH | FOR 1LE

68680-20C50-A4A

Unavailable

2

TAPE SET, RH | FOR 33J

68680-20C50-A3Y

Unavailable

3

EMBLEM, KATANA | FOR 1LE

68681-20C10-A4A

Unavailable

3

EMBLEM, KATANA | FOR 33J

68681-20C10-A4B

Unavailable

4

COVER, METER SIDE RH (BLUE) | FOR 1LE

94433-19C01-1LE

Unavailable

4

COVER, METER SIDE RH (BLACK) | FOR 33J

94433-19C01-33J

Unavailable

5

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

6

MOLDING | L:1000->L:300

94631-49310

Unavailable

7

MOLDING

94635-19C00

$8.53

8

JOINT

94438-19C00

Unavailable

9

LID, OIL (BLUE) | FOR 1LE

94435-19C01-1LE

Unavailable

9

LID, OIL (BLACK) | FOR 33J

94435-19C01-33J

Unavailable

10

SCREW

09139-06030

$3.70

11

NO DESCRIPTION AVAILABLE | FOR 1LE This part replaces 94402-21C70-1LE.

94402-21C71-1LE

Unavailable

11

NO DESCRIPTION AVAILABLE | FOR 36X This part replaces 94402-21C70-33J.

94402-21C71-33J

Unavailable

11

NO DESCRIPTION AVAILABLE | FOR 1LE,CALIFORNIA ONLY This part replaces 94402-21C80-1LE.

94402-21C81-1LE

Unavailable

11

NO DESCRIPTION AVAILABLE | FOR 36X,CALIFORNIA ONLY; Includes Item(s) 12 - 18 This part replaces 94402-21C80-33J.

94402-21C81-33J

Unavailable

12

TAPE SET, LH | FOR 1LE

68690-20C50-A4A

Unavailable

12

TAPE SET, LH | FOR 33J

68690-20C50-A3Y

Unavailable

12

TAPE SET, LH | FOR 1LE,CALIFORNIA ONLY

68690-20C60-A4A

Unavailable

12

TAPE SET, LH | FOR 33J,CALIFORNIA ONLY

68690-20C60-A3Y

Unavailable

13

EMBLEM, KATANA | FOR 1LE

68681-20C10-A4A

Unavailable

13

EMBLEM, KATANA | FOR 33J

68681-20C10-A4B

Unavailable

14

COVER, METER SIDE LH (BLUE) | FOR 1LE

94443-19C01-1LE

Unavailable

14

COVER, METER SIDE LH (BLACK) | FOR 33J

94443-19C01-33J

Unavailable

15

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

16

MOLDING | L:1000->L:300

94631-49310

Unavailable

17

MOLDING

94635-19C00

$8.53

18

JOINT

94438-19C00

Unavailable

19

COVER, METER (BLACK) | Includes Item(s) 20

94420-20C02

Unavailable

20

MOLDING

94635-20C00

Unavailable

21

PANEL, COW CENTER (BLUE) | FOR 1LE

94421-19C01-1LE

Unavailable

21

PANEL, COW CENTER (BLACK) | FOR 36X

94421-19C01-33J

Unavailable

22

COVER, COW UNDER RH (BLUE) | FOR 1LE

94471-19C00-1LE

Unavailable

22

COVER, COW UNDER RH (BLACK) | FOR 36X

94471-19C00-33J

Unavailable

23

COVER, COW UNDER LH (BLUE) | FOR 1LE

94481-19C00-1LE

Unavailable

23

COVER, COW UNDER LH (BLACK) | FOR 36X

94481-19C00-33J

Unavailable

24

COVER, COW UNDER FRONT (BLACK

94475-19C01

Unavailable

25

BALANCER, COW SHEET RH

94573-20C00

Unavailable

25

BALANCER, COW SHEET LH

94583-20C00

Unavailable

26

SHEET, COW BALANCER RH

94574-20C00

Unavailable

26

SHEET, COW BALANCER LH

94584-20C00

Unavailable

26

SHEET, COW BALANCER LH | CALIFORNIA ONLY

94584-20C10

Unavailable

27

CUSHION, COWLING RH

94576-20C00

Unavailable

27

CUSHION, COWLING LH

94586-20C00

Unavailable

28

SCREEN SET, WIND

94610-20C60

Unavailable

29

MOLDING | ->94631-18D01L:800->700 This part replaces 94631-41C01.

94631-18D01

Unavailable

30

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

31

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

32

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

33

NO DESCRIPTION AVAILABLE This part replaces 68332-20C10.

68332-20C11

Unavailable

34

LABEL, REAR SHOCK ABSORBER

68341-20C00

Unavailable

35

REFER TO FIG.43E (I- 6) FOR

SPECIAL NOTE

Unavailable
