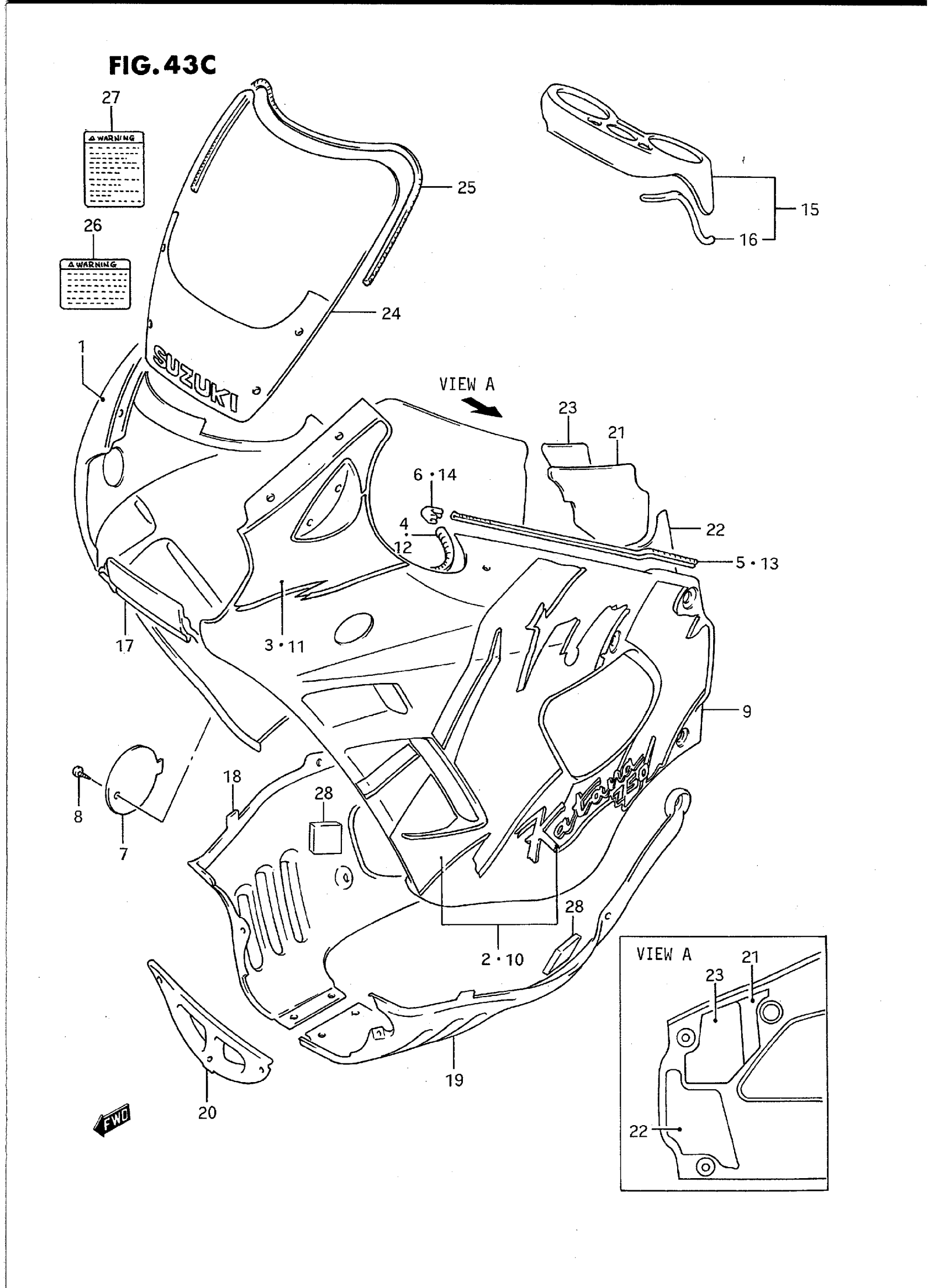

Suzuki GSX750FT (1996) COWLING BODY (MODEL N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94401-21C40-12F.

94430-19C02-12F

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 8 This part replaces 94401-21C40-1MW.

94401-21C41-1MW

Unavailable

2

TAPE SET, RH | FOR 12F

68680-20C30-K57

Unavailable

2

TAPE SET, RH | FOR 1MW

68680-20C30-K54

Unavailable

3

TAPE, RH | FOR 12F

68685-20C50-K57

Unavailable

3

TAPE, RH | FOR 1MW

68685-20C50-K54

Unavailable

3A

COVER, METER SIDE RH (BLUE) | FOR 12F

94433-19C01-12F

Unavailable

3B

COVER, METER SIDE RH (RED) | FOR 1MW

94433-19C01-1MW

Unavailable

3C

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

4

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

5

MOLDING

94635-19C00

$8.53

6

JOINT

94438-19C00

Unavailable

7

LID, OIL (BLUE) | FOR 12F

94435-19C01-12F

Unavailable

7

LED, OIL (RED) | FOR 1MW

94435-19C01-1MW

Unavailable

8

SCREW

09139-06030

$3.70

9

NO DESCRIPTION AVAILABLE This part replaces 94402-21C40-12F.

94440-19C02-12F

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 94402-21C40-1MW.

94402-21C41-1MW

Unavailable

9

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 94402-21C50-12F.

94402-21C51-12F

Unavailable

9

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 10 - 14 This part replaces 94402-21C50-1MW.

94402-21C51-1MW

Unavailable

10

TAPE SET, LH | FOR 12F

68690-20C30-K57

Unavailable

10

TAPE SET, LH | FOR 1MW

68690-20C30-K54

Unavailable

10

TAPE SET, LH | CALIFORNIA ONLY,FOR 12F

68690-20C40-K57

Unavailable

10

TAPE SET, LH | CALIFORNIA ONLY,FOR 1MW

68690-20C40-K54

Unavailable

11

TAPE, LH | FOR 12F

68695-20C50-K57

Unavailable

11

TAPE, LH | FOR 1MW

68695-20C50-K54

Unavailable

11A

COVER, METER SIDE LH (BLUE) | FOR 12F

94443-19C01-12F

Unavailable

11B

COVER, METER SIDE LH (RED) | FOR 1MW

94443-19C01-1MW

Unavailable

11C

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

12

MOLDING This part replaces 94631-19C10.

94631-49310

Unavailable

13

MOLDING

94635-19C00

$8.53

14

JOINT

94438-19C00

Unavailable

15

COVER, METER | Includes Item(s) 16 This part replaces 94420-20C00.

94420-20C02

Unavailable

16

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

$8.53

17

PANEL, COW CENTER (BLUE) | FOR 12F

94421-19C01-12F

Unavailable

17

PANEL, COW CENTER (RED) | FOR 1MW

94421-19C01-1MW

Unavailable

18

COVER, COW UNDER RH (BLUE) | FOR 12F

94471-19C00-12F

Unavailable

18

COVER, COW UNDER RH (RED) | FOR 1MW

94471-19C00-1MW

Unavailable

19

COVER, COW UNDER LH (BLUE) | FOR 12F

94481-19C00-12F

Unavailable

19

COVER, COW UNDER LH (RED) | FOR 1MW

94481-19C00-1MW

Unavailable

20

COVER, COW UNDER FRONT (BLACK | FOR 12F,1MW

94475-19C01

Unavailable

21

BALANCER, COW SHEET RH

94573-20C00

Unavailable

21

BALANCER, COW SHEET LH

94583-20C00

Unavailable

22

SHEET, COW BALANCER RH

94574-20C00

Unavailable

22

SHEET, COW BALANCER LH

94584-20C00

Unavailable

22

SHEET, COW BALANCER LH | CALIFORNIA ONLY

94584-20C10

Unavailable

23

CUSHION, COWLING RH

94576-20C00

Unavailable

23

CUSHION, COWLING LH

94586-20C00

Unavailable

24

SCREEN, WINDOW This part replaces 94610-20C20.

94610-20C60

Unavailable

25

MOLDING This part replaces 94631-20C20.

94631-18D01

Unavailable

26

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

27

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

28

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

29

NO DESCRIPTION AVAILABLE This part replaces 68332-20C10.

68332-20C11

Unavailable

30

LABEL, REAR SHOCK ABSORBER

68341-20C00

Unavailable

31

REFER TO FIG.43D (I- 4) FOR

SPECIAL NOTE

Unavailable
