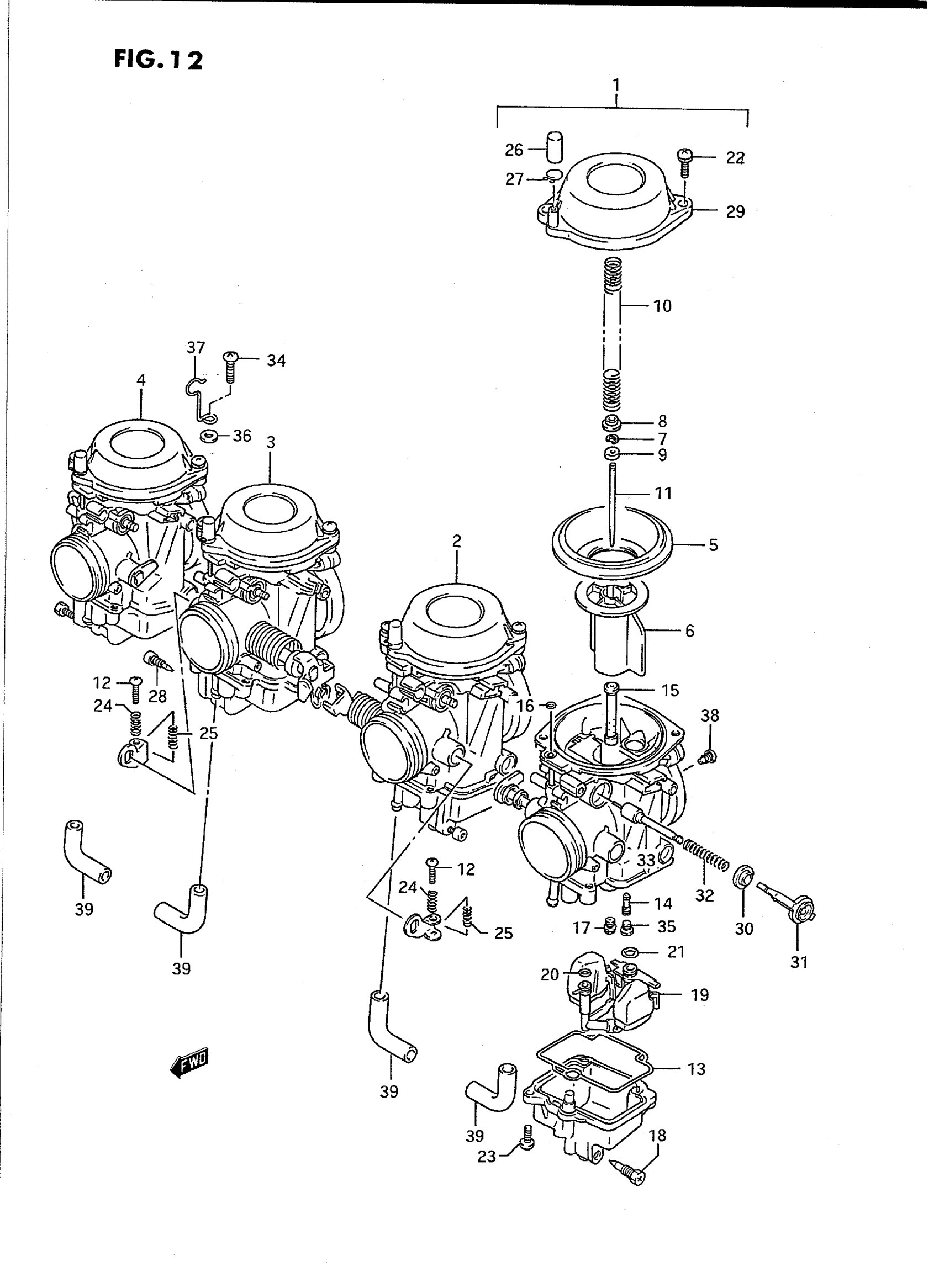

Find the part on the Carburetor diagram for your 1996 Suzuki GSX750FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX750FT Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, LH This part replaces 13201-20C30.

13201-20C31

1
Out of stock

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13201-20C40.

13201-20C41

1
Out of stock

2

CARBURETOR ASSY, ML This part replaces 13202-20C30.

13202-20C31

1
Out of stock

2

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13202-20C40.

13202-20C41

1
Out of stock

3

CARBURETOR ASSY, MR This part replaces 13203-20C30.

13203-20C31

1
Out of stock

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13203-20C40.

13203-20C41

1
Out of stock

4

CARBURETOR ASSY, RH This part replaces 13204-20C30.

13204-20C31

1
Out of stock

4

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 5 - 39 This part replaces 13204-20C40.

13204-20C41

1
Out of stock

6

VALVE, PISTON

13501-17C00

4
Out of stock

7

E RING

13394-31210

4
Out of stock

8

RING

13382-42A00

4

$4.46

In stock

9

RING

13387-44030

4
Out of stock

10

SPRING

13417-42A00

4
Out of stock

11

NEEDLE, JET (5EZ62-1)

13383-20C10

4
Out of stock

11

NEEDLE, JET (5EZ63-1) | CALIFORNIA ONLY

13383-20C20

4
Out of stock

12

SCREW | ML:2,MR:1

13267-44B00

3
Out of stock

13

GASKET, FLOAT CHAMBER

13258-44B00

4
Out of stock

14

JET, PILOT (32.5)

09492-32006

4

$12.30

In stock

15

JET, NEEDLE (Y-1M) This part replaces 09494-00633.

09494-00875

4
Out of stock

16

O RING

13509-17C00

4
Out of stock

17

JET, MAIN (105) | LH,ML,RH

09491-21016

3
Out of stock

17

JET, MAIN (110) | MR

09491-22016

1
Out of stock

18

SCREW, DRAIN | LH,RH

13247-24500

2
Out of stock

19

FLOAT/NEEDLE VA This part replaces 13250-20C00.

13250-20C10

4
Out of stock

20

.O RING

13374-46710

4
Out of stock

21

4

$5.97

In stock

22

SCREW | LH,ML,RH:2,MR:1MODEL K/L/M/N/P This part replaces 13602-34390.

02112-7516A

7
Out of stock

22

SCREW | LH,ML,RH:2,MR:1MODEL R/S/T This part replaces 02112-75163.

02112-7516A

7
Out of stock

23

SCREW | MODEL K/L/M/N/P This part replaces 13602-05128.

02112-05127

8
Out of stock

23

SCREW | MODEL R/S/T

02112-05127

8
Out of stock

24

SPRING | ML:2,MR:1

13271-44B00

3
Out of stock

25

SPRING | ML;2,MR:1

13268-17C10

3
Out of stock

26

CAP

13508-17C00

4
Out of stock

27

CLIP | MODEL R/S/T

13671-05A40

4

$3.81

In stock

29

COVER, DIAPHRAGM

13502-17C00

4
Out of stock

30

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

4
Out of stock

31

HOLDER

13418-17C10

4
Out of stock

32

SPRING

13417-09110

4
Out of stock

33

PLUNGER ASSY

13411-20C00

4
Out of stock

34

SCREW | MR

02112-05164

1
Out of stock

35

PLUG

13357-34C00

4
Out of stock

37

CLIP | MR

13671-20C20

1
Out of stock

38

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

4
Out of stock

38

JET, PILOT AIR (1.2) | CALIFORNIA ONLY

09493-24007

4
Out of stock

39

HOSE | CALIFORNIA ONLYMODEL K/L/M/N/P/R/S This part replaces 13684-48B00.

13684-48B11

4
Out of stock

39

HOSE | CALIFORNIA ONLYMODEL T This part replaces 13684-48B10.

13684-48B11

4
Out of stock
