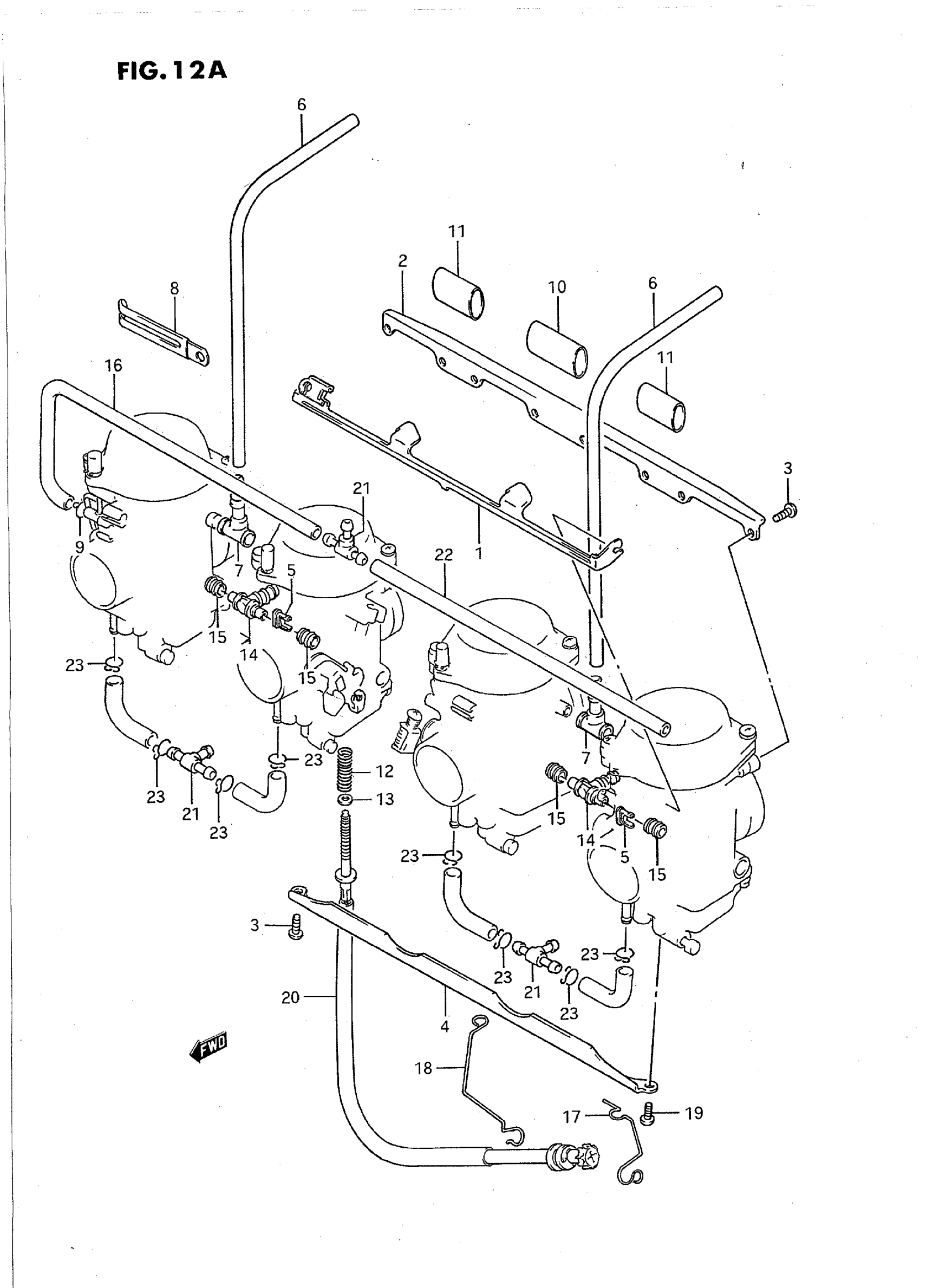

Suzuki GSX750FT (1996) CARBURETOR FITTINGS Diagram

#

Description
Price

1

LEVER

13413-20C00

Unavailable

2

PLATE

13628-17C10

Unavailable

3

SCREW | MODEL K/L/M/N/P This part replaces 13602-05128.

02112-05127

$1.97

3

SCREW | MODEL R/S/T

02112-05127

$1.97

4

PLATE

13628-17C00

Unavailable

5

HOLDER

13439-17C00

$10.62

6

HOSE(7X10.2X600 | MODEL K/L/M/N/P This part replaces 13684-20C20.

09352-70104-600

$5.63

6

HOSE(7X10.2X600 | MODEL R/SL:600->550 This part replaces 09352-70103-600.

09352-70104-600

$5.63

7

HOSE

13684-20C10

$5.56

8

CLAMP(L:80) | MODEL K/L/M/N/P This part replaces 13671-05A20.

09404-06036

$1.74

8

CLAMP(L:80) | MODEL R/S/T This part replaces 09404-06433.

09404-06036

$1.74

9

CLIP | MODEL K/L/M/N/P This part replaces 13671-05A30.

09401-08410

$1.84

9

CLIP | MODEL R/S/T

09401-08410

$1.84

10

HOSE | MODEL K/L/M/N/P This part replaces 13684-17C00.

13684-43440

Unavailable

10

HOSE | MODEL R/S/T

13684-43440

Unavailable

11

HOSE | MODEL K/L/M/N/P This part replaces 13684-17C10.

13684-43440

Unavailable

11

HOSE | MODEL R/S/T

13684-43440

Unavailable

12

SPRING | MODEL K/L/M/N/P/R This part replaces 13268-43410.

13375-14D10

$7.05

12

SPRING | MODEL S/T

13375-14D10

$7.05

13

WASHER

13427-38300

$1.92

14

NIPPLE

13685-44B00

$11.37

15

SEAL

13673-44B00

$4.60

16

HOSE (L:380) | CALIFORNIA ONLY

13684-20C00

Unavailable

17

CLIP

13671-20C00

Unavailable

18

CLIP

13671-20C10

$15.98

19

SCREW

02112-05167

$1.97

20

ADJUSTER

13279-20C00

Unavailable

21

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$12.15

22

.HOSE | CALIFORNIA ONLYMODEL K/L/M/N/P This part replaces 13687-17C00.

09352-50006-600

$7.48

22

.HOSE | CALIFORNIA ONLYMODEL R/S/T L:600->175 This part replaces 09352-50903-600.

09352-50006-600

$7.48

23

CLIP | CALIFORNIA ONLYMODEL K/L/M/N/P This part replaces 13671-48B10.

09401-10401

$1.49

23

CLIP | CALIFORNIA ONLY,MODEL R/S/T This part replaces 09401-10410.

09401-10401

$1.49
