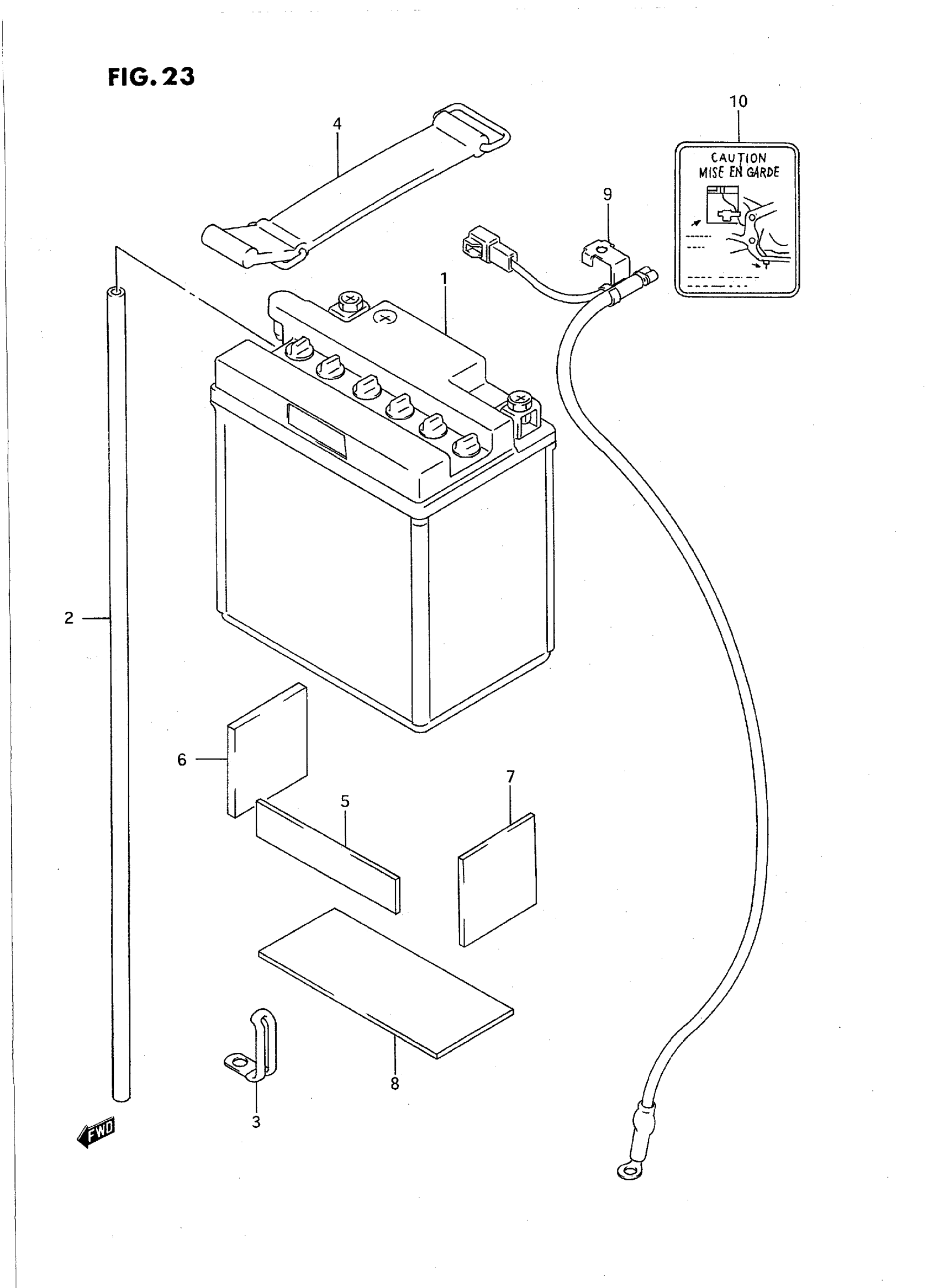

Suzuki GSX750FT (1996) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,14AH) This part replaces 33610-05A30.

33610-05A10

$95.65

2

HOSE,BATTERY EX | MODEL K/L/M/N This part replaces 33680-31003.

33680-16A11

$6.78

2

HOSE,BATTERY EX | MODEL P/R/S/T This part replaces 33680-16A10.

33680-16A11

$6.78

3

CLAMP This part replaces 09404-06606.

09404-06039

$1.74

4

BAND, BATTERY

09462-00081

Unavailable

5

PROTECTOR | CUT AS REQUIRED PROFILE(20X90)

33651-37000

$4.48

6

PROTECTOR (50X50X5)

33652-20C00

$2.99

7

PROTECTOR | CUT AS REQUIRED PROFILE(30X50)

33651-37000

$4.48

8

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

$4.48

9

LEAD WIRE, BATTERY (-) This part replaces 33860-19C00.

33860-44B01

Unavailable

10

PLATE, BATTERY CAUTION

33690-19C10

Unavailable
