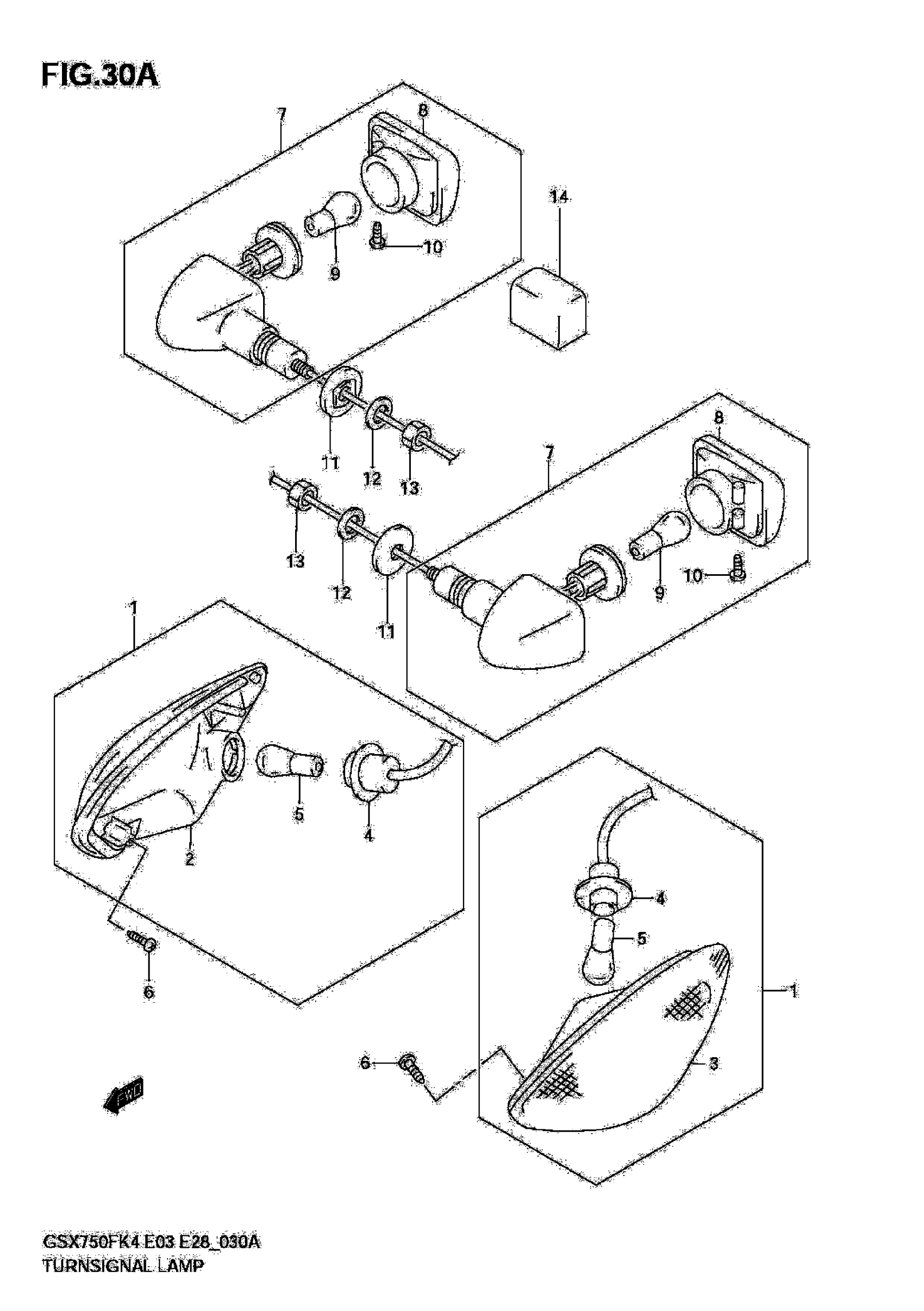

Suzuki GSX750FK4 (2006) TURN SIGNAL LAMP (MODEL K6) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-08F10

$103.85

1

LAMP ASSY, FRONT TURN LH

35602-08F10

Unavailable

2

LAMP UNIT, RH

35610-08F10

$70.52

3

LAMP UNIT, LH

35630-08F10

$69.22

4

SOCKET & CORD, RH

35618-08F10

Unavailable

4

SOCKET & CORD, LH

35638-08F10

Unavailable

5

BULB (12V,21W) | FOR AMBER

09471-12186

$12.66

6

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

7

LAMP ASSY, REAR TURNSIGNAL RH

35603-24F30

$118.48

7

LAMP ASSY, REAR TURNSIGNAL LH

35604-24F30

$131.13

8

LAMP UNIT

35610-24F30

$40.87

9

BULB (12V,21W) | FOR AMBER

09471-12186

$12.66

10

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

11

SPACER

35695-17C00

$4.03

12

WASHER (10.5X30X2.3)

09160-10501

$2.33

13

NUT This part replaces 08310-00103.

08310-0010A

$1.84

14

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
