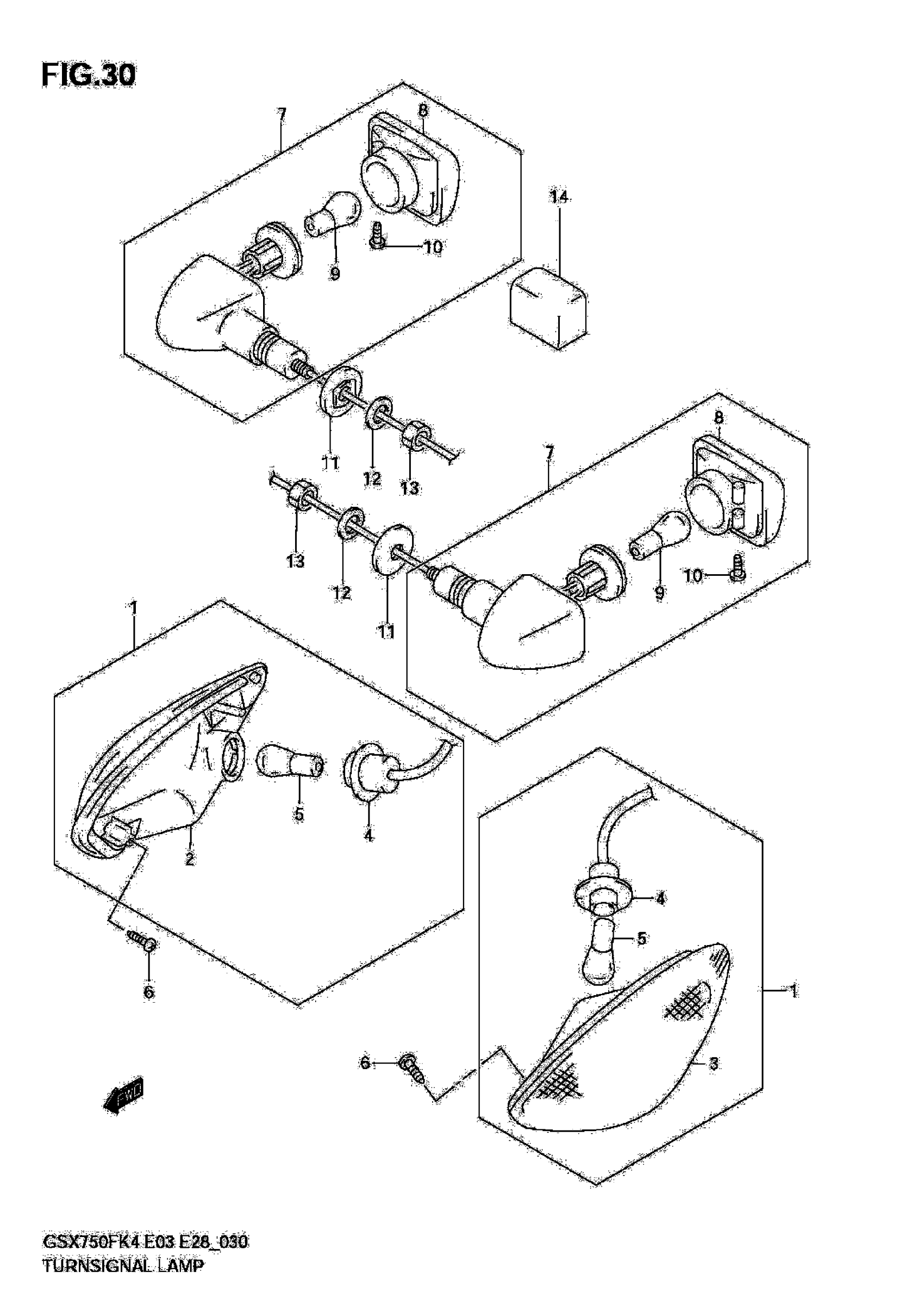

Suzuki GSX750FK4 (2006) TURN SIGNAL LAMP (MODEL K4/K5) Diagram

LAMP ASSY, FRONT TURN RH

35601-08F00

$84.73

LAMP ASSY, FRONT TURN LH

35602-08F00

$84.73

LAMP UNIT, RH

35610-08F00

$59.08

LAMP UNIT, LH

35630-08F00

$58.00

SOCKET & CORD

35618-08F00

Unavailable

BULB (12V,21W)

09471-12045

$3.27

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

LAMP ASSY, REAR TURNSIGNAL RH

35603-33E30

$111.78

LAMP ASSY, REAR TURNSIGNAL LH

35604-33E30

$111.78

LAMP UNIT

35610-33E00

$32.75

BULB (12V,21W)

09471-12045

$3.27

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

SPACER

35695-17C00

$4.03

WASHER (10.5X30X2.3)

09160-10501

$2.33

NUT This part replaces 08310-00103.

08310-0010A

$1.84

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
