2006 Suzuki GSX750FK4 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2006 Suzuki GSX750FK4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

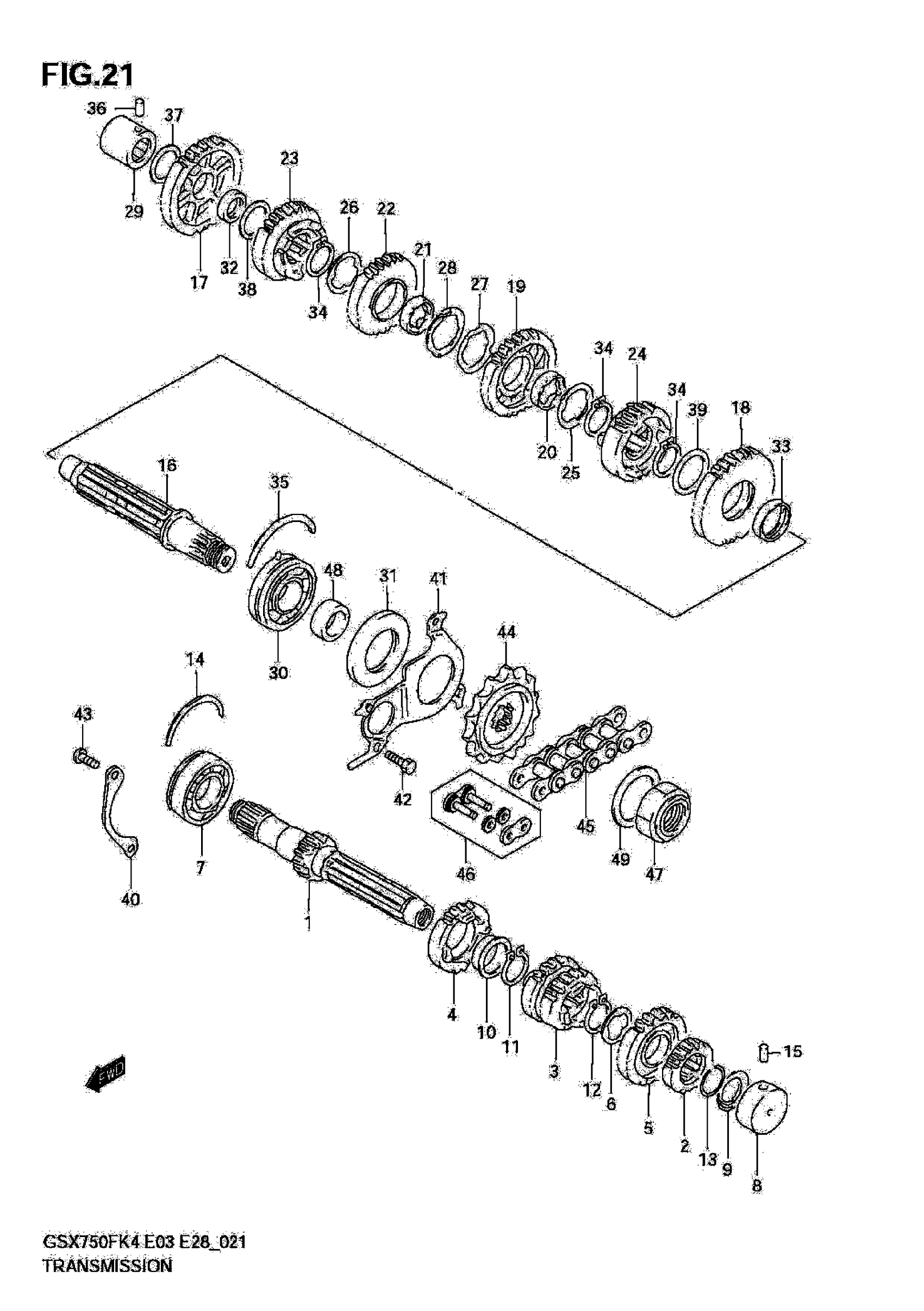

2006 Suzuki GSX750FK4 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, CNTR (NT:12)

24121-19C01

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24221-27A01

1
Out of stock

3

GEAR, 3/4TH DRIVE (NT:17/20)

24231-27A00

1
Out of stock

4

GEAR, 5TH DRIVE (NT:22)

24251-27A01

1
Out of stock

5

GEAR, 6TH DRIVE (NT:21)

24261-17C02

1
Out of stock

6

1

$4.02

In stock

9

1

$6.31

In stock

10

BUSH, 5TH DRIVE GEAR

24322-19F00

1

$26.85

In stock

11

SNAP RING

09380-25003

1
Out of stock

12

SNAP RING

09380-25003

1
Out of stock

13

CIRCLIP, 2ND GEAR

09380-25013

1

$4.53

In stock

14

C RING, CNTR BRG, RH

09390-62012

1

$7.22

In stock

15

PIN, CNTR BRG, LH

04221-07129

1

$2.03

In stock

16

SHAFT, DRIVE

24131-20C31

1
Out of stock

17

GEAR, 1ST DRIVEN (NT:37)

24311-19C10

1
Out of stock

18

GEAR, 2ND DRIVEN (NT:33)

24321-20C00

1
Out of stock

19

GEAR, 3RD DRIVEN (NT:28)

24331-27A00

1
Out of stock

20

BUSH, 3RD DRIVEN

24332-27A00

1
Out of stock

21

BUSH, 4TH DRIVEN

24332-27A00

1
Out of stock

22

GEAR, 4TH DRIVEN (NT:28)

24341-27A01

1
Out of stock

23

GEAR, 5TH DRIVEN (NT:27)

24351-27A00

1
Out of stock

24

GEAR, 6TH DRIVEN (NT:23)

24361-20C01

1
Out of stock

25

1

$5.00

In stock

26

1

$5.00

In stock

27

1

$5.17

In stock

28

1

$4.18

In stock

29

BEARING, DRIVE SHAFT RH | 20X34X20

09263-20040

1
Out of stock

30

1

$169.90

In stock

31

1

$12.21

In stock

32

BUSH, 1ST DRIVEN GEAR

09300-22008

1

$16.03

In stock

33

BUSH, 2ND DRIVEN GEAR

09300-28003

1
Out of stock

34

3

$2.67

In stock

35

C RING, DRIVE BRG, LH

09390-62012

1

$7.22

In stock

36

PIN, DRIVE SHAFT BRG, RH

04221-07209

1
Out of stock

37

WASHER, 1ST, RH (20X34X1.0)

09181-20251

1
Out of stock

38

1

$3.97

In stock

39

1

$5.17

In stock

40

RETAINER, CNTR SHAFT

24741-27A00

1

$11.37

In stock

41

RETAINER, DRIVE SHAFT

24751-40C01

1

$9.62

In stock

42

BOLT This part replaces 01500-06123.

01500-0612A

4
Out of stock

43

SCREW, CNTR SHAFT (6X12)

09126-06011

2
Out of stock

44

1

$99.95

In stock

45

CHAIN ASSY, (RK50MFOZ1,116LE)

27600-16G00-116

1
Out of stock

46

JOINT SET, DRIVE | OPT

27620-16G00

1
Out of stock

47

NUT, ENGINE SPROCKET

09159-20004

1
Out of stock

48

1

$21.60

In stock

49

1

$3.13

In stock
