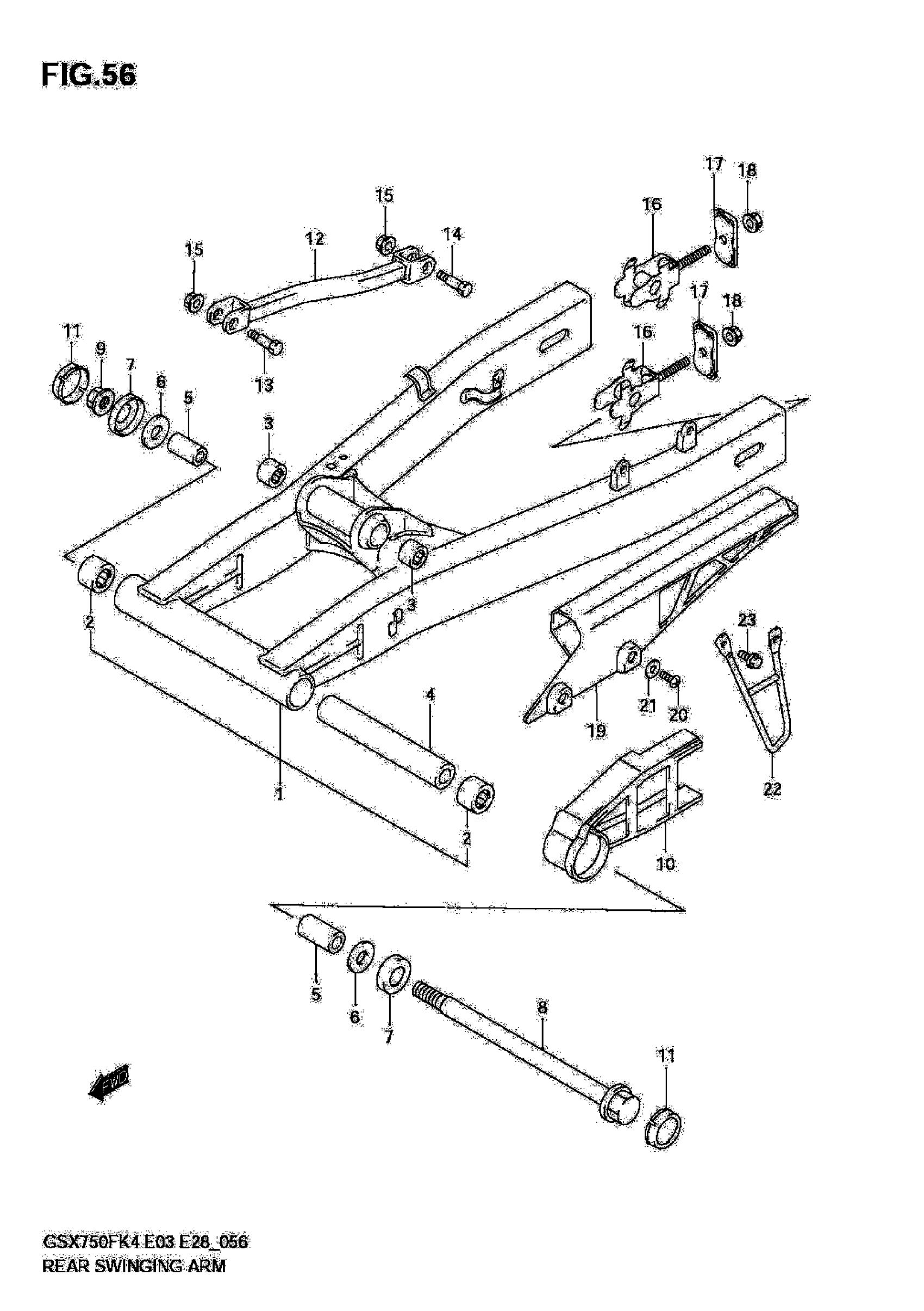

Suzuki GSX750FK4 (2006) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (SILVER)

61000-08F10-13L

Unavailable

2

BEARING, PIVOT (22X29X30)

09263-22017

$20.38

3

BEARING, ROD (20X27X23.5)

09263-20071

$23.72

4

SPACER, PIVOT CENTER

61282-08F00

Unavailable

5

SPACER, PIVOT

61251-38B00

$14.48

6

THRUST WASHER

08211-16341

$3.05

7

COVER DUST SEAL This part replaces 61262-32410.

61262-32411

$10.97

8

SHAFT, PIVOT

61211-08F00

Unavailable

9

NUT This part replaces 08319-31143.

08319-3114B

$13.98

10

BUFFER,CHAIN TO This part replaces 61273-20C00.

61273-20C01

$45.50

11

CAP, PIVOT

61222-43400

$6.95

12

TORQUE LINK, REAR

64310-08F00

Unavailable

13

BOLT, FRONT (10X39)

09111-10051

$7.38

14

BOLT, REAR (10X34)

09100-10187

$3.52

15

NUT

08319-31107

$2.73

16

ADJUSTER, CHAIN

61410-08F00

$46.52

17

PLATE, ADJUSTER GUIDE

61420-08F00

Unavailable

18

NUT

08319-31087

$2.31

19

CASE, CHAIN

61310-08F00

$102.35

20

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

21

WASHER

09169-06026

$2.00

22

GUARD, CHAIN

61390-08F00

Unavailable

23

BOLT This part replaces 01547-06123.

01547-0612B

$1.22
