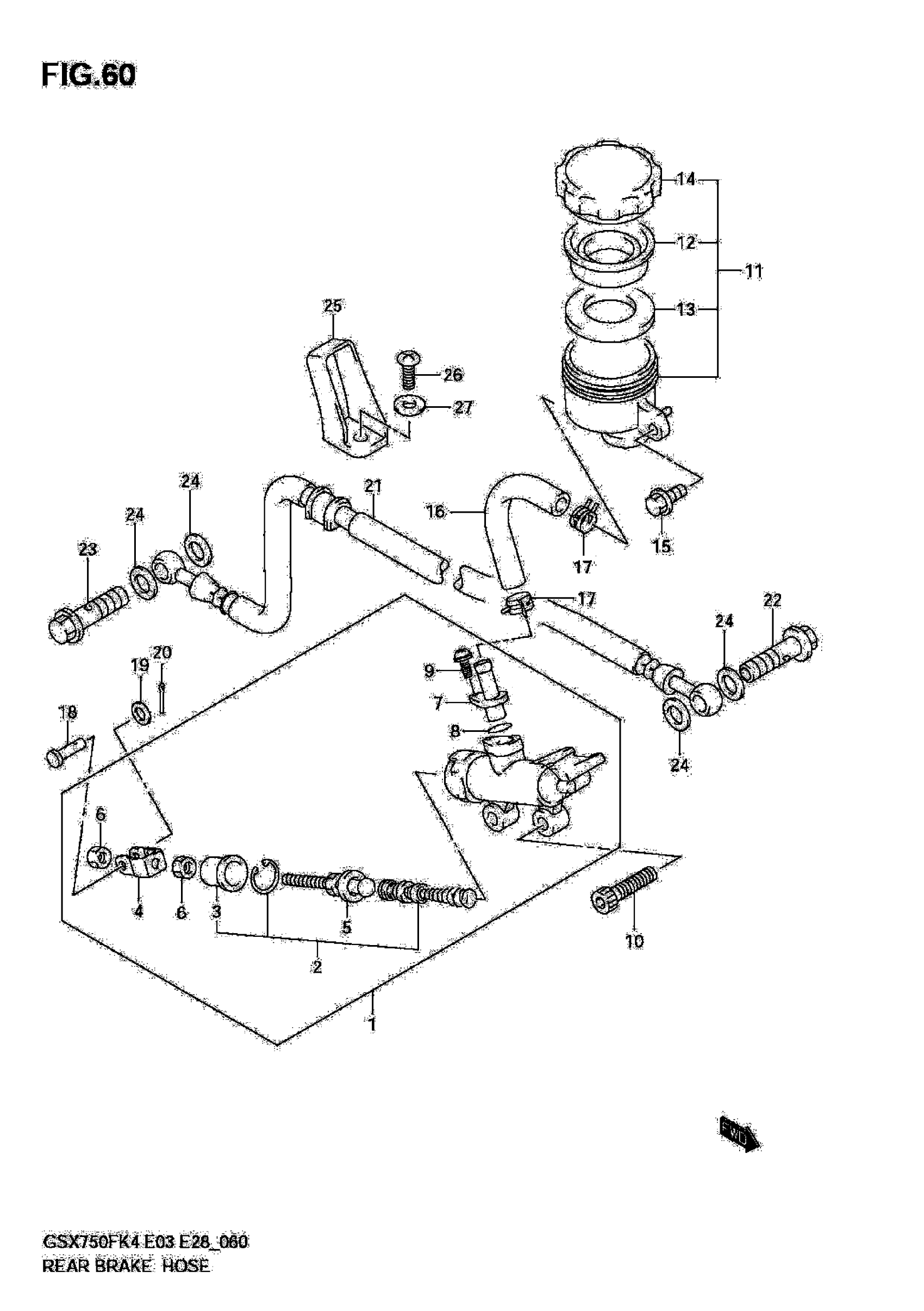

Suzuki GSX750FK4 (2006) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-08F00

$312.98

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-19A00

$16.87

5

ROD, PUSH

69670-19C00

Unavailable

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00A00

Unavailable

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.12

10

BOLT (6X16)

09106-06073

$2.39

11

TANK ASSY, RESERVOIR

69740-08F00

Unavailable

12

DIAPHRAGM

59667-18441

$10.28

13

PLATE

59668-18441

$4.52

14

CAP

59669-07D00

$31.72

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

16

HOSE, RESERVOIR TANK

69731-08F00

Unavailable

17

CLIP

09401-13417

$2.26

18

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

19

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

21

HOSE This part replaces 69480-08F00.

69480-08F02

$73.05

22

UNION This part replaces 09360-10042.

09360-10062

$6.43

23

UNION This part replaces 09360-10041.

09360-10061

$6.43

24

WASHER (10X15X1.5)

09161-10009

$1.84

25

GUIDE, REAR BRAKE

69243-06C00

Unavailable

26

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

27

WASHER

09169-06041

$2.20
