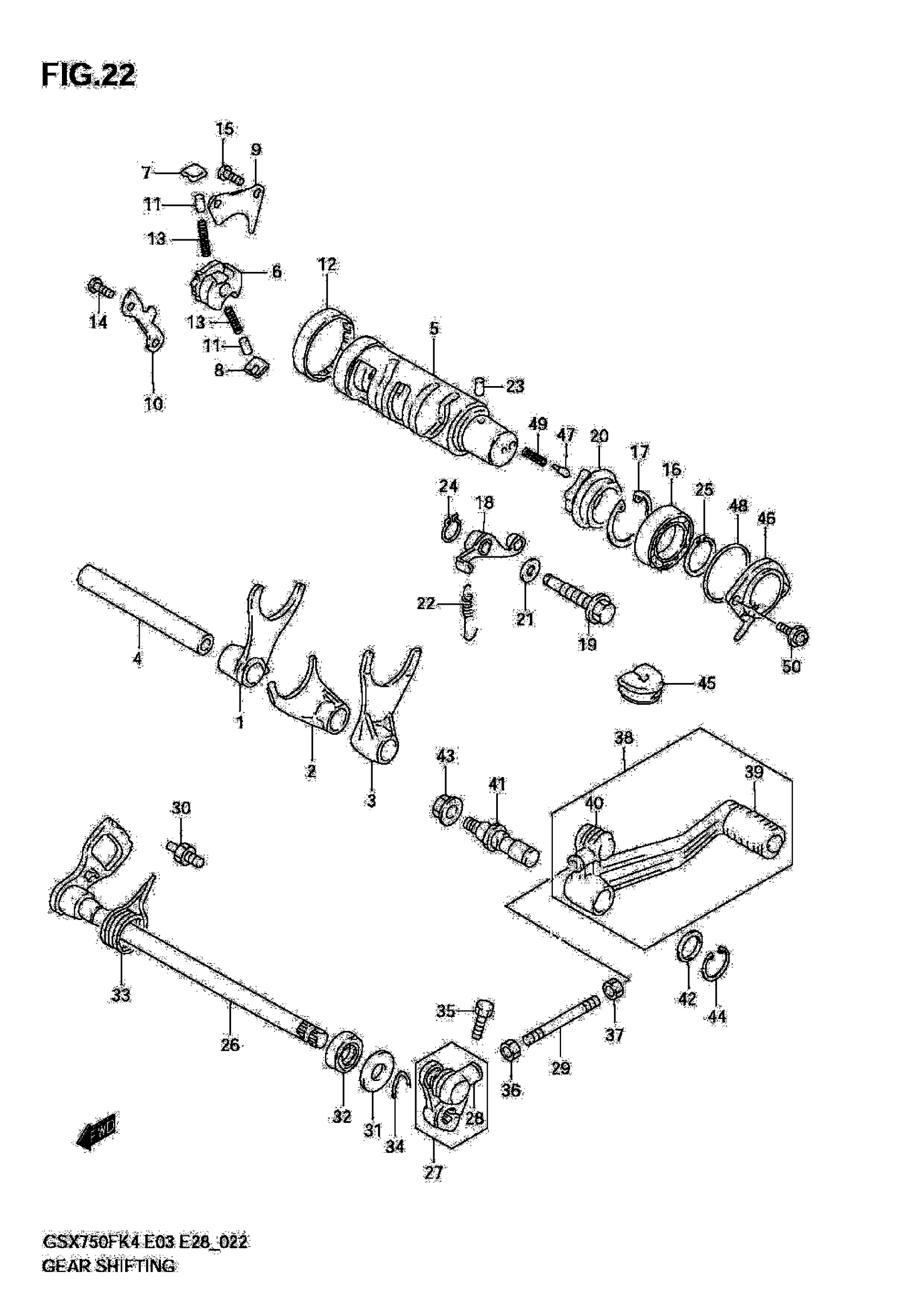

Suzuki GSX750FK4 (2006) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-27A12

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-27A01

Unavailable

3

FORK, GEAR SHIFT NO.3

25231-27A00

Unavailable

4

SHAFT, GEAR SHIFT FORK

25411-27A00

$29.25

5

CAM, GEAR SHIFT

25310-27A03

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

LIFTER,GEAR SHI This part replaces 25331-31301.

25331-31310

$8.93

10

GUIDE, CAM

25341-27A00

Unavailable

11

PIN, GEAR

09261-05003

$1.54

12

BEARING, GEAR RH (43X49X12)

09263-43001

$33.18

13

SPRING, GEAR RETURN

09440-04003

$1.54

14

SCREW, CAM GUIDE

09126-06011

$2.03

15

SCREW, POLE

09126-06011

$2.03

16

BEARING

08113-69050

$35.66

17

CIRCLIP This part replaces 08331-41426.

08331-41429

$2.41

18

STOPPER, GEAR SHIFT CAM

25350-27A00

$16.87

19

SHAFT, GEAR SHIFT STOPPER

25353-27A00

Unavailable

20

PLATE, GEAR SHIFT STOPPER

25381-38400

Unavailable

21

GASKET, GEAR SHIFT STOPPER | 10X14X3.6

09168-10002

$2.13

22

SPRING, GEAR SHIFT STOPPER

09443-09033

$7.05

23

PIN, TEAR SHIFT STOPPER

04221-04069

$2.12

24

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.78

25

CIRCLIP, SHIFT CAM STOPPER

08331-31256

$1.49

26

SHAFT, GEAR SHIFT

25510-19C01

Unavailable

27

ARM,GEAR SHIFT This part replaces 25520-47000.

25520-47021

$42.92

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

29

ROD, GEAR SHIFT LINK

25525-12C10

$8.83

30

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

31

WASHER (12.5X26X1.6) This part replaces 09160-12090.

09160-12089

$1.97

32

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

33

SPRING, GEAR SHIFT RETURN

09444-26017

$4.60

34

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

35

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

36

.NUT

08310-00067

$2.13

37

NUT, GEAR SHIFT LH

09140-06025

$2.05

38

LEVER ASSY,GEAR This part replaces 25600-19C04.

25600-19C05

$126.67

39

RUBBER, GEAR SHIFT

25652-20C00

$5.44

40

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

41

SHAFT, GEAR SHIFT LEVER

25617-20A00

$26.15

42

WASHER (12.5X20X1)

09160-12011

$1.54

43

NUT This part replaces 08316-10103.

08316-1010B

$2.66

44

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

45

GROMMET, LEAD WIRE

33885-27A01

$4.18

46

TERMINAL BASE ASSY, NEUTRAL

37720-20C00

$92.80

47

CONTACT, NEUTRAL SW

09209-05011

$2.20

48

O RING (D:2.40,ID:35.5)

09280-35006

$3.04

49

SPRING, NEUTRAL SW

09440-04010

$1.54

50

SCREW, NEUTRAL SW

09138-05015

Unavailable
