2006 Suzuki GSX750FK4 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2006 Suzuki GSX750FK4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

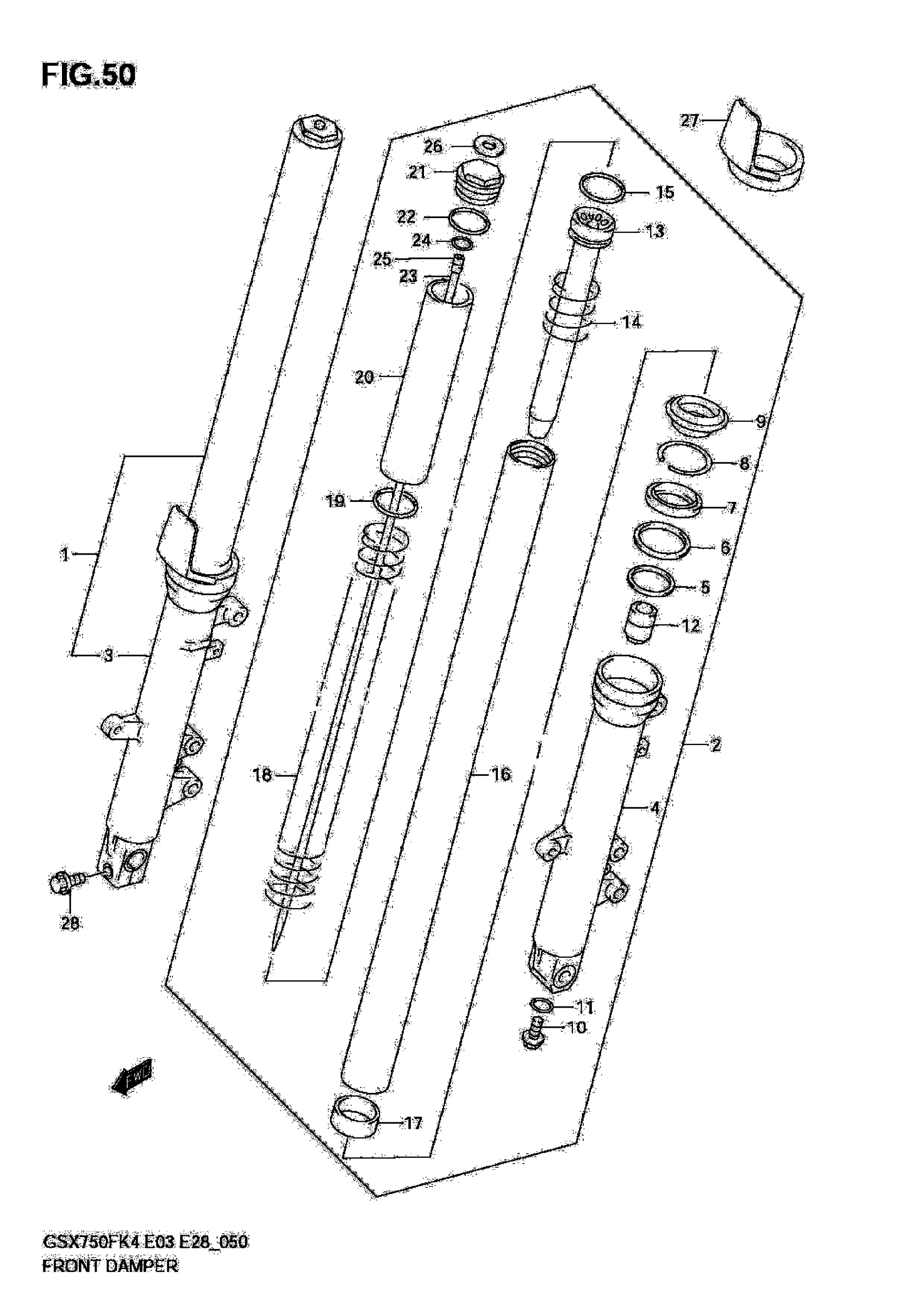

2006 Suzuki GSX750FK4 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-08FC0

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH

51104-08FC0

1
Out of stock

3

TUBE, OUTER RH

51130-08F10

1
Out of stock

4

TUBE, OUTER LH

51140-08F10

1
Out of stock

5

BUSH, GUIDE

51152-11D60

2
Out of stock

6

SPACER, SEAL

51168-38B00

2
Out of stock

7

SEAL, OIL

51153-08D00

2
Out of stock

8

RING

51556-38B00

2
Out of stock

9

SEAL, DUST

51571-47D50

2
Out of stock

10

BOLT

51147-48130

2
Out of stock

11

GASKET

51148-36011

2
Out of stock

12

PIECE, OIL LOCK

51195-10F00

2
Out of stock

13

SEAT, UNDER

51194-08FA0

2
Out of stock

14

SPRING

51177-48B31

2
Out of stock

15

RING

51196-12C00

2
Out of stock

16

TUBE, INNER

51110-08FA0

2
Out of stock

17

BUSH, SLIDE

51121-48B31

2
Out of stock

18

SPRING, FRONT

51171-08FA0

2
Out of stock

19

JOINT, SPRING

51192-19C00

2
Out of stock

20

COLLAR, SPRING

51176-19C00

2
Out of stock

21

BOLT, FORK

51351-20C20

2
Out of stock

22

.O-RING

51117-12C00

2
Out of stock

23

ROD, DAMPER

52111-08F00

2
Out of stock

24

O RING (ID:3.8,D:1.9)

09280-03002

2
Out of stock

25

RING, STOPPER (ID:6.1,D:0.6)

51169-20C20

2
Out of stock

26

LABEL, S-H

51149-20C20

2
Out of stock

27

PROTECTOR

51201-32F00

2
Out of stock

28

BOLT, RH

01550-08407

1
Out of stock
