2006 Suzuki GSX750FK4 Evapo System Diagram

← All diagrams

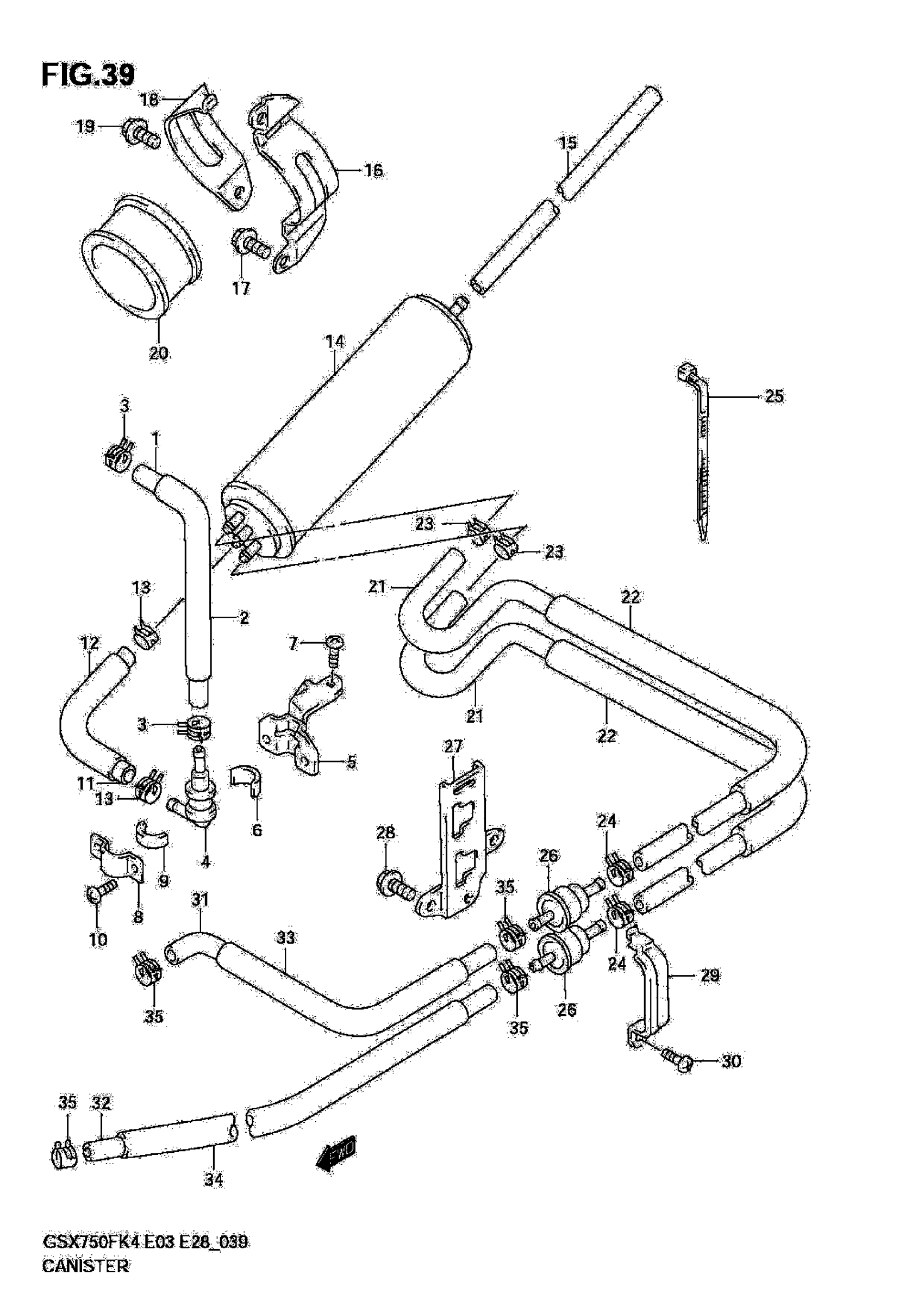

Find the part on the Evapo System diagram for your 2006 Suzuki GSX750FK4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX750FK4 Evapo System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE | L:600!540

09355-54116-600

1
Out of stock

2

PROTECTOR | L:600!450

09351-14152-600

1
Out of stock

3

CLIP

09401-11413

2
Out of stock

4

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

5

BRACKET, BREATHER VALVE

44890-08F00

1
Out of stock

6

CUSHION (10X30X2)

44894-24A00

1
Out of stock

7

SCREW This part replaces 02142-06123.

02142-0612A

1
Out of stock

8

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

9

CUSHION (10X30X2)

44894-24A00

1
Out of stock

10

2

$1.79

In stock

11

HOSE, VALVE & CANISTER

44436-08F00

1
Out of stock

12

PROTECTOR | L:600!460

09351-14152-600

1
Out of stock

13

CLIP

09401-11413

2
Out of stock

14

CANISTER ASSY CHARCOAL

17210-26E00

1
Out of stock

15

HOSE,6.5X11.5X6 | L:600!500 This part replaces 09355-70125-600.

44421-12FR0

1
Out of stock

16

BRACKET, CANISTER

44880-08F00

1
Out of stock

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

18

HOLDER, CANISTER

44882-08F00

1
Out of stock

19

SCREW This part replaces 02142-06123.

02142-0612A

1
Out of stock

20

CUSHION CANISTER

44883-26E00

1
Out of stock

21

HOSE, PURGE

44437-08F00

2
Out of stock

22

PROTECTOR | L:600!160

09351-14152-600

2
Out of stock

23

CLIP

09401-12404

2
Out of stock

24

CLIP

09401-11413

2
Out of stock

25

CLAMP

09407-11401

1
Out of stock

26

VALVE, PURGE

44250-48B00

2
Out of stock

27

BRACKET, PURGE VALVE

44885-08F00

1
Out of stock

28

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

29

HOLDER, PURGE VALVE

44884-31E00

1
Out of stock

30

SCREW This part replaces 02112-05083.

02112-0508A

1
Out of stock

31

HOSE, CARB & PURGE NO.1

44430-08F10

1
Out of stock

32

HOSE, CARB & PURGE NO.2

44430-08F20

1
Out of stock

33

PROTECTOR, NO.1 | L:600!580

09351-14152-600

1
Out of stock

34

PROTECTOR, NO.2 | L:2000!660

09351-14152-00B

2
Out of stock

35

CLIP

09401-11413

4
Out of stock
