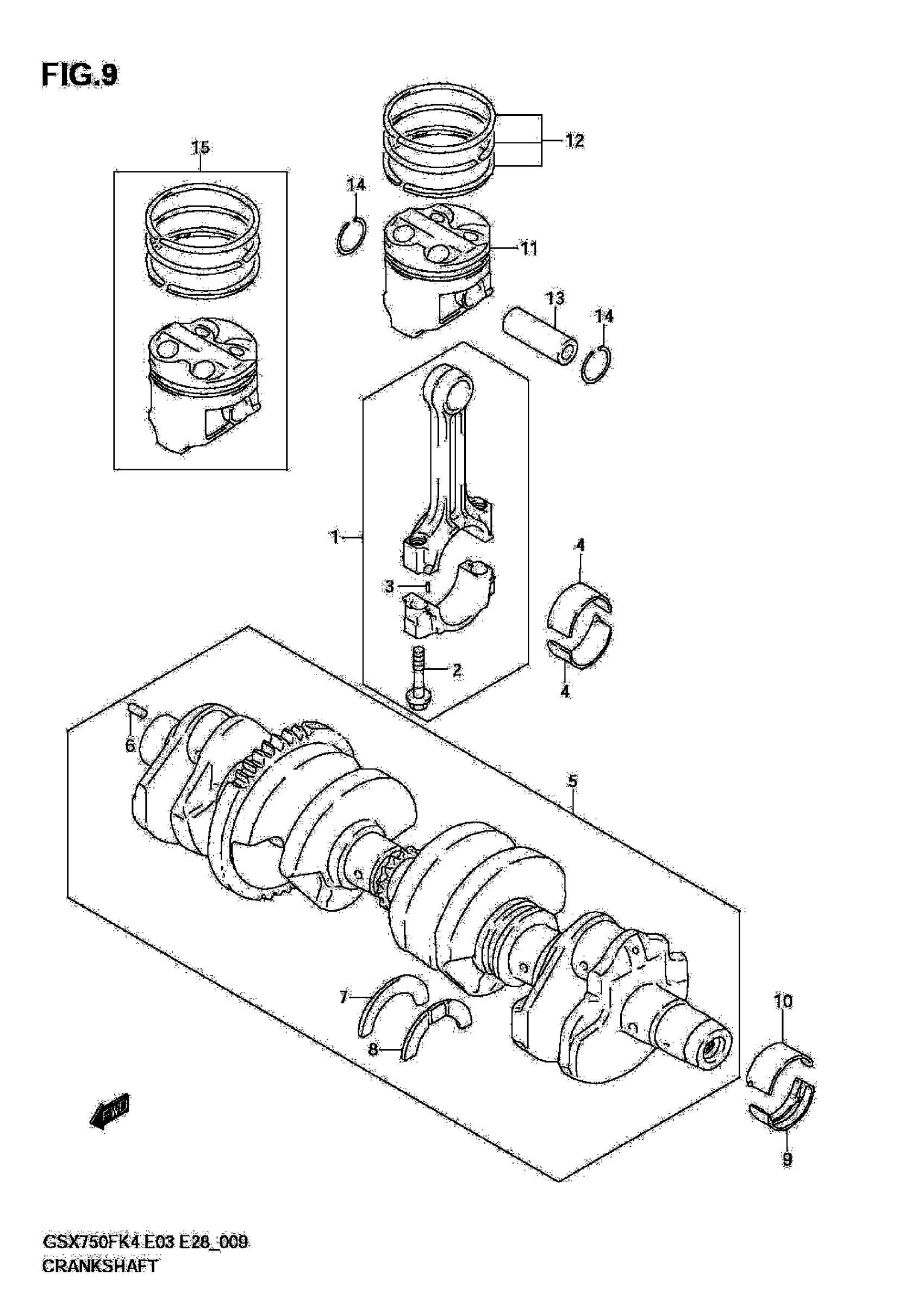

Suzuki GSX750FK4 (2006) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-17E01

Unavailable

2

BOLT

12163-27A52

Unavailable

3

PIN, CONNROD

12165-27A50

$1.54

4

BEARING, CRANK PIN (GREEN)

12164-26E00-0A0

Unavailable

4

BEARING, CRANK PIN (BLACK)

12164-26E00-0B0

$13.90

4

BEARING, CRANK PIN (BROWN)

12164-26E00-0C0

$13.90

4

BEARING, CRANK PIN (YELLOW)

12164-26E00-0D0

$13.90

5

CRANKSHAFT SET

12000-03810

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

BEARING, THRUST RH (BROWN)

12228-43414

$10.07

8

BEARING, THRUST LH (RED)

12228-43411

Unavailable

8

BEARING, THRUST LH (BLACK)

12228-43412

Unavailable

8

BEARING, THRUST LH (BLUE)

12228-43413

Unavailable

8

BEARING, THRUST LH (GREEN)

12228-43414

$10.07

8

BEARING, THRUST LH (YELLOW)

12228-43415

Unavailable

8

BEARING, THRUST LH (WHITE)

12228-43416

Unavailable

9

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-27A00-0A0

$10.59

9

BEARING, CRANKSHAFT (BLACK)

12229-27A00-0B0

$12.00

9

BEARING, CRANKSHAFT (BROWN)

12229-27A00-0C0

$12.00

9

BEARING, CRANKSHAFT (YELLOW)

12229-27A00-0D0

$12.45

10

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-27A10-0A0

$10.59

10

BEARING, CRANKSHAFT (BLACK)

12229-27A10-0B0

$12.45

10

BEARING, CRANKSHAFT (BROWN)

12229-27A10-0C0

$12.00

10

BEARING, CRANKSHAFT (YELLOW)

12229-27A10-0D0

$12.45

11

PISTON

12111-03F00-0F0

Unavailable

12

RING SET, PISTON

12140-03F00

$62.70

13

PIN, PISTON

12151-07D00

$18.43

14

CIRCLIP This part replaces 09381-18003.

09381-18005

$1.90

15

PISTON SET (OS:0.5) | OPT

12100-03F00-050

Unavailable
