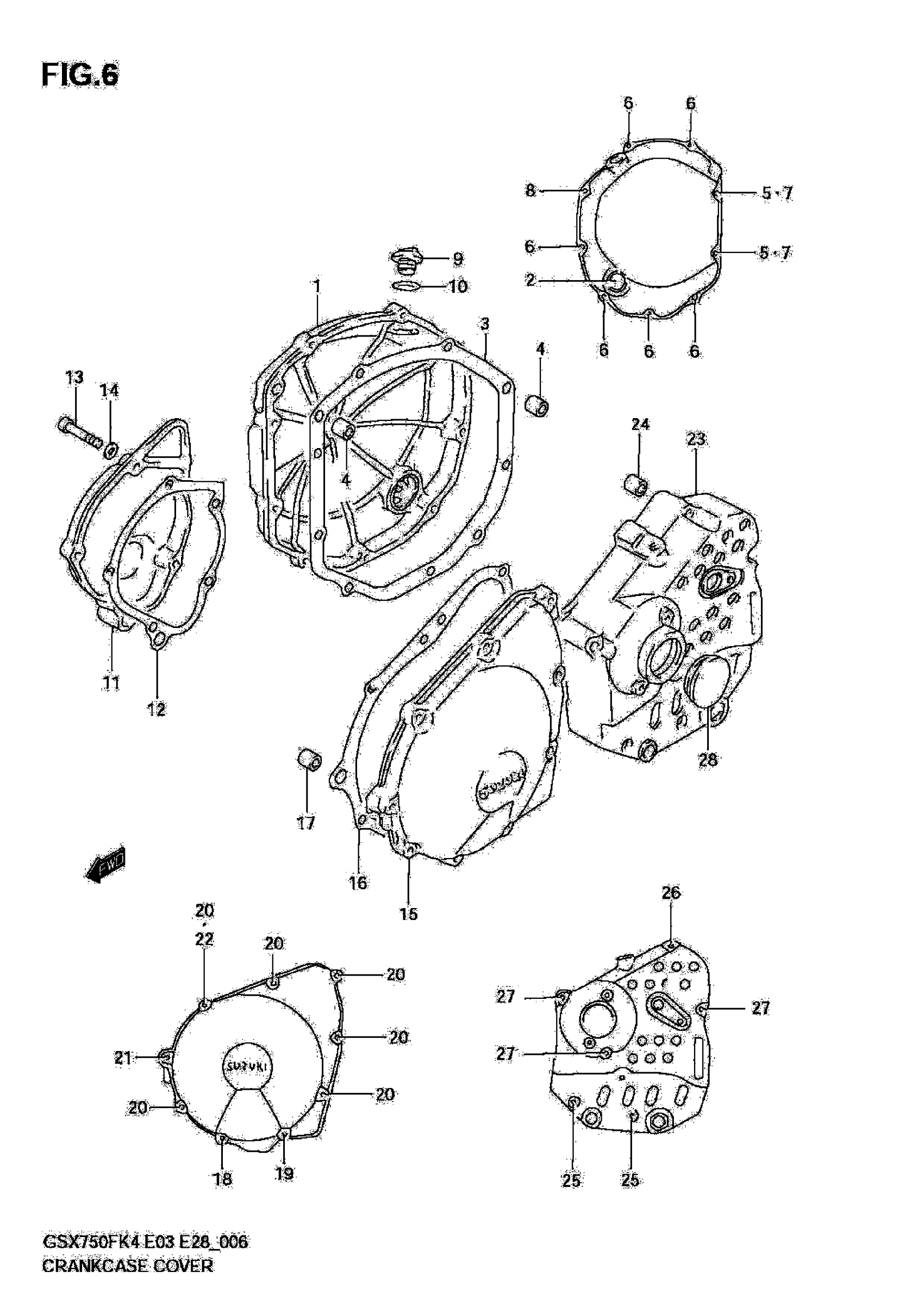

Suzuki GSX750FK4 (2006) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-26E00

$290.07

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-27A20

$14.20

4

PIN

04211-09189

$1.65

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

BOLT | MODEL K4 This part replaces 07130-06253.

07130-0625B

$3.04

6

BOLT (L:25) | MODEL K5/K6

09106-06090

$3.16

7

BOLT | MODEL K4 This part replaces 07130-06303.

07130-0630B

$3.37

7

BOLT (L:30) | MODEL K5/K6

09106-06091

Unavailable

8

BOLT | MODEL K4 This part replaces 07130-06353.

07130-0635B

$3.37

8

BOLT (L:35) | MODEL K5/K6

09106-06092

$4.25

9

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

COVER, SIGNAL GENERATOR

11381-26D11

$56.00

12

GASKET

11491-27A30

$8.40

13

BOLT (6X23) | MODEL K4

09106-06082

$2.62

13

BOLT (L:22) | MODEL K5/K6

09106-06094

$3.27

14

GASKET (5.8X13X1.2)

09168-06023

$2.35

15

COVER, STARTER GEAR

11351-26E01

$177.94

16

GASKET, GEAR COVER

11483-27A20

$11.19

17

PIN

09206-11007

$2.37

18

BOLT | MODEL K4 This part replaces 07130-06163.

07130-0616B

$2.39

18

BOLT (L:16) | MODEL K5/K6

09106-06115

$3.85

19

BOLT, FRONT BRG HOUSING | MODEL K4 This part replaces 07130-06203.

07130-0620B

$3.05

19

BOLT (L:20) | MODEL K5/K6

09106-06116

$3.75

20

BOLT | MODEL K4 This part replaces 07130-06253.

07130-0625B

$3.04

20

BOLT (L:25) | MODEL K5/K6

09106-06090

$3.16

21

BOLT, STATOR | MODEL K4 This part replaces 07130-06403.

07130-0640B

$3.38

21

BOLT (L:40) | MODEL K5/K6

09106-06093

$4.25

22

GASKET (5.8X13X1.2)

09168-06023

$2.35

23

COVER, ENGINE SPROCKET

11361-19E00

$163.68

24

PIN

04211-09129

$1.65

25

BOLT | MODEL K4 This part replaces 07130-06353.

07130-0635B

$3.37

25

BOLT (L:35) | MODEL K5/K6

09106-06092

$4.25

26

BOLT | MODEL K4 E3,E28 This part replaces 07130-06503.

07130-0650B

$4.10

26

BOLT | MODEL K4 E33 This part replaces 07130-06703.

07130-0670B

$3.89

26

BOLT (L:50) | MODEL K5/K6 E3,E28

09106-06109

Unavailable

26

BOLT (L:70) | MODEL K5/K6 E33

09106-06112

$4.68

27

BOLT This part replaces 07130-06653.

07130-0665B

$3.79

27

BOLT (L:65) | MODEL K5/K6

09106-06111

$4.68

28

CAP, CLUTCH RELEASE

09250-30003

$3.89
