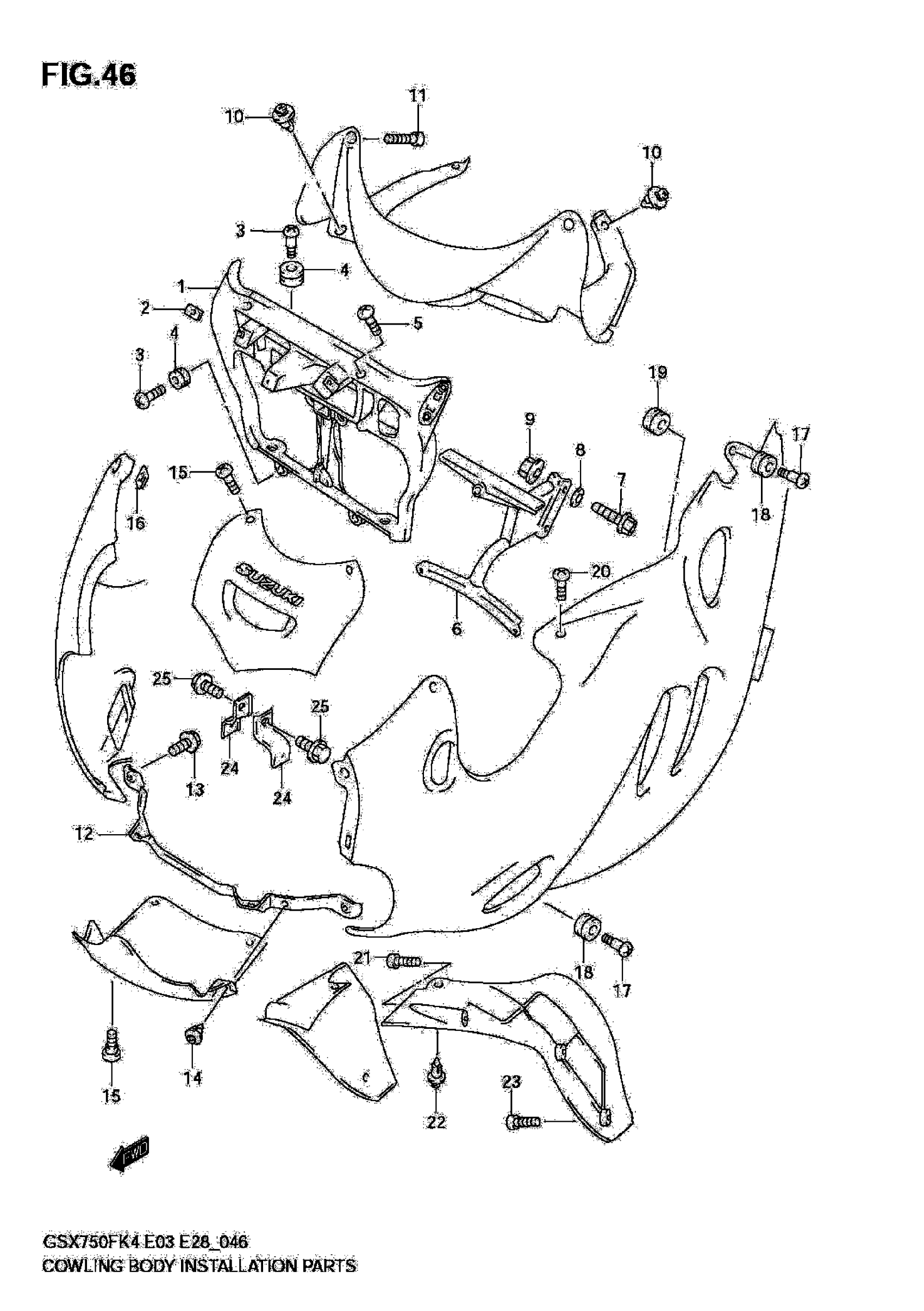

Suzuki GSX750FK4 (2006) COWLING BODY INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE, COWLING FRONT

94520-08F00

$304.17

2

NUT COWL

94484-24F00

$4.03

3

SCREW

09139-06126

$4.04

4

CUSHION

09320-09016

$1.97

5

SCREW This part replaces 02142-05163.

02142-0516A

$1.49

6

BRACE, COWLING REAR

94510-08F10

$117.13

7

BOLT

09103-08222

$2.85

8

WASHER

09164-08020

$2.06

9

NUT This part replaces 08316-10083.

08316-1008B

$2.66

10

CLIP, METER PANEL (BLACK)

09409-08308-5ES

$1.97

11

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

12

BRACKET, CENTER LOWER

94540-08F00

Unavailable

13

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

14

CLIP (BLACK)

09409-06322-5PK

$3.10

15

SCREW, CENTER PANEL

09139-05042

$2.90

16

NUT, METER PANEL UPPER

09148-05038

$1.97

17

SCREW, SIDE COWLING

09139-06126

$4.04

18

CUSHION

09320-09016

$1.97

19

CUSHION, CENTER

09320-08018

$3.04

20

SCREW, METER PANEL REAR

09139-05054

$4.24

21

SCREW, INNER PANEL UPPER

09136-04003

$3.15

22

CLIP, INNER PANEL

09409-08308-5ES

$1.97

23

SCREW This part replaces 02142-15163.

02142-1516A

$1.84

24

BRACKET, SIDE LOWER

94530-08F00

Unavailable

25

BOLT

09116-06109

$3.00
