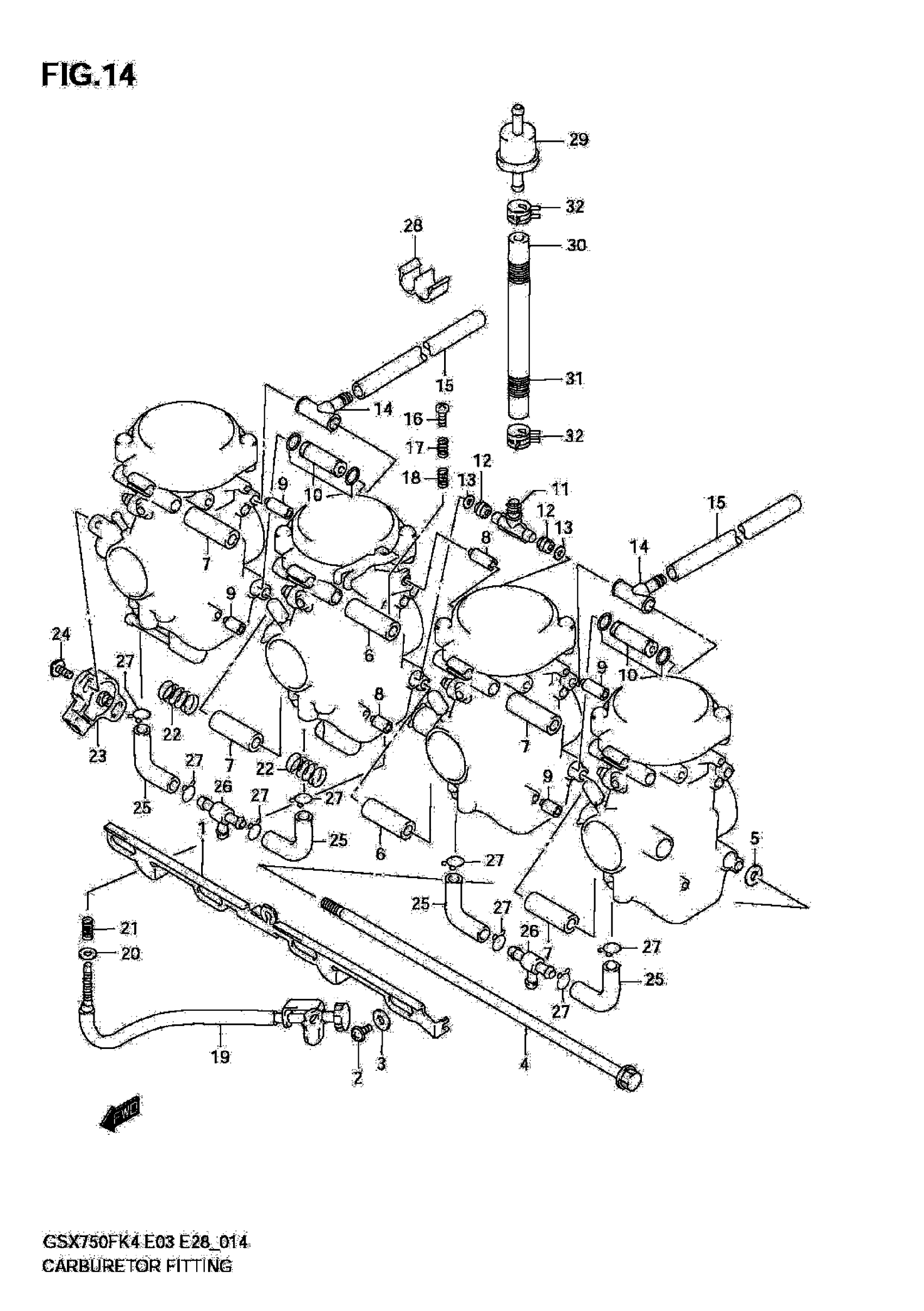

Suzuki GSX750FK4 (2006) CARBURETOR FITTINGS Diagram

#

Description
Price

1

LEVER

13413-19E00

$45.65

2

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

3

PACKING

13557-33E00

$3.47

4

BOLT

13612-33E00

$20.32

5

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

6

PIPE

13685-19E20

$11.60

7

PIPE

13685-34E00

$8.29

8

ROD

13685-19E00

$9.17

9

ROD

13685-19E30

$7.53

10

PIPE ASSY

13685-08F00

$16.84

11

NIPPLE

13685-16E00

$12.12

12

SEAL

13673-44B00

$4.60

13

WASHER

13531-09300

Unavailable

14

HOSE

13683-01DB0

$13.63

15

HOSE(7X10.2X475 This part replaces 13684-40C00.

13684-40C01

$22.73

16

SCREW

13267-44B00

$4.10

17

SPRING

13271-44B00

$3.89

18

SPRING

13268-96111

$4.35

19

ADJUST SCREW ASSY

13267-19E00

Unavailable

20

WASHER

13615-43010

$3.25

21

SPRING

13444-61A00

$4.75

22

SPRING

13573-06C10

$7.77

23

SENSOR ASSY,THR This part replaces 13550-13D60.

13550-13D61

$87.14

24

SCREW, SENSOR

13605-20C00

$3.84

25

HOSE | E33 This part replaces 13684-48B10.

13684-48B11

$15.96

26

.NIPPLE | E33

13685-48B00

$12.15

27

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49

28

CLAMP, AIR VENT HOSE

09408-00100

Unavailable

29

STRAINER, FUEL

15410-19E10

$19.52

30

HOSE,6.5X11.5X6 | L:600!140 This part replaces 09355-70125-600.

44421-12FR0

$12.33

31

PROTECTOR

09440-14030

$6.24

32

CLIP This part replaces 09401-11407.

09401-11415

$2.23
