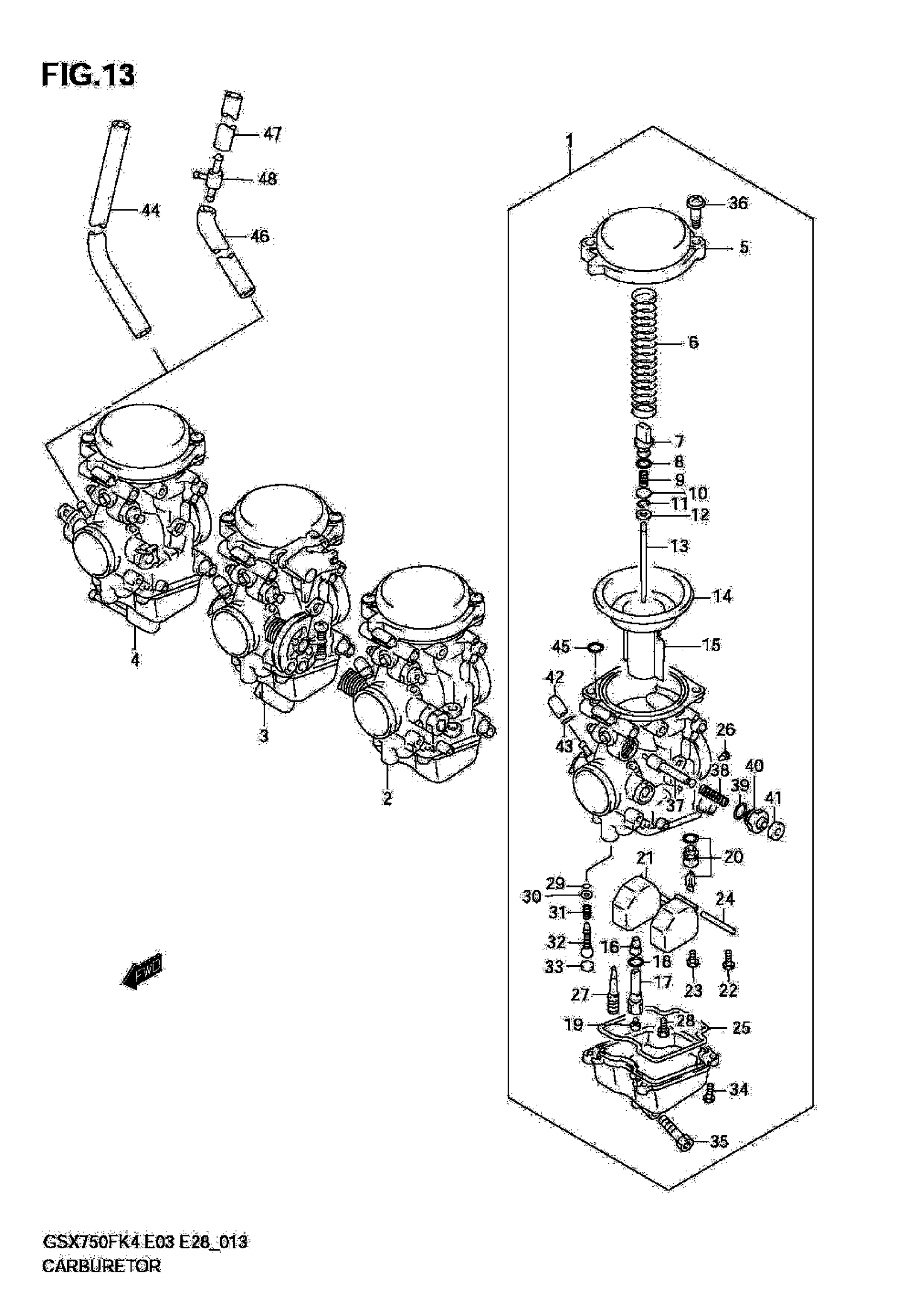

Suzuki GSX750FK4 (2006) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | E3,E28

13201-08F31

Unavailable

1

CARBURETOR ASSY, LH | E33

13201-08F41

Unavailable

2

CARBURETOR ASSY, ML | E3,E28

13202-08F31

Unavailable

2

CARBURETOR ASSY, ML | E33

13202-08F41

Unavailable

3

CARBURETOR ASSY, MR | E3,E28

13203-08F31

Unavailable

3

CARBURETOR ASSY, MR | E33

13203-08F41

Unavailable

4

CARBURETOR ASSY, RH | E3,E28

13204-08F31

Unavailable

4

CARBURETOR ASSY, RH | E33

13204-08F41

Unavailable

5

DIAPHRAGM COVER

13502-08F00

$51.32

6

SPRING

13573-33E00

$10.67

7

HOLDER

13418-33E00

$5.68

8

O RING

09280-05004

$2.11

9

SPRING

13481-33E00

$3.70

10

WASHER

13382-19E00

$3.56

11

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.80

12

RING

13387-44030

$5.83

13

NEEDLE, JET (5DF21-53-1) | E3,E28

13383-08F30

Unavailable

13

NEEDLE, JET (5DF22-53-1) | E33

13383-08F40

Unavailable

14

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

15

VALVE, PISTON

13501-08F00

$75.28

16

JET, NEEDLE (P-0M)

09494-00921

$42.71

17

HOLDER, JET

13385-08F00

$35.45

18

.O RING This part replaces 13246-43010.

13246-43011

$4.34

19

JET, MAIN (117.5)

09491-23019

$12.57

20

VALVE ASSY,NEED This part replaces 13370-08F50.

13370-08F51

$92.70

21

FLOAT ASSY

13250-04F00

$34.73

22

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

23

SCREW

13602-05A10

$3.56

24

.PIN, FLOAT

13254-01010

$3.62

25

GASKET

13258-04F00

$9.89

26

JET, PILOT AIR (140) | E3,E28

09493-28013

Unavailable

26

JET, PILOT AIR (130) | E33

09492-26002

Unavailable

27

JET, PILOT (15)

09492-12008

$14.26

28

JET, STARTER (50)

09491-50006

$12.63

29

O-RING This part replaces 13295-29900.

13295-29901

$4.34

30

WASHER

13291-29900

$1.98

31

SPRING,THROTTLE SCREW

13268-48700

$4.34

32

ADJUSTER (3,0) | E3,E28

13279-33E00

$12.48

32

ADJUSTER (3,1/2) | E33

13279-33E00

$12.48

33

PLUG

13281-05A00

$4.60

34

SCREW

02112-04107

$1.55

35

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

36

SCREW

13247-33E00

$2.92

37

PLUNGER

13411-05300

$24.17

38

SPRING

13417-26D00

$6.08

39

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

40

.HOLDER, GUIDE

13418-44080

$10.00

41

.CAP, STARTER VALVE

13682-31210

$4.37

42

CAP | LH,ML,MR

13274-84000

$3.82

43

CLIP | LH,ML,MR

09401-06101

$2.03

44

HOSE,5X10X600 | RH,600!400 E3,E28 This part replaces 09355-50105-600.

44421-13ER0

$10.06

45

O RING

13295-33010

$4.48

46

HOSE | L:600!225 E33

09352-50901-600

$8.06

47

.HOSE | L:600!175 E33 This part replaces 09352-50903-600.

09352-50006-600

$7.48

48

.NIPPLE | E33

13685-48B00

$12.15
