2005 Suzuki GSX750F Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2005 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

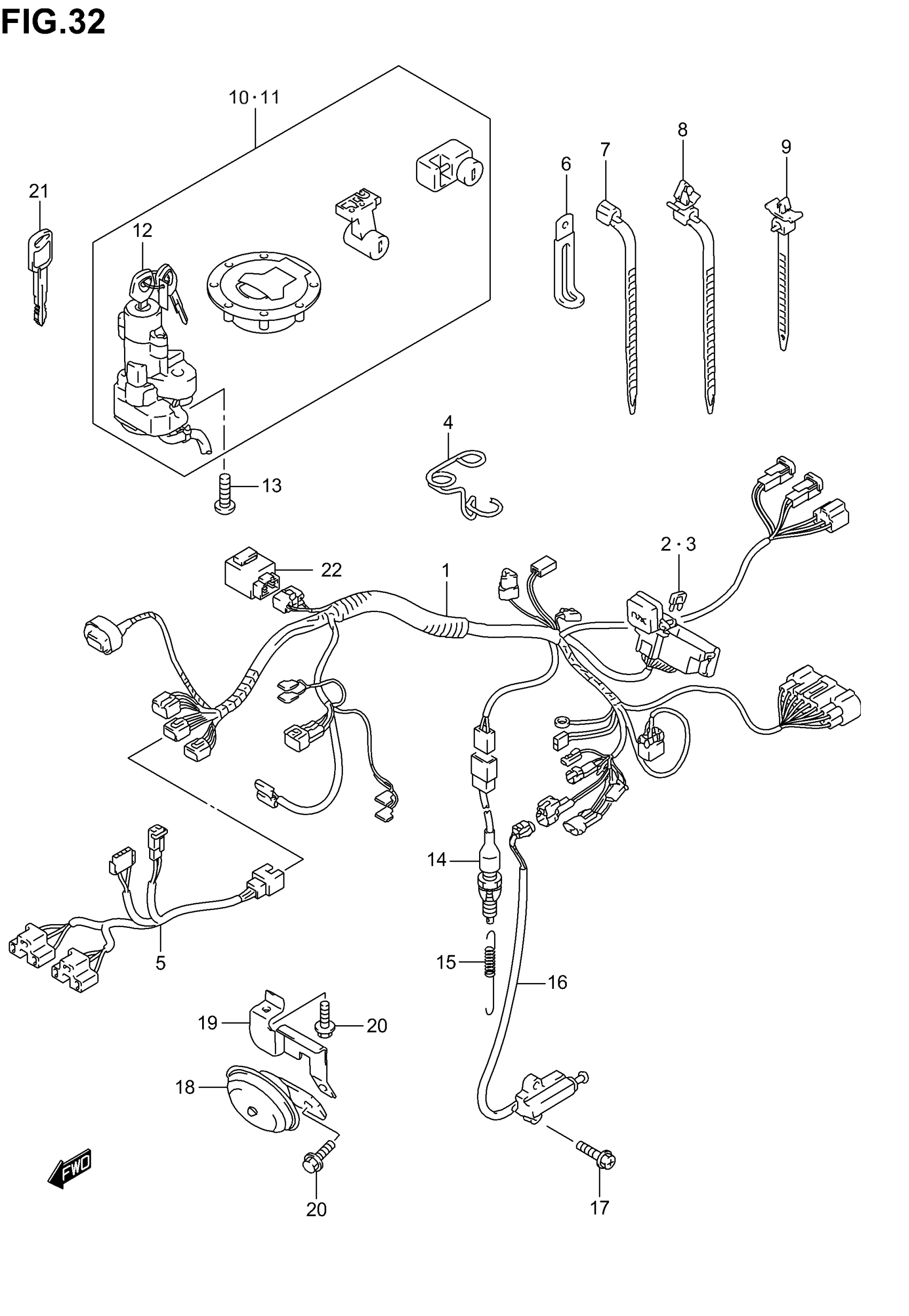

2005 Suzuki GSX750F Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1 | MODEL K4

36610-08FC0

1
Out of stock

1

HARNESS, WIRING NO.1 | MODEL K5; Includes Item(s) 2 - 3

36610-08FE0

1
Out of stock

2

FUSE (10A)

09481-10501

2
Out of stock

3

FUSE (15A)

09481-15501

3
Out of stock

4

GUIDE, WIRING HARNESS

36619-08F00

1
Out of stock

5

HARNESS, WIRING NO.2

36620-08FA0

1
Out of stock

6

WIRE, TPS LEAD

36853-08F00

1
Out of stock

7

CLAMP (L:135)

09404-06435

1
Out of stock

8

CLAMP (L:95)

09407-11401

1
Out of stock

8

CLAMP (L:125)

09407-14403

7
Out of stock

8

CLAMP (L:165)

09407-18402

2
Out of stock

9

CLAMP (L:90)

09407-11402

2
Out of stock

9

CLAMP This part replaces 09407-14408.

09407-17402

1
Out of stock

10

LOCK SET This part replaces 37105-33850.

37105-33854

1
Out of stock

11

LOCK SET (CA) | E33; Includes Item(s) 12 This part replaces 37103-33820.

37103-33821

1
Out of stock

12

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

1
Out of stock

13

SCREW

09139-08016

2
Out of stock

14

SWITCH ASSY, STOP LAMP

37740-19F00

1
Out of stock

15

SPRING

09443-06005

1
Out of stock

16

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

1
Out of stock

17

SCREW This part replaces 02162-06163.

02162-0616B

2
Out of stock

18

HORN ASSY

38500-08F10

1
Out of stock

19

BRACKET, HORN

38590-08F00

1
Out of stock

20

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

2
Out of stock

21

KEY, BLANK | OPT

37146-33E00

1
Out of stock

22

CONTROLLER ASSY, FAN MOTOR

38870-48B00

1
Out of stock
