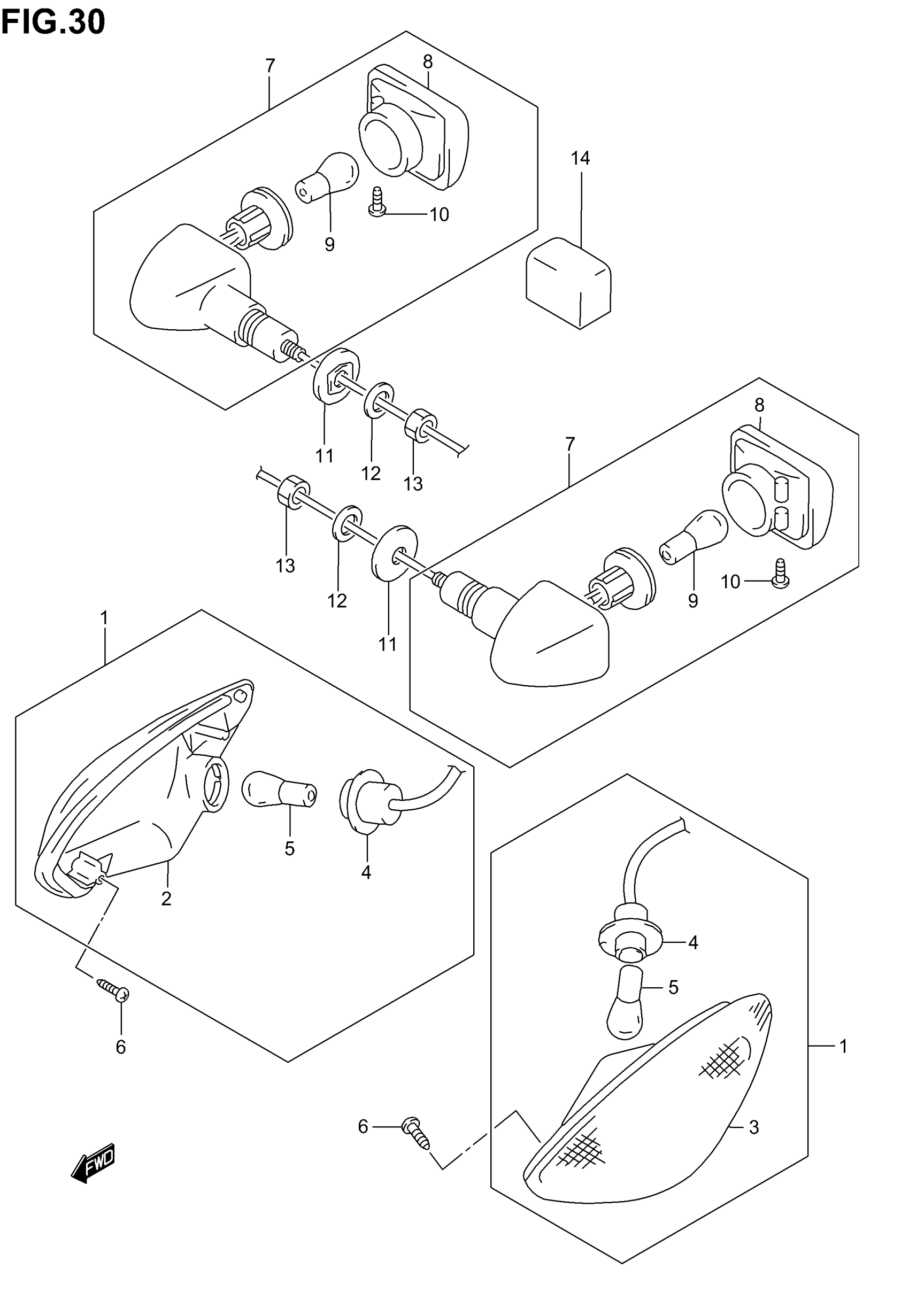

Suzuki GSX750F (2005) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-08F00

$95.18

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-08F00

$95.18

2

LAMP UNIT, RH

35610-08F00

$66.68

3

LAMP UNIT, LH

35630-08F00

$65.45

4

SOCKET & CORD

35618-08F00

Unavailable

5

BULB (12V,21W)

09471-12045

$2.95

6

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

7

LAMP ASSY, REAR TURNSIGNAL RH

35603-33E30

$125.57

7

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 8 - 10

35604-33E30

$125.57

8

LAMP UNIT

35610-33E00

$36.97

9

BULB (12V,21W)

09471-12045

$2.95

10

SCREW This part replaces 03242-04123.

03242-0412B

$3.23

11

SPACER

35695-17C00

$3.69

12

WASHER (10.5X30X2.3)

09160-10501

$2.33

13

NUT This part replaces 08310-00103.

08310-0010A

$1.86

14

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
