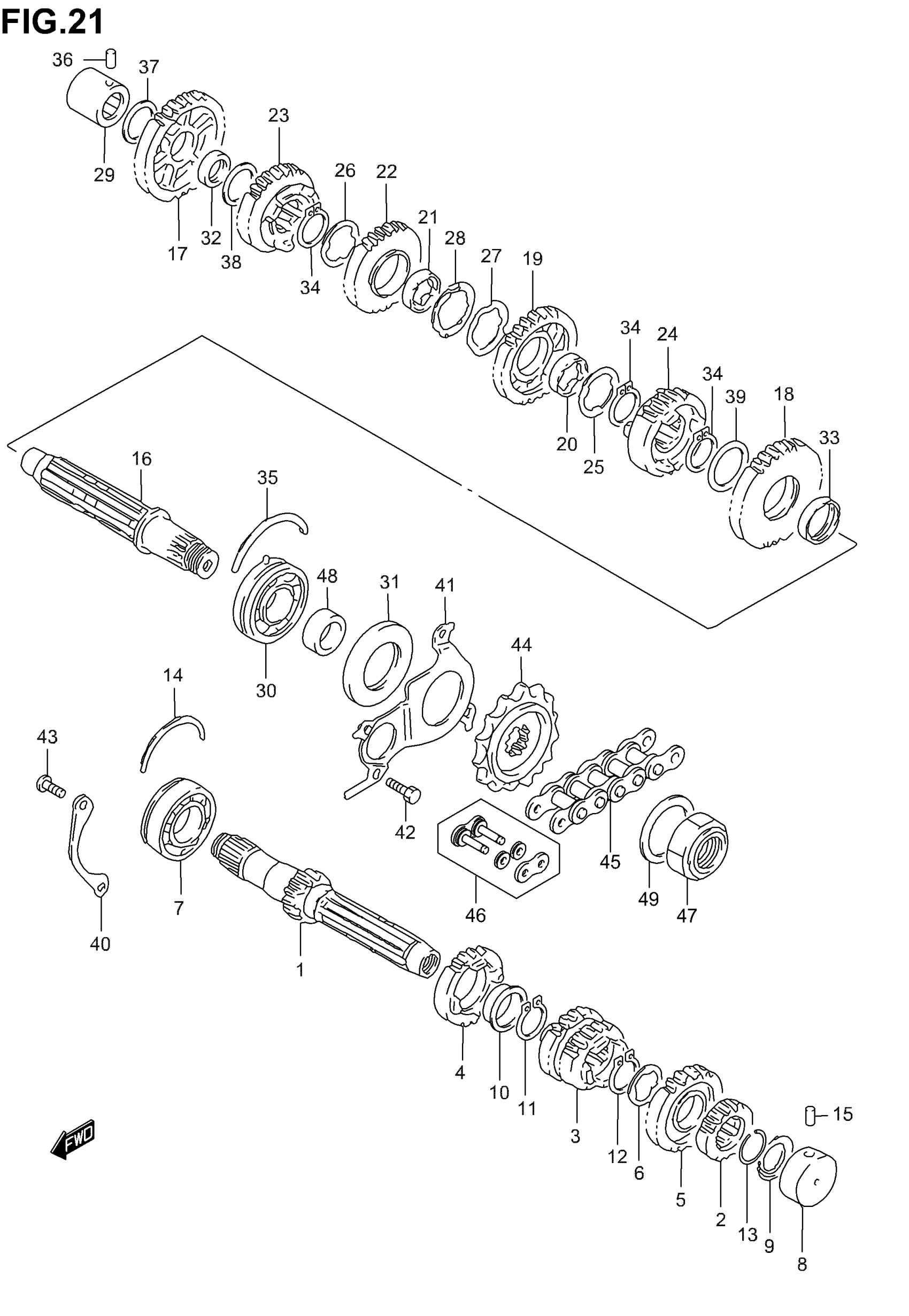

Suzuki GSX750F (2005) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:12)

24121-19C01

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-27A01

Unavailable

3

GEAR, 3/4TH DRIVE (NT:17/20)

24231-27A00

Unavailable

4

GEAR, 5TH DRIVE (NT:22)

24251-27A01

Unavailable

5

GEAR, 6TH DRIVE (NT:21)

24261-17C02

Unavailable

6

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

7

BEARING, LH | 25X62X17 This part replaces 09262-25051.

09262-25105

$68.10

8

BEARING(20X34X1 | 20X34X17.5 This part replaces 09263-20049.

09263-20119

$55.20

9

SEAL, OIL (20X31.2X2.7)

09285-20006

$6.51

10

BUSH, 5TH DRIVE GEAR

24322-19F00

$23.78

11

SNAP RING

09380-25003

$3.04

12

SNAP RING

09380-25003

$3.04

13

CIRCLIP, 2ND GEAR

09380-25013

$4.17

14

C RING, CNTR BRG, RH

09390-62012

$7.31

15

PIN, CNTR BRG, LH

04221-07129

$1.86

16

SHAFT, DRIVE

24131-20C31

Unavailable

17

GEAR, 1ST DRIVEN (NT:37)

24311-19C10

Unavailable

18

GEAR, 2ND DRIVEN (NT:33)

24321-20C00

Unavailable

19

GEAR, 3RD DRIVEN (NT:28)

24331-27A00

Unavailable

20

BUSH, 3RD DRIVEN

24332-27A00

Unavailable

21

BUSH, 4TH DRIVEN

24332-27A00

Unavailable

22

GEAR, 4TH DRIVEN (NT:28)

24341-27A01

Unavailable

23

GEAR, 5TH DRIVEN (NT:27)

24351-27A00

Unavailable

24

GEAR, 6TH DRIVEN (NT:23)

24361-20C01

Unavailable

25

WASHER, 3RD LH (28.1X38X1)

09167-28001

$4.60

26

WASHER, 4TH RH (28.1X38X1)

09167-28001

$4.60

27

WASHER, 3RD RH (28.1X43X1.5)

09167-28002

$4.77

28

WASHER, 3RD RH (28.1X40X1)

09169-28001

$3.85

29

BEARING, DRIVE SHAFT RH | 20X34X20

09263-20040

$55.20

30

BEARING, DRIVE SHAFT LH | 25X62X21.6

09267-25011

$156.33

31

SEAL, DRIVE SHAFT OIL | 34X62X6

09283-34005

$12.61

32

BUSH, 1ST DRIVEN GEAR

09300-22008

$14.82

33

BUSH, 2ND DRIVEN GEAR

09300-28003

Unavailable

34

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

35

C RING, DRIVE BRG, LH

09390-62012

$7.31

36

PIN, DRIVE SHAFT BRG, RH

04221-07209

$2.30

37

WASHER, 1ST,RH (20X34X1.0)

09181-20251

$2.79

38

WASHER, 1ST,LH (22X34X1.0)

09181-22223

$3.12

39

WASHER, 2ND (28X38X1.0)

09181-28195

$4.77

40

RETAINER, CNTR SHAFT

24741-27A00

$10.07

41

RETAINER, DRIVE SHAFT

24751-40C01

$8.53

42

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

43

SCREW, CNTR SHAFT (6X12)

09126-06011

$2.03

44

SPROCKET, ENGINE (NT:15)

27510-17C10

$88.98

45

CHAIN ASSY, (RK50MFOZ1,116LE)

27600-16G00-116

Unavailable

46

JOINT SET, DRIVE | OPT

27620-16G00

$21.92

47

NUT, ENGINE SPROCKET

09159-20004

$15.67

48

SPACER, ENGINE SPROCKET | 25X34X17.5

09180-25091

$19.87

49

WASHER, SPROCKET (25X40X1.5)

09181-25268

$3.16
