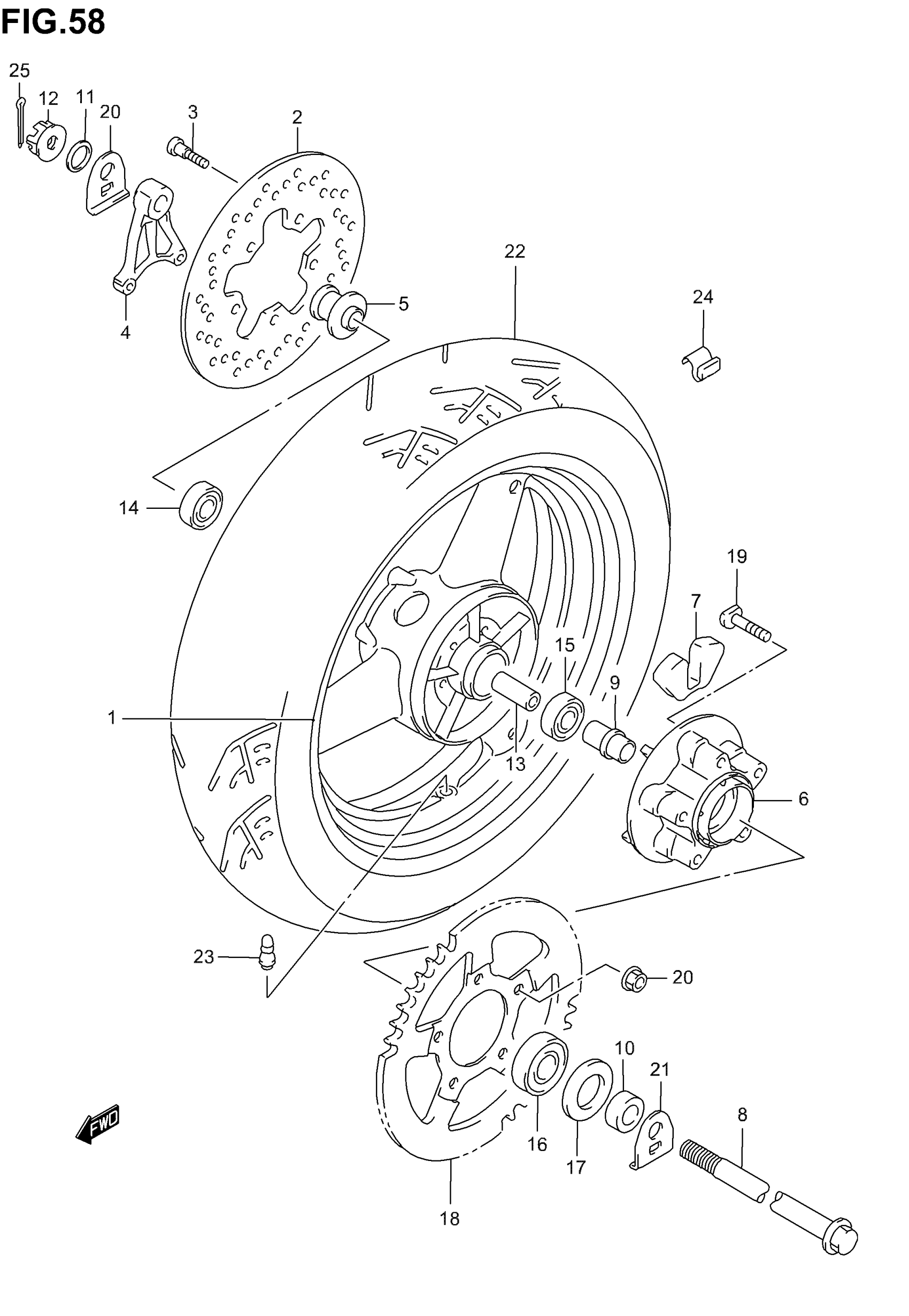

Suzuki GSX750F (2005) REAR WHEEL Diagram

WHEEL, REAR (17XMT4.50) BLACK

64111-08F01-019

Unavailable

DISC, REAR BRAKE

69211-21E00

$388.57

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

BRACKET, REAR CALIPER

69721-33D00

Unavailable

SPACER, REAR AXLE RH

64740-19C00

$22.22

DRUM, REAR SPROCKET

64611-33C00

Unavailable

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

AXLE, REAR

64711-08F10

Unavailable

RETAINER, HUB BEARING

64733-34C00

$29.10

SPACER, REAR AXLE LH

64741-45D00

$15.08

WASHER

09160-17050

$2.45

NUT, HUB This part replaces 08314-40163.

08314-4016A

$3.79

SPACER, BEARING (17.5X25X88)

09180-17067

$23.05

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

BEARING, RR HUB, L

08143-63037

$22.58

BEARING (25X62X17)

09262-25073

$25.92

SEAL,OIL (35X62X8)

09285-35001

$10.19

SPROCKET, REAR (NT:45)

64511-20C21

$117.33

BOLT (10X47)

09119-10043

$4.26

NUT

08319-31107

$2.73

WASHER, CHAIN ADJUSTER

61445-20C01

$7.37

TIRE, REAR,150/70 ZR17(69W) (DUNLOP)

65110-08F10

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER, WHEEL NO.1

55411-17G00

$7.63

BALANCER, WHEEL NO.2

55412-17G00

$7.05

BALANCER, WHEEL NO.3

55413-17G00

Unavailable

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49
