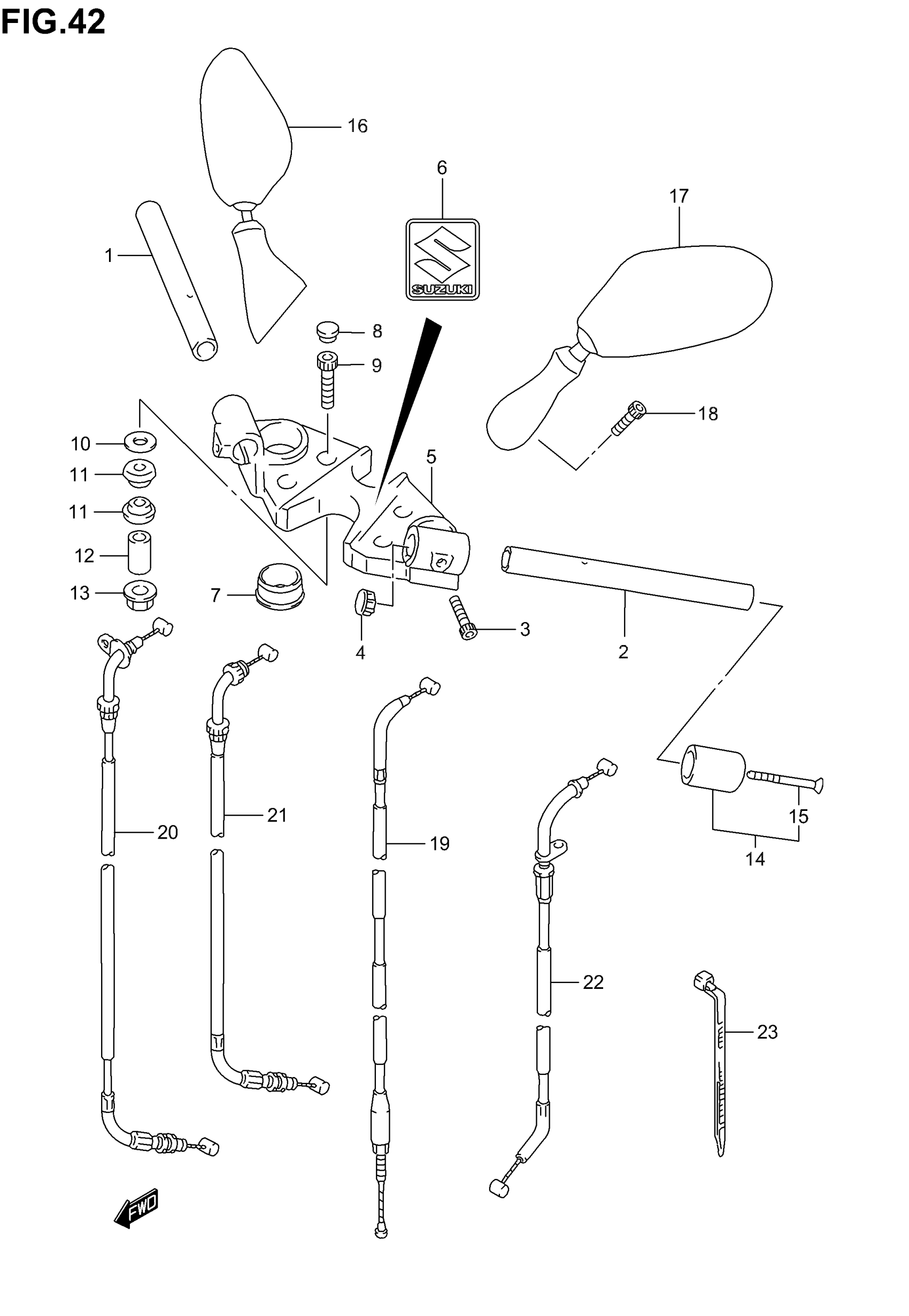

Suzuki GSX750F (2005) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56110-08F01

$64.82

2

HANDLEBAR, LH

56150-08F01

$64.82

3

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

4

CAP

57215-33400

$5.50

5

HOLDER

56211-08F10

Unavailable

6

EMBLEM

68281-35F00

$16.45

7

CUSHION, HANDLE HOLDER

56247-08F00

Unavailable

8

CAP

09250-08014

$2.85

9

BOLT

09106-10075

Unavailable

10

WASHER

09160-10094

$3.16

11

CUSHION, BRACKET

56240-08F00

Unavailable

12

SPACER

56243-20C00

Unavailable

13

NUT

08319-31107

$2.73

14

BALANCER SET, HANDLEBAR | Includes Item(s) 15

56200-08830

$50.37

15

SCREW This part replaces 02122-06603.

02122-0660B

$3.04

16

MIRROR ASSY, REAR VIEW, RH This part replaces 56500-08F00.

56500-08F10

$327.50

17

MIRROR ASSY,REA This part replaces 56600-08F00.

56600-08F11

$252.08

18

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

19

CABLE ASSY,CLUT This part replaces 58200-08F00.

58200-08F01

$25.72

20

CABLE ASSY, THROTTLE NO.1

58300-08F00

$36.08

21

CABLE ASSY, THROTTLE NO.2

58300-08F10

$34.58

22

CABLE, STARTER

58410-08F20

$37.63

23

CLAMP

09407-25401

$4.66
