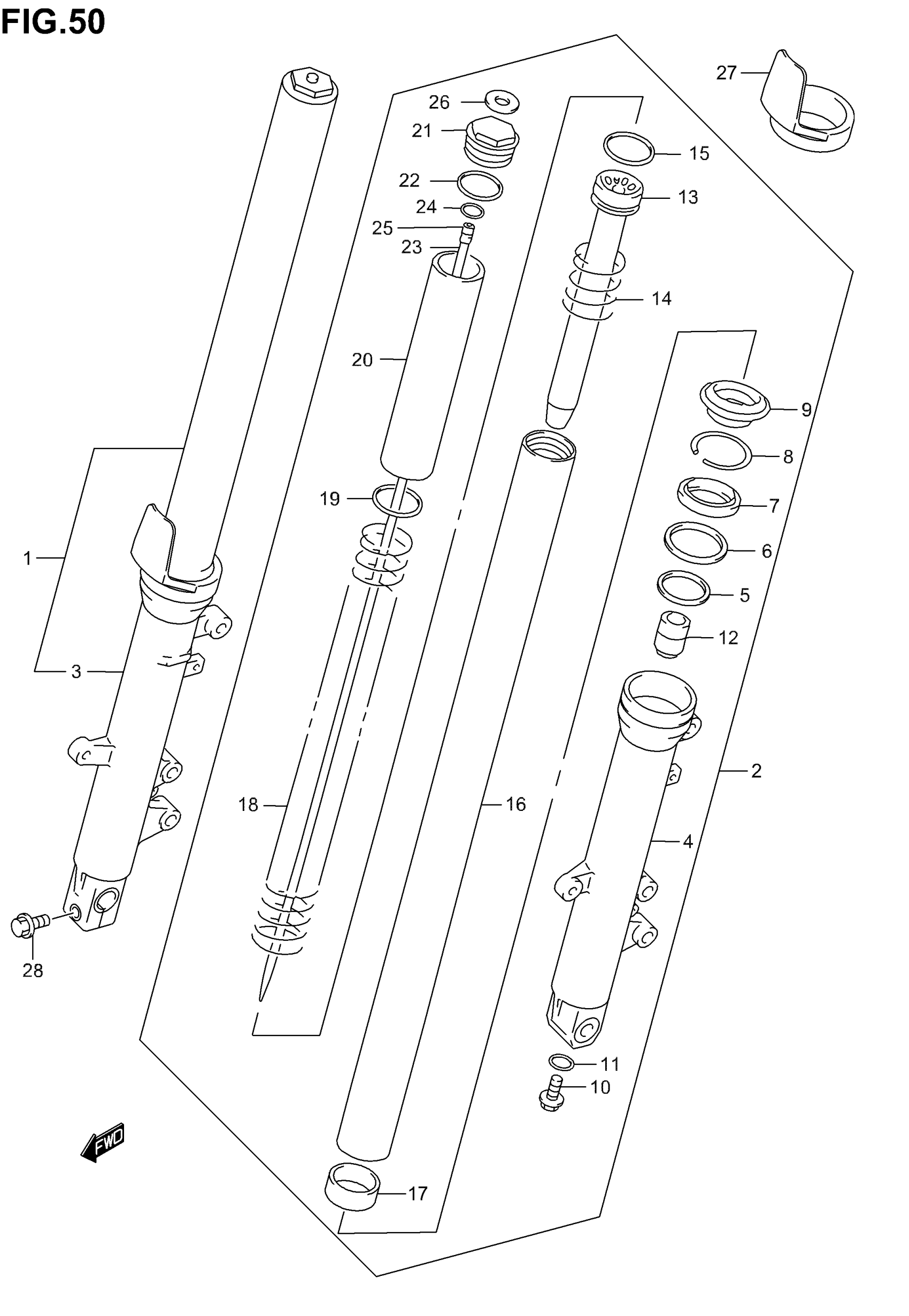

Suzuki GSX750F (2005) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-08FC0

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 26

51104-08FC0

Unavailable

3

TUBE, OUTER RH

51130-08F10

Unavailable

4

TUBE, OUTER LH

51140-08F10

Unavailable

5

BUSH, GUIDE

51152-11D60

$14.26

6

SPACER, SEAL

51168-38B00

$6.49

7

SEAL, OIL

51153-08D00

$22.96

8

RING

51556-38B00

$7.22

9

SEAL, DUST

51571-47D50

$21.90

10

BOLT

51147-48130

$4.34

11

GASKET

51148-36011

$3.56

12

PIECE, OIL LOCK

51195-10F00

$30.22

13

SEAT, UNDER

51194-08FA0

Unavailable

14

SPRING

51177-48B31

Unavailable

15

RING

51196-12C00

$8.42

16

TUBE, INNER

51110-08FA0

Unavailable

17

BUSH, SLIDE

51121-48B31

$25.75

18

SPRING, FRONT

51171-08FA0

Unavailable

19

JOINT, SPRING

51192-19C00

$5.02

20

COLLAR, SPRING

51176-19C00

$13.70

21

BOLT, FORK

51351-20C20

Unavailable

22

.O-RING

51117-12C00

$3.89

23

ROD, DAMPER

52111-08F00

Unavailable

24

O RING (ID:3.8,D:1.9)

09280-03002

$1.49

25

RING, STOPPER (ID:6.1,D:0.6)

51169-20C20

$4.52

26

LABEL, S-H

51149-20C20

Unavailable

27

PROTECTOR

51201-32F00

$20.95

28

BOLT, RH

01550-08407

$3.42
