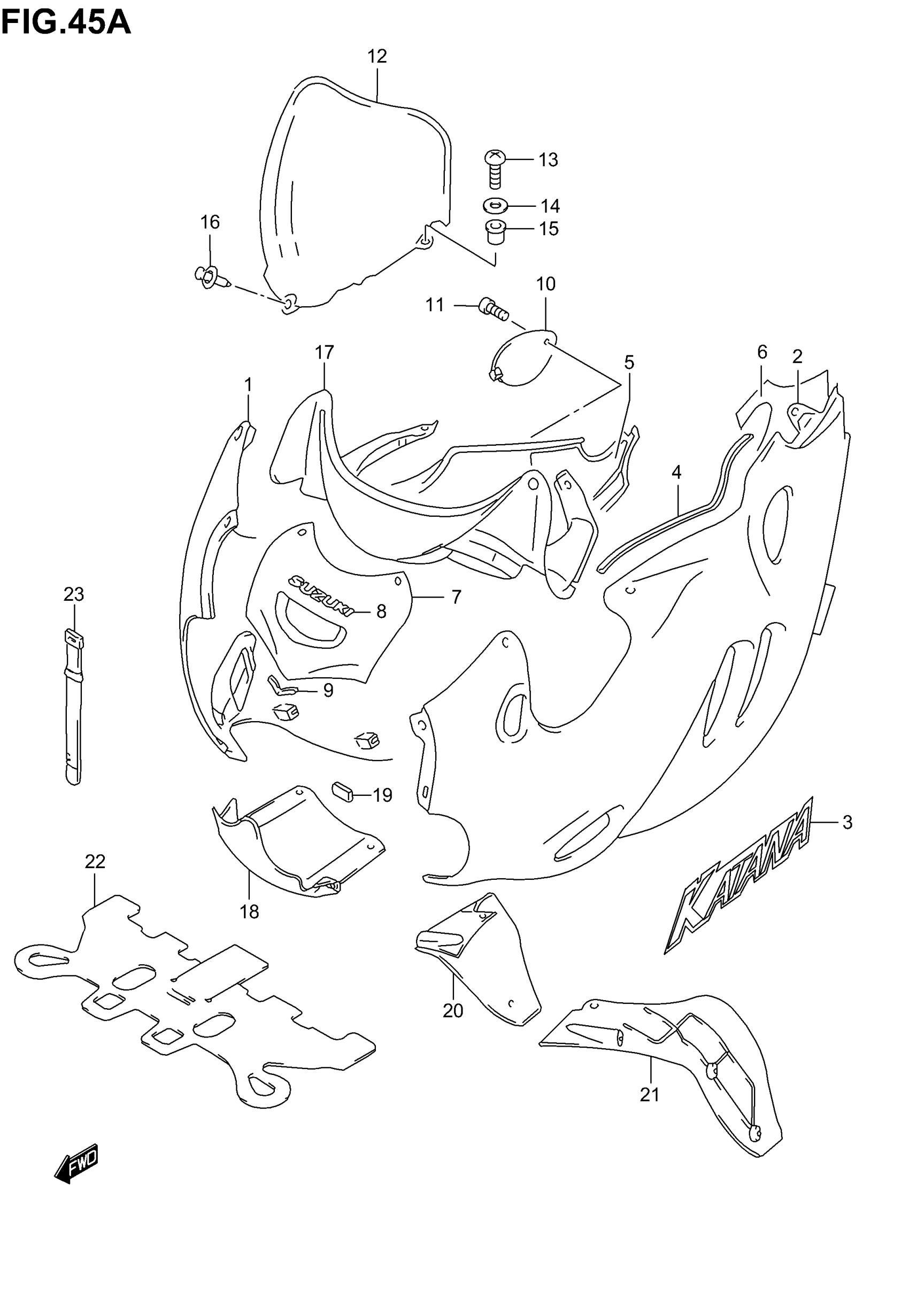

Suzuki GSX750F (2005) COWLING BODY (MODEL K5) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (GRAY) | FOR LA1

94403-08FQ0-4GX

Unavailable

1

COWL ASSY, SIDE RH (BLUE) | FOR AAW

94403-08FQ0-YAR

Unavailable

2

COWL ASSY, SIDE LH (GRAY) | E3,E28 FOR LA1

94404-08FQ0-4GX

Unavailable

2

COWL ASSY, SIDE LH (BLUE) | E3,E28 FOR AAW

94404-08FQ0-YAR

Unavailable

2

COWL ASSY, SIDE LH (GRAY) | E33

94404-08FR0-4GX

Unavailable

2

COWL ASSY, SIDE LH (BLUE) | E33; Includes Item(s) 3 - 6

94404-08FR0-YAR

Unavailable

3

EMBLEM, KATANA | FOR 4GX

68681-08F60-BNL

Unavailable

3

EMBLEM, KATANA | FOR YAR

68681-08F60-BNM

Unavailable

4

MOLDING

94631-44110

$36.85

5

SHIELD, SIDE RH

94439-08F00

Unavailable

6

SHIELD, SIDE LH

94449-08F00

Unavailable

7

PANEL,COWLING C | FOR LA1 This part replaces 94410-08F00-ZTX.

94411-08F00

$33.18

7

PANEL, CENTER UPPER (BLUE) | FOR AAW; Includes Item(s) 8 - 9

94410-08F00-YAR

Unavailable

8

EMBLEM, SUZUKI (SILVER)

68185-05C10-YD8

$20.13

9

CUSHION, UPPER

94413-08F00

$3.78

10

LID, OIL (BLUE) | FOR AAW

94435-08F00-YAR

Unavailable

10

LID,OIL | FOR LA1 This part replaces 94435-08F00-YU8.

94435-08F00

Unavailable

11

SCREW

09139-06030

$3.70

12

WIND SCREEN

94611-08F00

$270.57

13

SCREW

09139-05025

$2.05

14

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

15

NUT

09159-05019

$7.14

16

CLIP (BLACK)

09409-08308-5ES

$1.97

17

PANEL, METER

94421-08F00

Unavailable

18

PANEL, CENTER LOWER (BLUE) | FOR AAW

94412-08F00-YAR

Unavailable

18

PANEL, CENTER LOWER (GRAY) | FOR LA1

94412-08F00-YU8

Unavailable

19

CUSHION, UPPER This part replaces 94414-08F00.

94413-08F00

$3.78

20

PANEL, INNER RH

94461-08F10

Unavailable

21

PANEL, INNER LH

94462-08F10

Unavailable

22

PLATE, AIR GUIDE

94451-20C01

Unavailable

23

CLAMP (L:165)

09407-18402

$2.19

23

CLAMP (L:235)

09407-25401

$4.66
