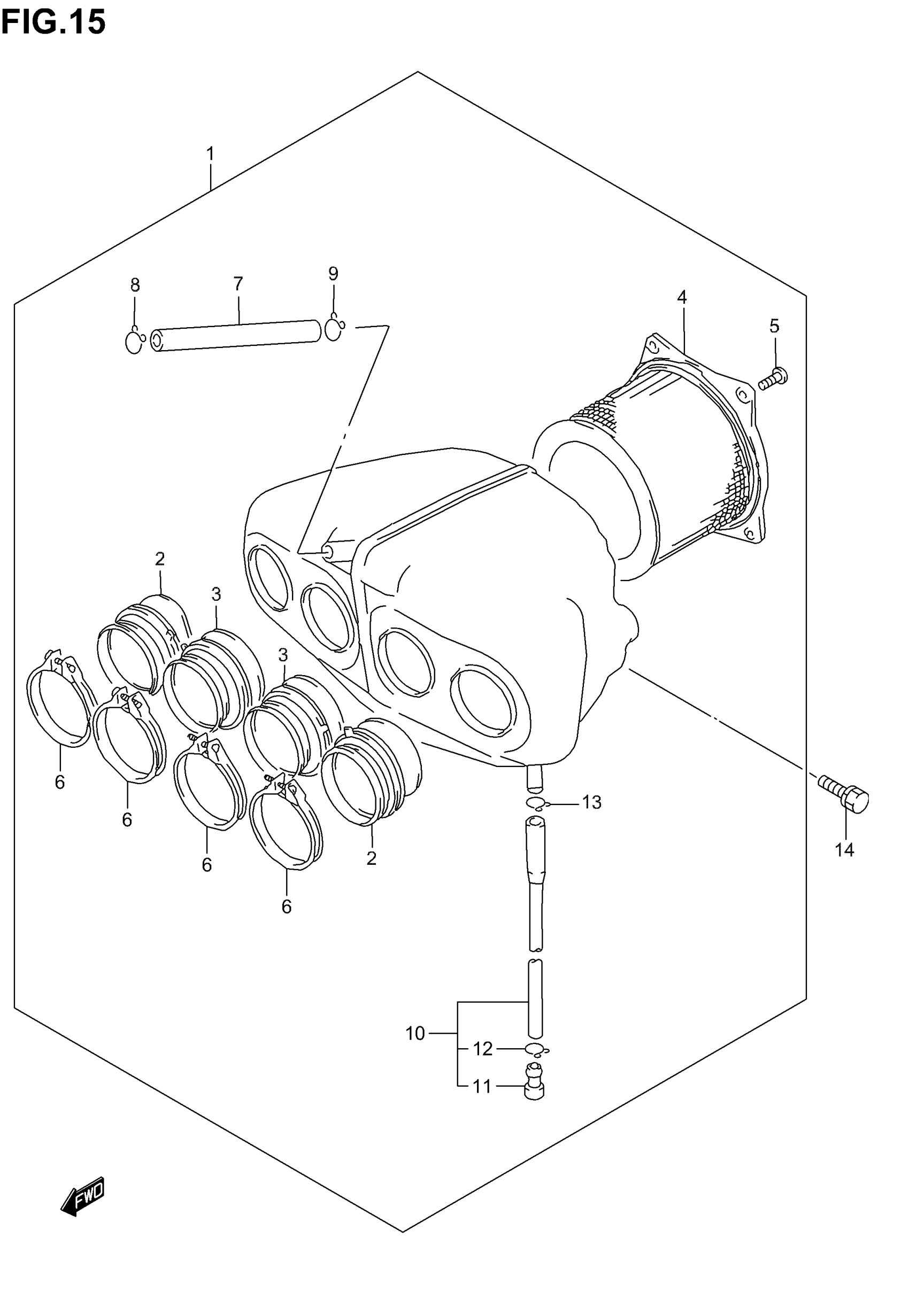

Suzuki GSX750F (2005) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 13

13700-08F00

Unavailable

2

TUBE, OUTLET OUTSIDE

13881-08F00

$35.20

3

TUBE, OUTLET INSIDE

13882-08F00

$37.53

4

FILTER

13780-20C00

$63.15

5

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

6

CLAMP

09402-64203

$6.58

7

TUBE, BREATHER

13853-19C00

$15.42

8

CLIP

09401-14301

$2.35

9

CLIP

09401-16401

$3.14

10

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$15.51

11

STOPPER

13877-38A00

$5.98

12

CLIP

09401-13409

$2.12

13

CLIP

09401-13409

$2.12

14

BOLT This part replaces 01580-06163.

01580-0616A

$2.42
