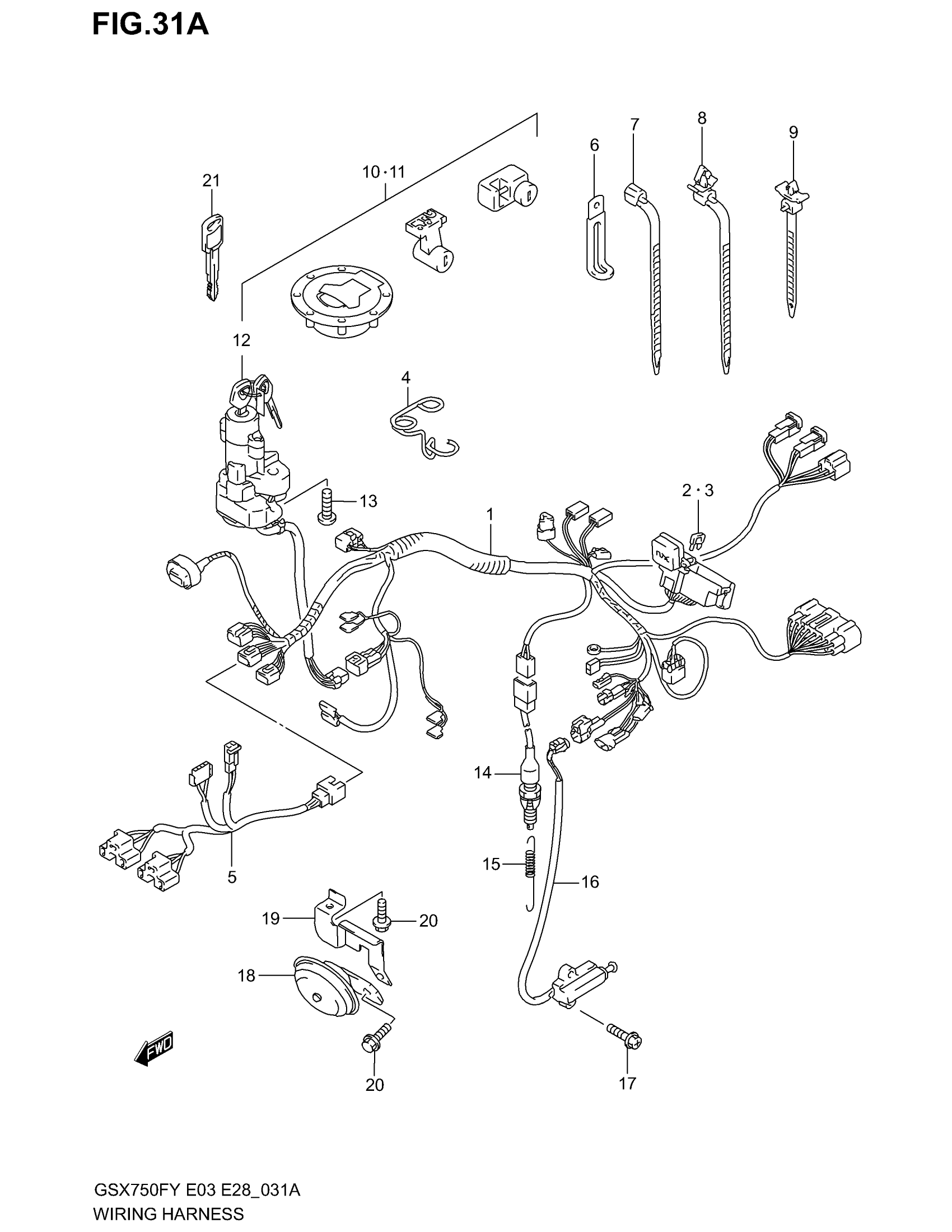

Suzuki GSX750F (2003) WIRING HARNESS (MODEL K3) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | Includes Item(s) 2 - 3

36610-08FA0

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

GUIDE, WIRING HARNESS

36619-08F00

Unavailable

5

HARNESS, WIRING NO.2

36620-08FA0

$90.23

6

WIRE, TPS LEAD

36853-08F00

$37.08

7

CLAMP (L:135)

09404-06435

$3.68

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

9

CLAMP (L:90)

09407-11402

$1.80

9

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

10

LOCK SET This part replaces 37105-33850.

37105-33854

$415.27

11

LOCK SET (CA) | E33; Includes Item(s) 12 This part replaces 37103-33820.

37103-33821

Unavailable

12

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$201.45

13

SCREW

09139-08016

$3.37

14

SWITCH ASSY, STOP LAMP

37740-19F00

$31.28

15

SPRING

09443-06005

$3.37

16

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

17

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

18

HORN ASSY

38500-08F10

Unavailable

19

BRACKET, HORN

38590-08F00

Unavailable

20

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

21

KEY, BLANK | OPT

37146-33E00

$21.21
