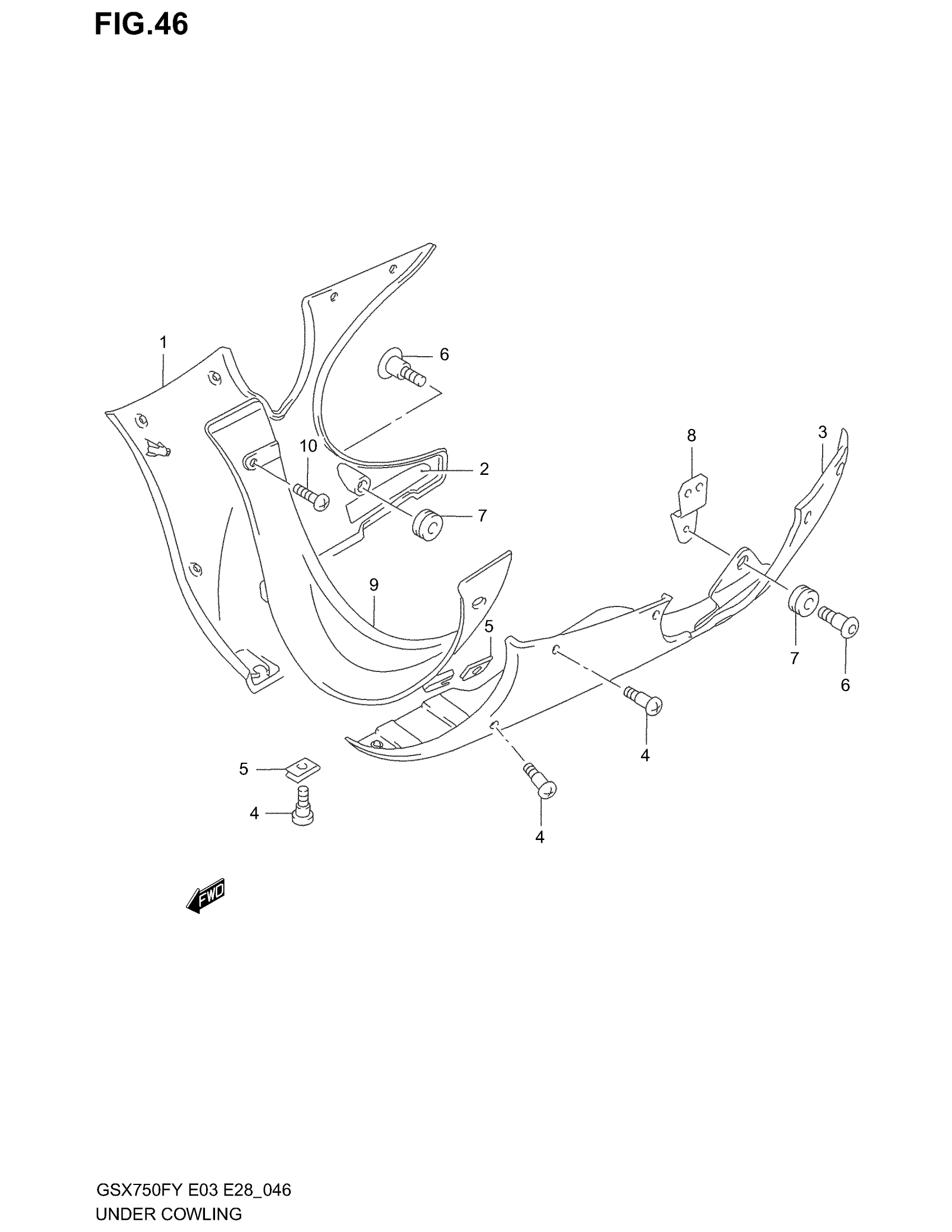

Suzuki GSX750F (2003) UNDER COWLING (MODEL W/X/Y) Diagram

#

Description

Price

1

COWLING, UNDER RH (GRAY) | MODEL W/X

94470-08F00-Y4P

Unavailable

1

COWLING, UNDER RH (BLACK) | MODEL Y; Includes Item(s) 2

94470-08F00-Y7L

Unavailable

2

SHIELD, UNDER COWL

94472-08F00

Unavailable

3

COWLING, UNDER LH (GRAY) | MODEL W/X

94481-08F00-Y4P

Unavailable

3

COWLING, UNDER LH (BLACK) | MODEL Y

94481-08F00-Y7L

Unavailable

4

SCREW

09139-05054

$3.93

5

NUT COWL | MODEL W/X This part replaces 94484-32B00.

94484-24F00

$3.79

5

NUT COWL | MODEL Y

94484-24F00

$3.79

6

SCREW This part replaces 09139-06087.

09139-06126

$3.75

7

CUSHION

09320-09016

$2.01

8

BRACKET, LOWER LH

94570-08F00

Unavailable

9

COWLING, UNDER CENTER

94475-08F00

Unavailable

10

SCREW This part replaces 03541-05123.

03541-0512A

$1.41
