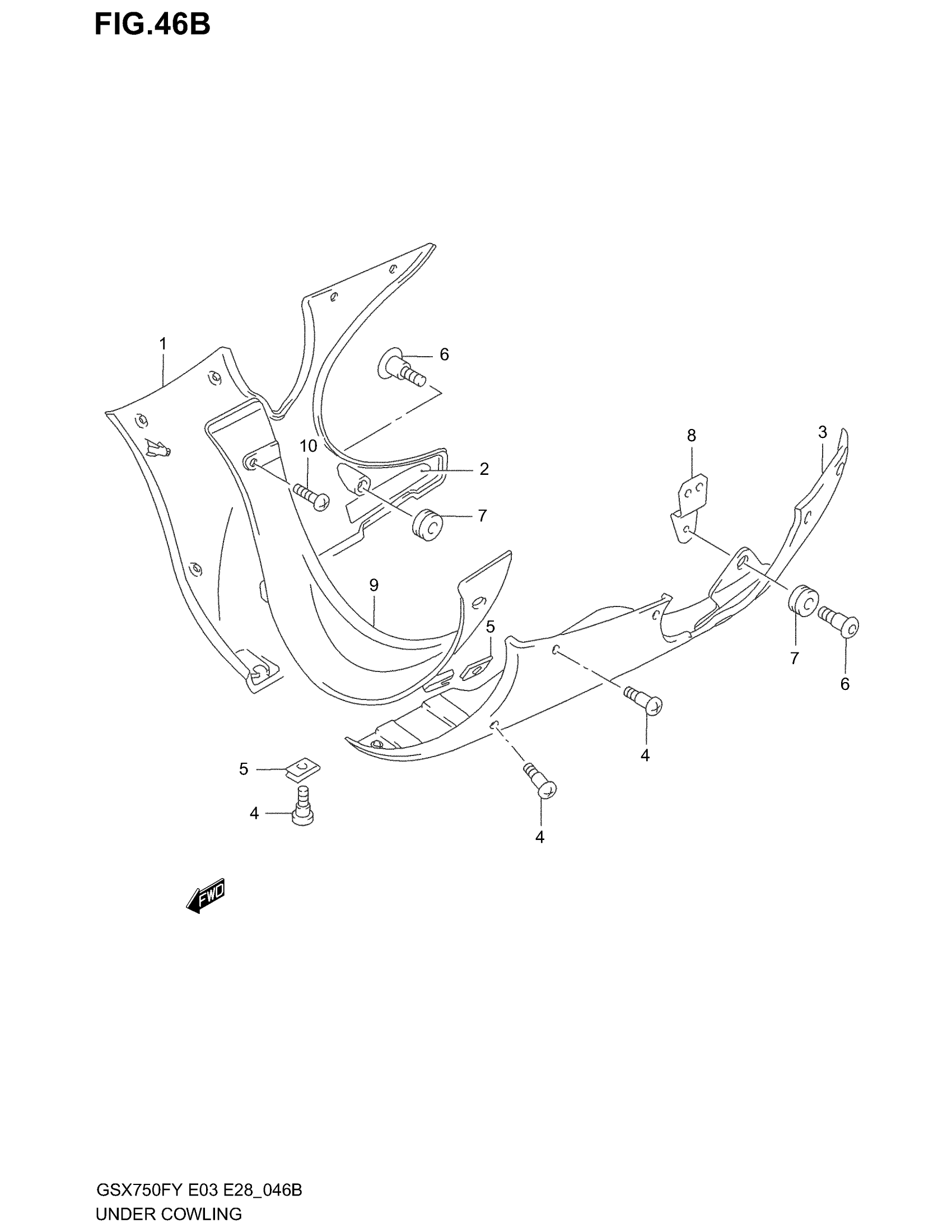

Suzuki GSX750F (2003) UNDER COWLING (MODEL K2/K3) Diagram

#

Description
Price

1

COWLING, UNDER RH (BLACK) | MODEL K2 FOR 19A

94470-08F00-Y7L

Unavailable

1

COWLING, UNDER RH (SILVER) | MODEL K2 FOR Y7L

94470-08F00-YM6

Unavailable

1

COWLING, UNDER RH (BLACK) | MODEL K3 FOR 33J

94470-08F00-33J

Unavailable

1

COWLING COMP,UN | MODEL K3 FOR YU8; Includes Item(s) 2 This part replaces 94470-08F00-YU8.

94470-08F00

$183.60

2

SHIELD, UNDER COWL

94472-08F00

Unavailable

3

COWLING, UNDER LH (BLACK) | MODEL K2 FOR 19A

94481-08F00-Y7L

Unavailable

3

COWLING, UNDER LH (SILVER) | MODEL K2 FOR Y7L

94481-08F00-YM6

Unavailable

3

COWLING, UNDER LH (BLACK) | MODEL K3 FOR 33J

94481-08F00-33J

Unavailable

3

COWLING, UNDER LH (GRAY) | MODEL K3 FOR YU8

94481-08F00-YU8

Unavailable

4

SCREW

09139-05054

$4.24

5

NUT COWL

94484-24F00

$4.03

6

SCREW | MODEL K2 This part replaces 09139-06087.

09139-06126

$4.04

6

SCREW, CENTER | MODEL K3

09139-06126

$4.04

7

CUSHION

09320-09016

$1.97

8

BRACKET, LOWER LH

94570-08F00

Unavailable

9

COWLING, UNDER CENTER

94475-08F00

Unavailable

10

SCREW This part replaces 03541-05123.

03541-0512A

$1.49
