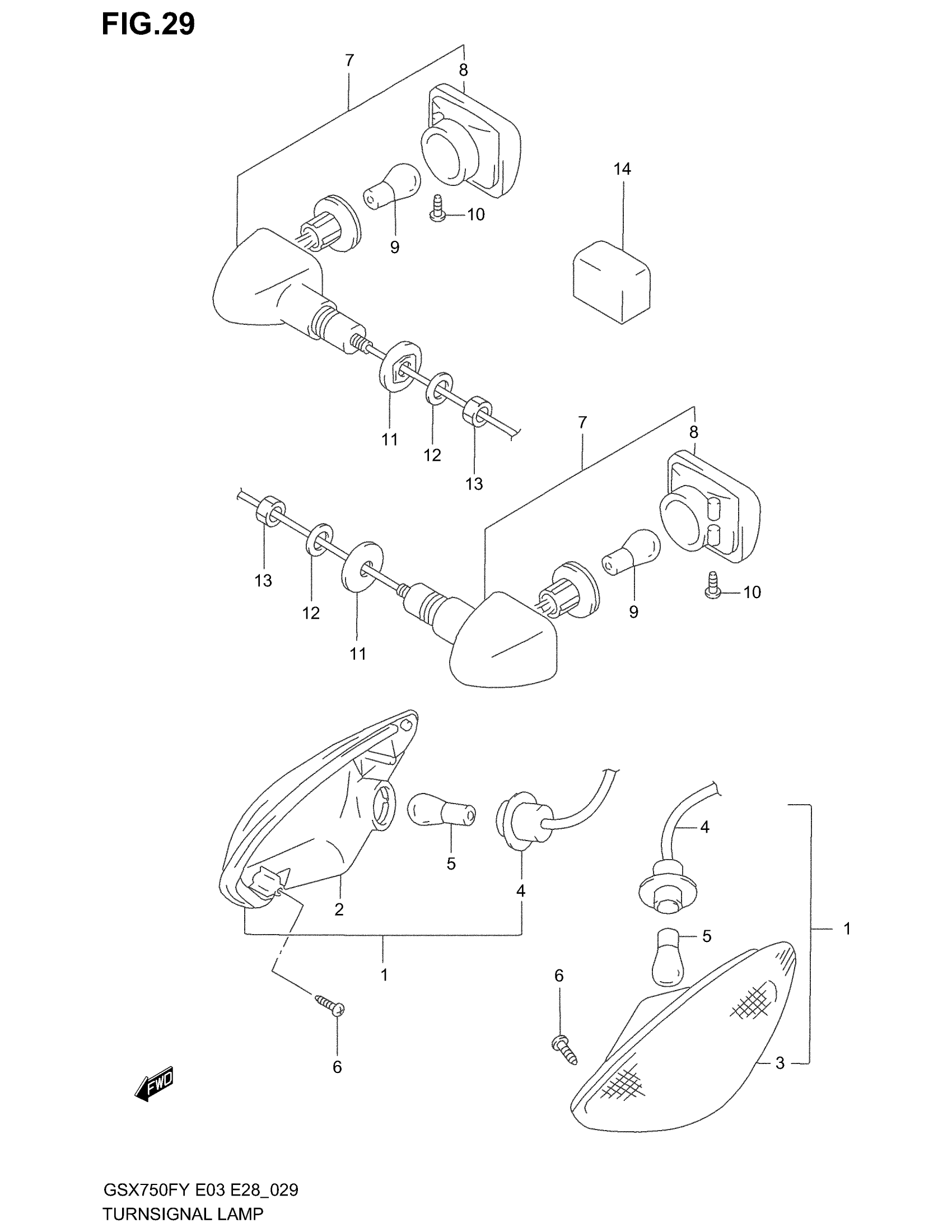

Suzuki GSX750F (2003) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-08F00

$84.73

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-08F00

$84.73

2

LAMP UNIT, RH

35610-08F00

$59.08

3

LAMP UNIT, LH

35630-08F00

$58.00

4

SOCKET & CORD

35618-08F00

Unavailable

5

BULB (12V,21W)

09471-12045

$3.27

6

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

7

LAMP ASSY, REAR TURNSIGNAL RH

35603-33E30

$111.78

7

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 8 - 10

35604-33E30

$111.78

8

LAMP UNIT

35610-33E00

$32.75

9

BULB (12V,21W)

09471-12045

$3.27

10

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

11

SPACER

35695-17C00

$4.03

12

WASHER (10.5X30X2.3)

09160-10501

$2.33

13

NUT This part replaces 08310-00103.

08310-0010A

$1.84

14

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
