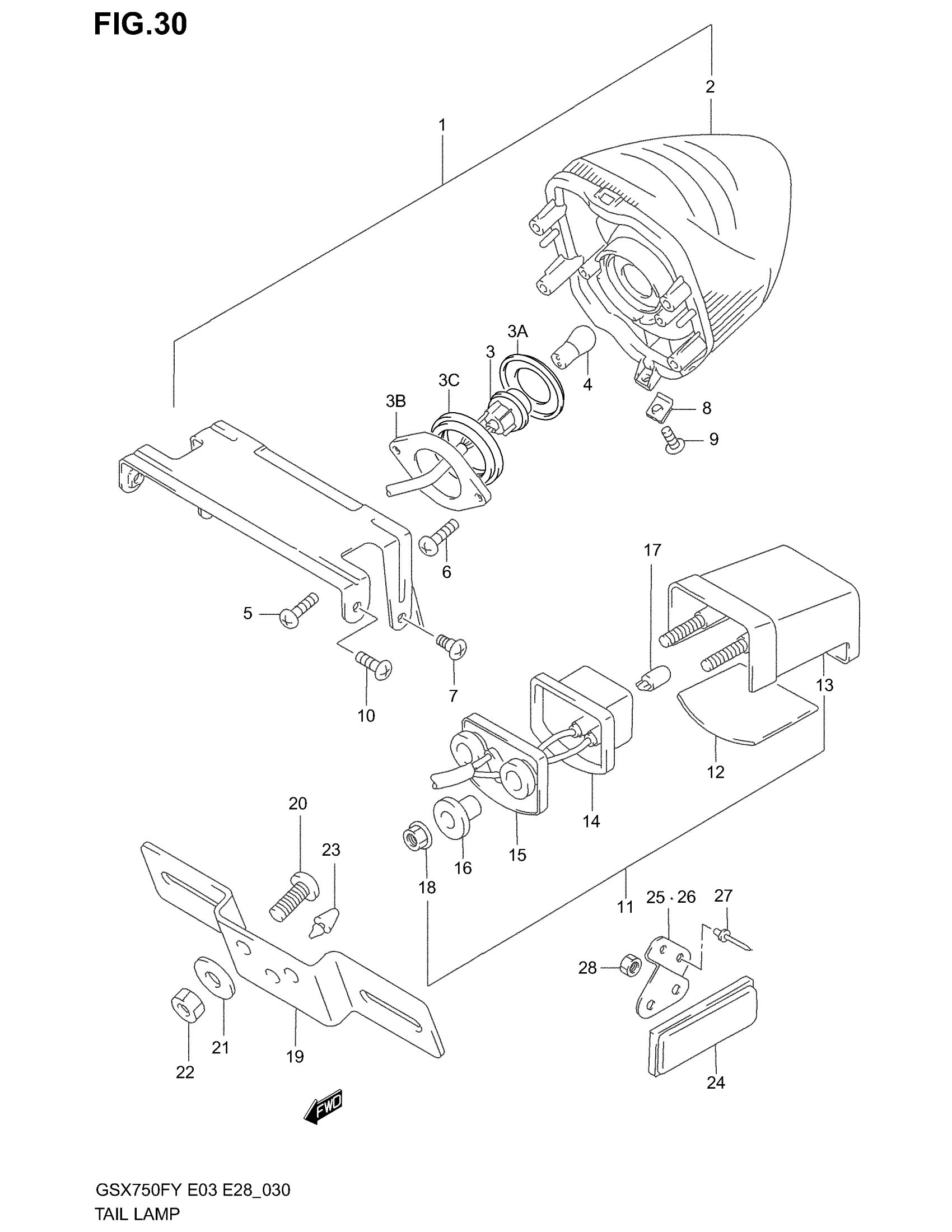

Suzuki GSX750F (2003) TAIL LAMP (MODEL W/X/Y/K1/K2) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 6

35710-08F30

Unavailable

2

LAMP UNIT

35720-08F30

Unavailable

3

SOCKET & CORD

35718-08F00

$37.23

3A

PLATE, NO.1

35716-48B21

$20.22

3B

PLATE, NO.2

35736-48B21

$21.92

3C

CUSHION

35765-48B21

$12.97

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

SCREW This part replaces 03211-05163.

03211-0516A

Unavailable

6

SCREW This part replaces 03211-04163.

03211-0416A

$1.49

7

SCREW (5X12.8)

09139-05057

Unavailable

8

NUT, REAR COMB. UNDER

09148-05038

$1.97

9

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

10

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

11

LAMP ASSY, LICENSE | Includes Item(s) 12 - 18

35910-08F00

Unavailable

12

LENS

35912-08F00

$10.65

13

COVER

35917-08F00

$57.20

14

HOUSING

35915-08F00

Unavailable

15

SOCKET & CORD

35918-08F00

Unavailable

16

SPACER

35766-08F00

Unavailable

17

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

18

NUT This part replaces 08316-20063.

08316-2006A

$2.63

19

BRACKET,LICENSE PLATE

35927-26E30

$14.20

20

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

21

.WASHER (6.5X20X1.6)

09160-06088

$1.65

22

NUT This part replaces 08310-00063.

08310-0006A

$1.84

23

CUSHION This part replaces 09321-06028.

09321-06038

$1.88

24

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$20.88

25

BRACKET, REAR SIDE RH

35975-08F00

Unavailable

26

BRACKET, REAR SIDE LH

35976-08F00

Unavailable

27

RIVET, REAR SIDE

09229-04020

$2.66

28

NUT This part replaces 08310-00053.

08310-0005A

$1.84
