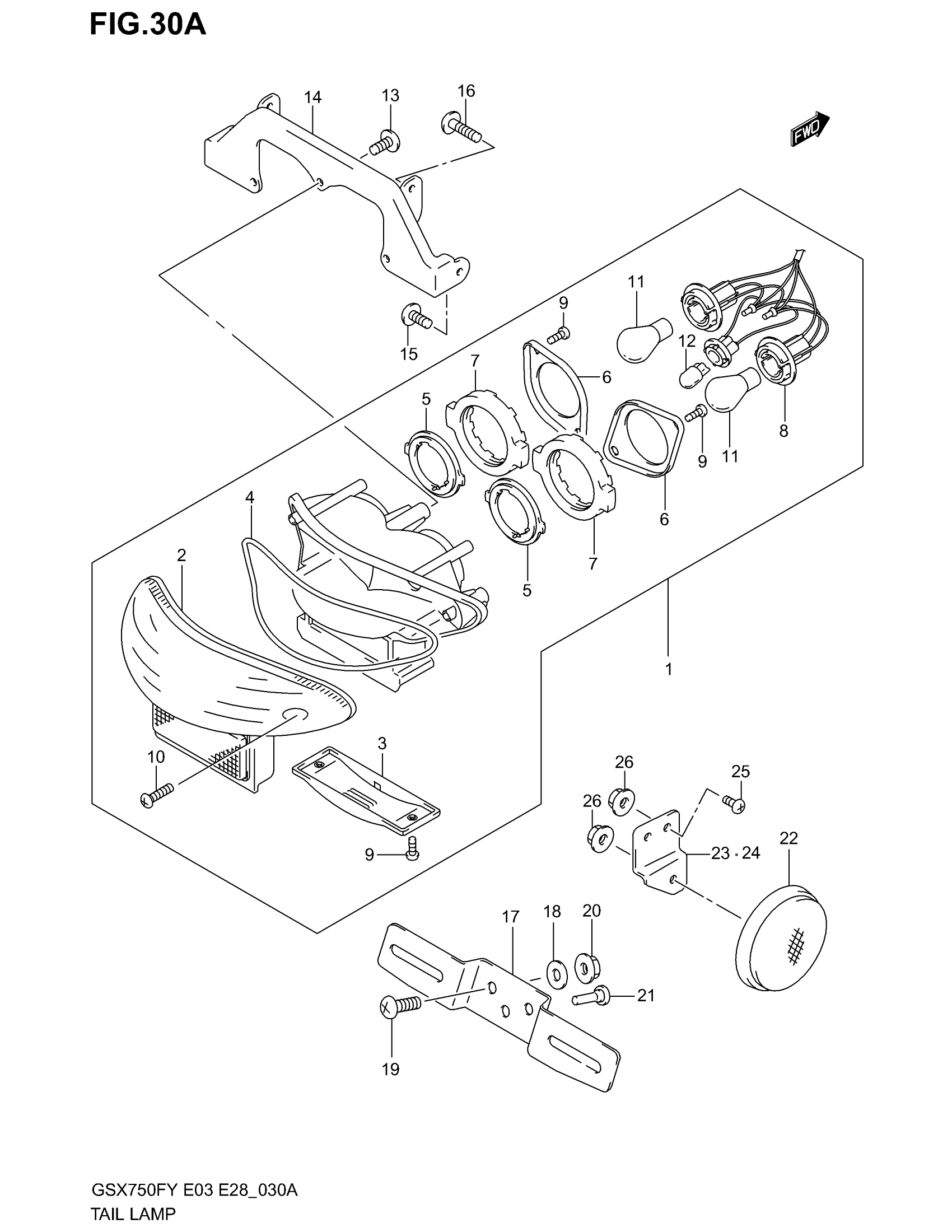

Suzuki GSX750F (2003) TAIL LAMP (MODEL K3) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 12

35710-24F30

Unavailable

2

LENS

35712-24F30

$33.67

3

LENS, LICENSE

35912-24F00

Unavailable

4

GASKET

35713-24F00

$8.75

5

PLATE NO.1

35716-48B21

$20.22

6

PLATE NO.2

35736-48B21

$21.92

7

CUSHION

35765-48B21

$12.97

8

SOCKET & CORD

35718-24F00

$108.23

9

SCREW This part replaces 03211-04123.

03211-0412A

$2.23

10

SCREW

03211-04207

$1.49

11

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

12

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

13

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

14

BRACKET, REAR COMB

35726-08F00

Unavailable

15

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

16

SCREW This part replaces 03541-05253.

03541-0525B

$2.32

17

BRACKET, LICENSE PLATE

35927-24F00

$13.67

18

.WASHER (6.5X20X1.6)

09160-06088

$1.65

19

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

20

NUT This part replaces 08316-10063.

08316-1006B

$2.50

21

CUSHION

09321-06026

$2.92

22

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

23

BRACKET, REAR RH

35975-08F10

Unavailable

24

BRACKET, REAR LH

35976-08F10

Unavailable

25

SCREW This part replaces 02112-05123.

02112-0512A

$1.49

26

NUT This part replaces 08316-10053.

08316-1005A

$2.19
