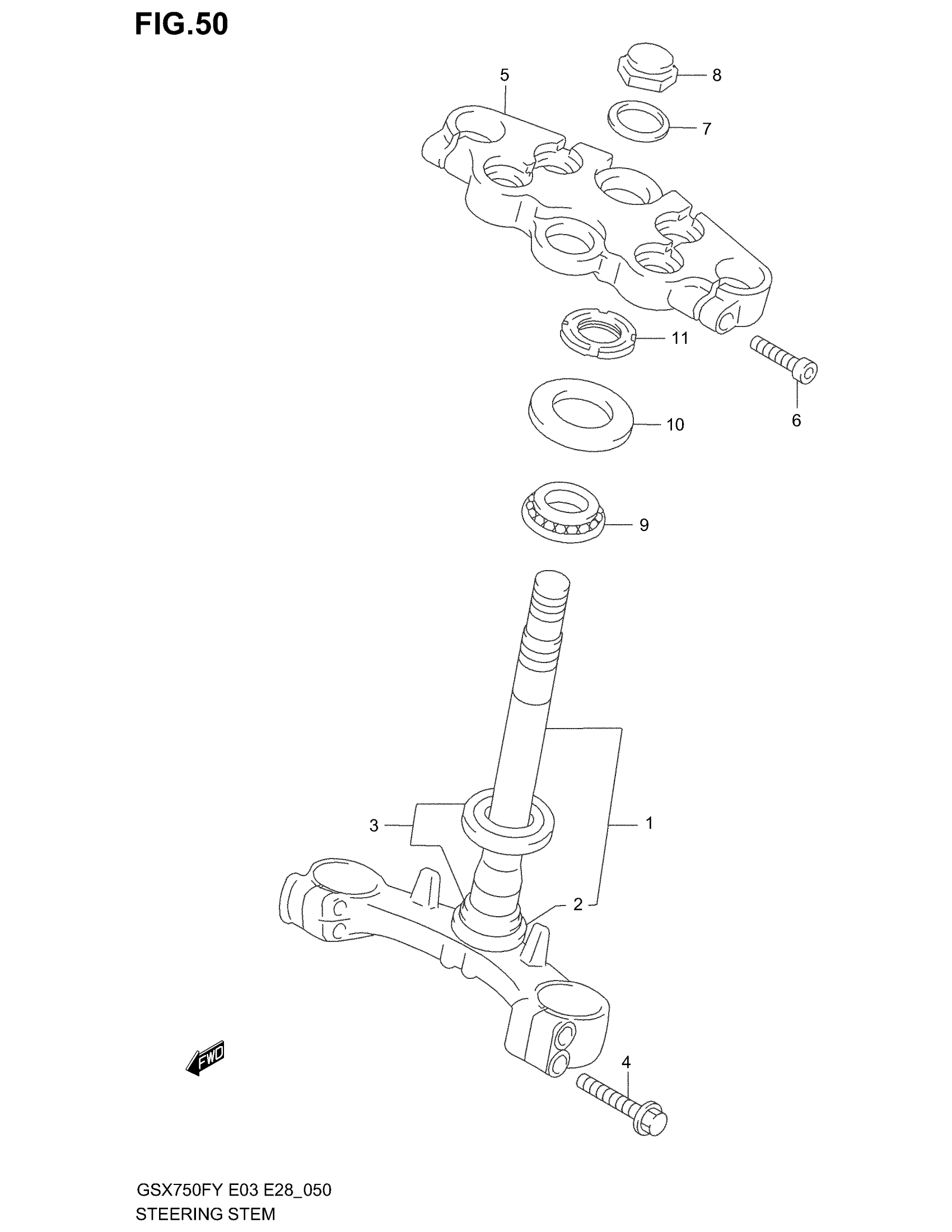

Suzuki GSX750F (2003) STEERING STEM (MODEL W/X/Y/K1/K2) Diagram

STEM, STEERING | Includes Item(s) 2 - 3

51410-08F00

Unavailable

SEAL, STEERING LOWER

51644-12C00

$9.44

BEARING (30X55X17)

09267-30010

$48.11

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

HEAD, STEERING STEM

51311-08FA0

Unavailable

BOLT This part replaces 07130-08353.

07130-0835B

$4.60

WASHER

51356-24B01

$5.38

NUT

51353-24B00

$30.67

BEARING (25X47X15)

09267-25009

$52.18

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

NUT, STEERING STEM

51631-28000

$17.37
