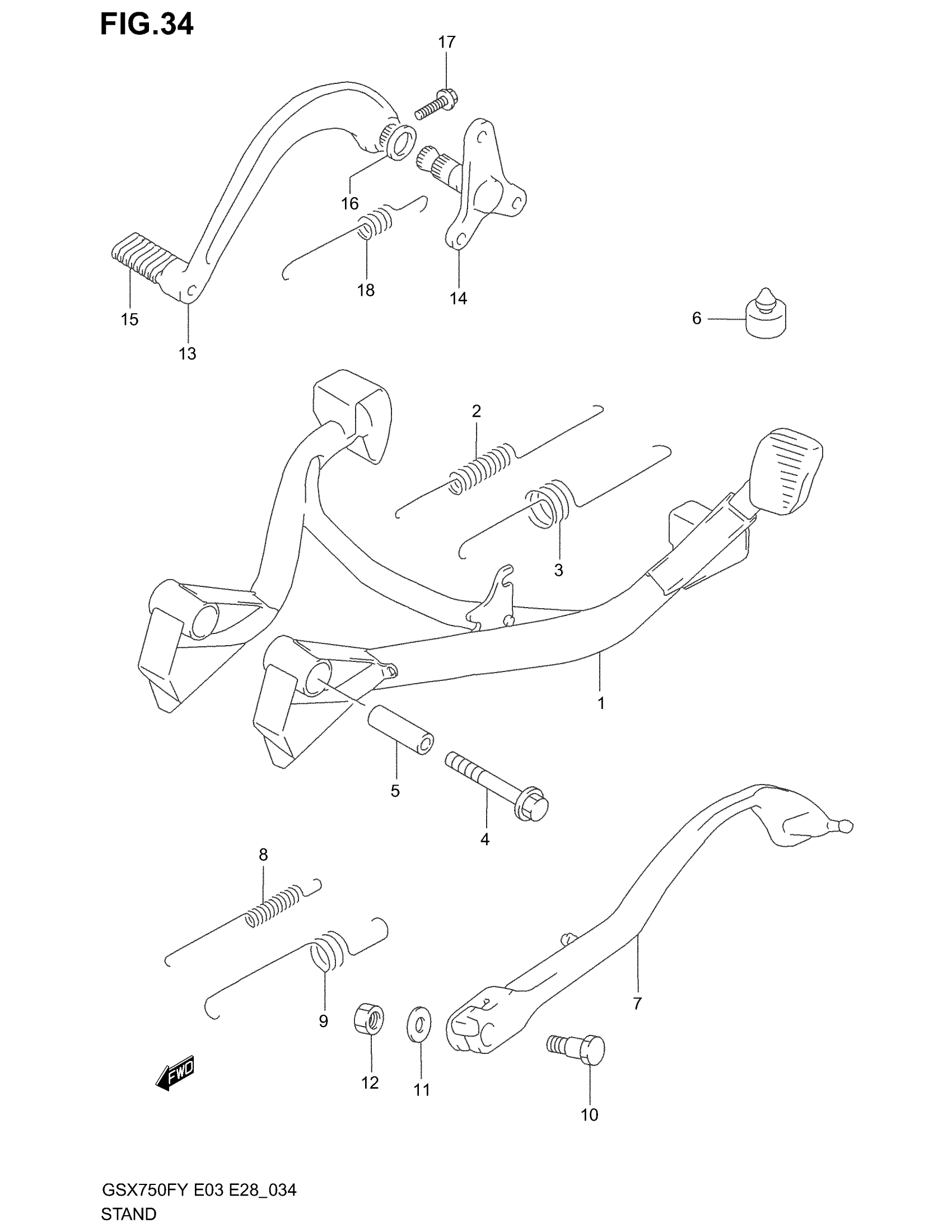

Suzuki GSX750F (2003) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-08F00

Unavailable

2

SPRING, INNER

09443-14059

$9.73

3

SPRING, OUTER

09443-22013

$9.17

4

ARM, BRAKE ROD This part replaces 01580-10603.

01580-1060B

$6.05

5

SPACER

09180-10040

$2.56

6

CUSHION

09321-10017

$6.38

7

STAND, PROP | MODEL W/X/Y/K1/K2 This part replaces 42310-08F00.

42310-08F01

$163.80

7

STAND, PROP | MODEL K3

42310-08F01

$163.80

8

SPRING, INNER

09443-12036

$7.84

9

SPRING, OUTER

09443-19010

$6.51

10

BOLT

09111-10036

$4.82

11

SHIM

08221-12224

$1.96

12

NUT

09159-10097

$5.66

13

PEDAL, BRAKE

43110-19C02

Unavailable

14

ARM, BRAKE PEDAL ROD

43120-19C00

Unavailable

15

RUBBER

43151-04701

$5.80

16

WASHER, BRAKE BOSS

43212-04A00

$2.13

17

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

18

SPRING

09443-13028

$7.57
