Partiron

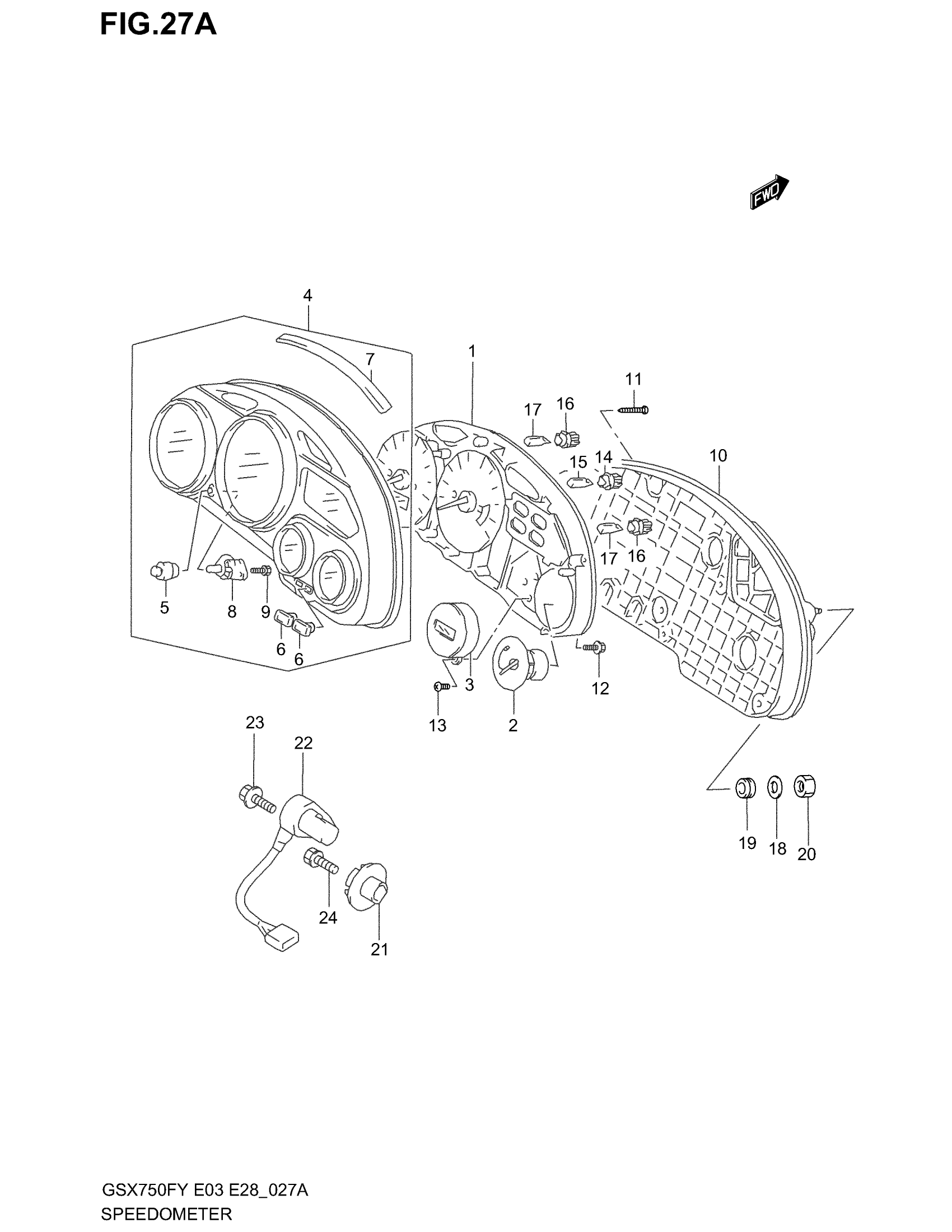

Suzuki GSX750F (2003) SPEEDOMETER (MODEL Y/K1) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-08F80

Unavailable

1

SPEEDOMETER (KILO) | E28

34120-08F70

Unavailable

2

FUEL METER

34320-08F50

Unavailable

3

CLOCK ASSY

34720-08F50

Unavailable

4

VISOR ASSY | Includes Item(s) 5 - 9

34150-08F50

Unavailable

5

SWITCH, GUM (TRIP)

34124-33E00

$5.75

6

SWITCH, GUM (CLOCK)

34661-21EA0

Unavailable

7

PACKING

34153-21EA0

Unavailable

8

ATTACHMENT, SWITCH

34123-33E00

Unavailable

9

SCREW, PAN HEAD (3X10)

09132-03005

Unavailable

10

CASE ASSY

34130-21EA1

Unavailable

11

.SCREW This part replaces 03541-04203.

03541-0420A

$2.15

12

SCREW

02112-73207

Unavailable

13

SCREW This part replaces 03511-04163.

03511-0416A

$1.78

14

SOCKET (T:6.5)

34172-33E00

$7.53

15

.BULB (12V1.7W)

09471-12108

$3.42

16

SOCKET (T:5)

34175-78900

Unavailable

17

BULB (12V,1.4W)

09471-12055

$5.60

18

WASHER (6.5X22X1.6)

09160-06054

$1.62

19

CUSHION

09320-08053

$5.73

20

NUT This part replaces 08310-00063.

08310-0006A

$1.84

21

ROTOR,SPEED | MODEL W/X/Y %F.NO.JS1GR7GA Y2101689 This part replaces 34981-42E00.

34981-42E01

$17.42

21

ROTOR,SPEED | MODEL Y/K1 F.NO.JS1GR7GA Y2101690% This part replaces 34981-35F00.

34981-38G01

$17.92

21

ROTOR,SPEED | MODEL K1 This part replaces 34981-35F00.

34981-38G01

$17.92

22

SENSOR, SPEED This part replaces 34990-33E10.

34990-35F00

$127.72

23

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

24

BOLT | MODEL W/X/Y %F.NO.JS1GR7GA Y2101689 This part replaces 07130-08203.

07130-0820B

$3.49

24

BOLT | MODEL Y F.NO.JS1GR7GA Y2101690% This part replaces 07130-08253.

07130-0825B

$3.37

24

BOLT | MODEL K1 This part replaces 07130-08253.

07130-0825B

$3.37
