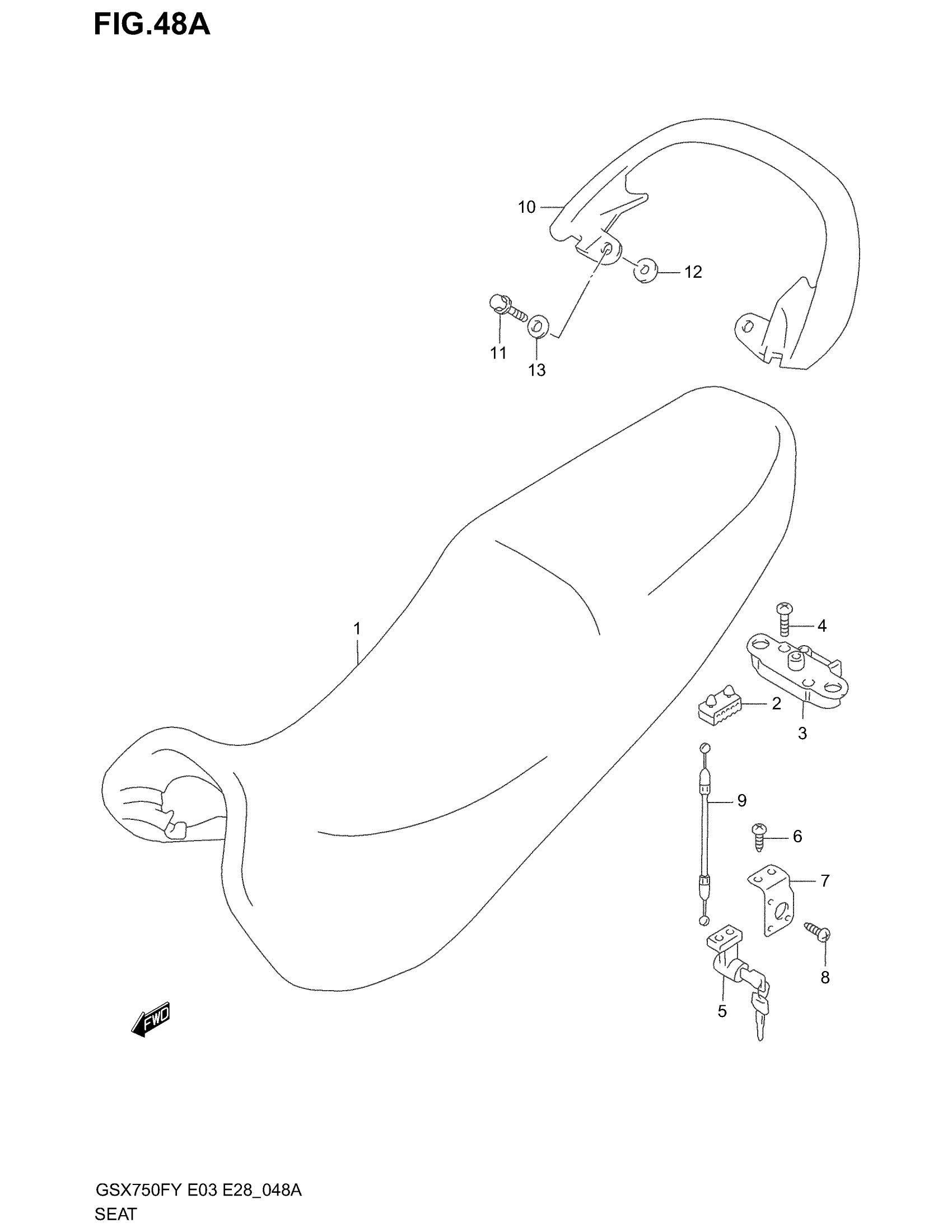

Suzuki GSX750F (2003) SEAT (MODEL Y/K1/K2) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 45100-08F00-V09.

45100-08F01-V09

Unavailable

2

CUSHION

45149-31300

$3.56

3

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

4

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

5

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

$78.33

6

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

7

BRACKET, SEAT LOCK

45289-03F00

Unavailable

8

SCREW This part replaces 03141-14123.

03141-1412B

$2.83

9

CABLE, SEAT LOCK

45280-25D00

Unavailable

10

HANDLE, PILLION RIDER (MAROON) | MODEL Y

46211-03F11-22U

Unavailable

10

HANDLE, PILLION RIDER (GRAY) | MODEL Y

46211-03F11-Y9E

Unavailable

10

HANDLE, PILLION RIDER (GOLD) | MODEL K1

46211-03F11-YC7

Unavailable

10

HANDLE, PILLION RIDER (BLACK) | MODEL K1/K2

46211-03F11-Y7L

Unavailable

10

HANDLE, PILLION RIDER (RED) | MODEL K2

46211-03F11-19A

Unavailable

11

BOLT This part replaces 01551-08303.

01551-0830A

$3.40

12

CUSHION (17X24X1.5)

46212-03F10

$5.88

13

WASHER (8.5X24X2.3)

09160-08501

$2.28
