2003 Suzuki GSX750F Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2003 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

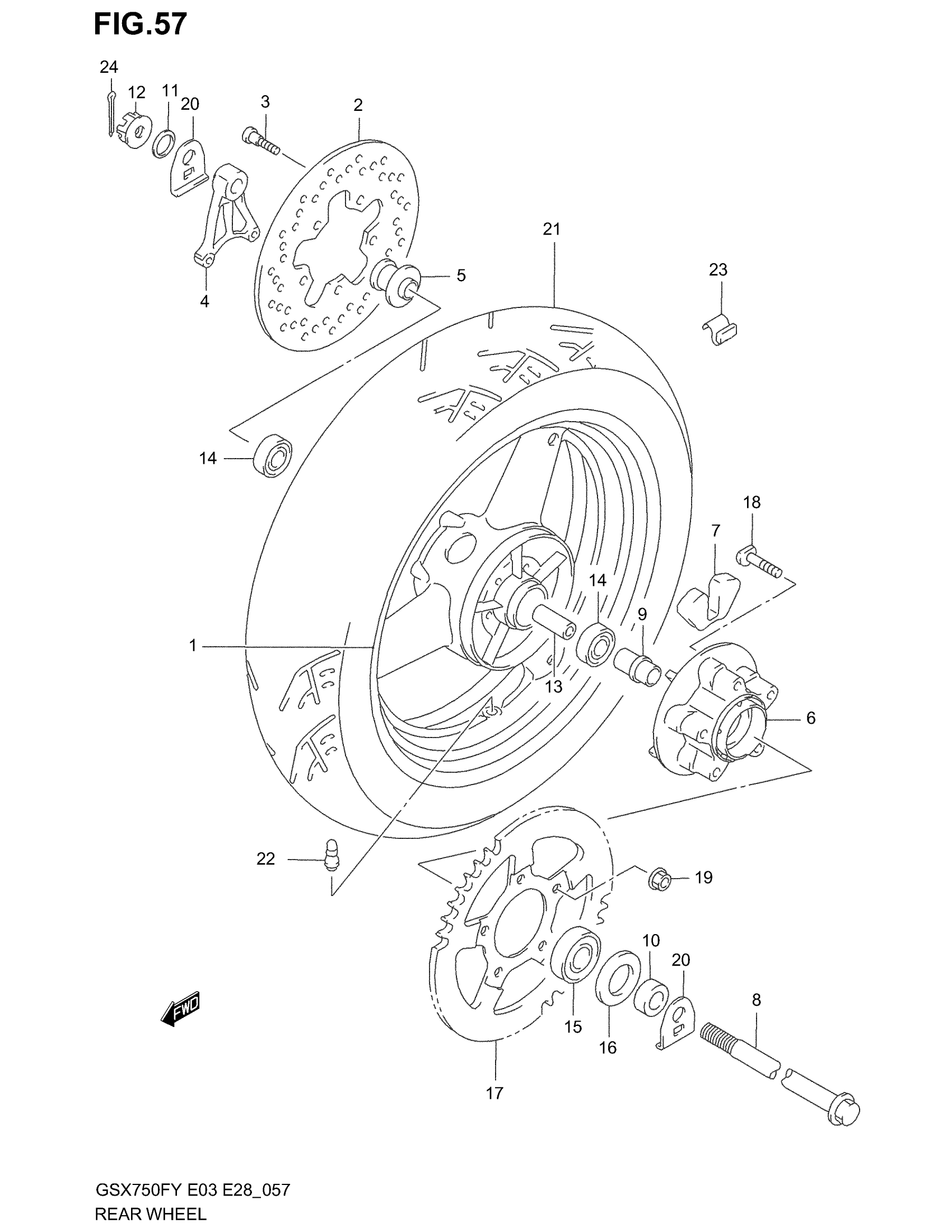

2003 Suzuki GSX750F Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL,RR,17M/CX | MODEL W/X This part replaces 64111-08F00-Y6G.

64111-08F01-Y6G

1
Out of stock

1

WHEEL, REAR (17XMT4.50) GRAY | MODEL Y/K1

64111-08F00-35W

1
Out of stock

1

WHEEL, REAR (17XMT4.50) (BLACK | MODEL K2/K3 This part replaces 64111-08F00-019.

64111-08F01-019

1
Out of stock

2

DISC, REAR BRAKE

69211-21E00

1
Out of stock

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

5
Out of stock

4

BRACKET, REAR CALIPER

69721-33D00

1
Out of stock

5

SPACER, REAR AXLE RH

64740-19C00

1
Out of stock

6

DRUM, REAR SPROCKET

64611-33C00

1
Out of stock

7

ABSORBER,RR HUB SHOCK

64651-27A01

5
Out of stock

8

AXLE, REAR

64711-08F10

1
Out of stock

9

RETAINER, HUB BEARING

64733-34C00

1
Out of stock

10

SPACER, REAR AXLE LH

64741-45D00

1
Out of stock

11

WASHER

09160-17050

1
Out of stock

12

NUT, HUB This part replaces 08314-40163.

08314-4016A

1
Out of stock

13

SPACER, BEARING (17.5X25X88)

09180-17067

1
Out of stock

14

BEARING

08143-63037

2
Out of stock

15

BEARING (25X62X17)

09262-25073

1
Out of stock

16

SEAL,OIL (35X62X8)

09285-35001

1
Out of stock

17

SPROCKET, REAR (NT:45)

64511-20C21

1
Out of stock

18

BOLT (10X47)

09119-10043

5
Out of stock

19

NUT

08319-31107

5
Out of stock

20

WASHER, CHAIN ADJUSTER

61445-20C01

2
Out of stock

21

TIRE, REAR,150/70 ZR17(69W) (DUNLOP)

65110-08F10

1
Out of stock

22

VALVE ASSY, WHEEL RIM (TR412) | MODEL W This part replaces 43130-24A11.

43130-24A00

1
Out of stock

22

VALVE ASSY, WHEEL RIM (TR412) | MODEL X/Y/K1/K2/K3

43130-24A00

1
Out of stock

23

BALANCER, WHEEL (10G)

55411-00A00

1
Out of stock

23

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

1
Out of stock

24

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock
