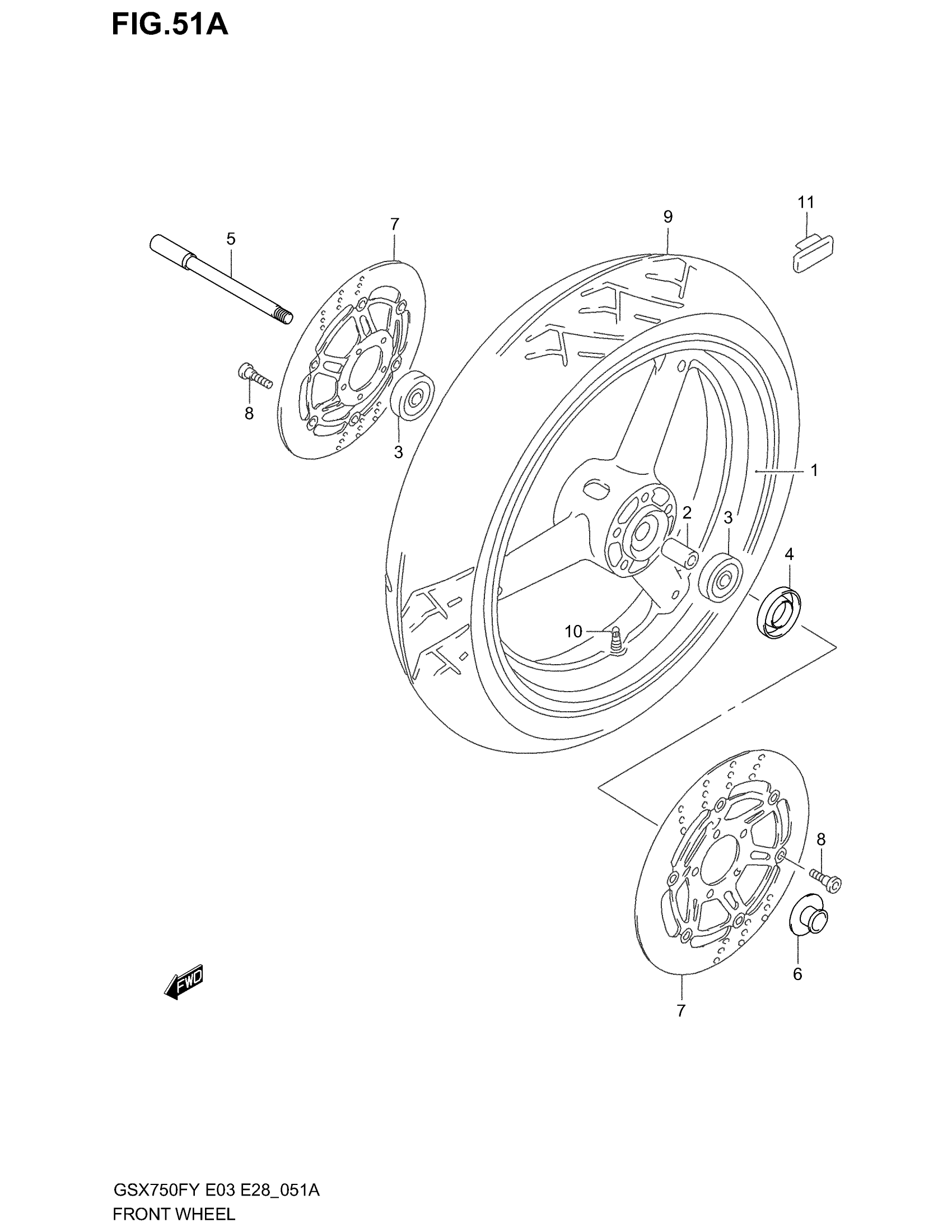

Suzuki GSX750F (2003) FRONT WHEEL (MODEL K3) Diagram

#

Description

Price

1

WHEEL, FRONT (17XMT3.50) (BLACK)

54111-08F20-019

Unavailable

2

SPACER (17.5X25X88)

09180-17067

$25.05

3

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

4

SEAL, FRONT HUB

09285-22004

$5.51

5

AXLE,FR

54711-08F00

$117.03

6

SPACER, FR AXLE LH

54750-31F00

$28.90

7

DISC, FRONT BRAKE This part replaces 59210-08F10.

59210-08F11

$515.82

8

BOLT

09106-08160

$3.22

9

TIRE, FRONT,120/70 ZR17 (58W) (DUNLOP)

55110-08F10

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

11

BALANCER, WHEEL (10G)

55411-00A00

$1.35

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$5.14
