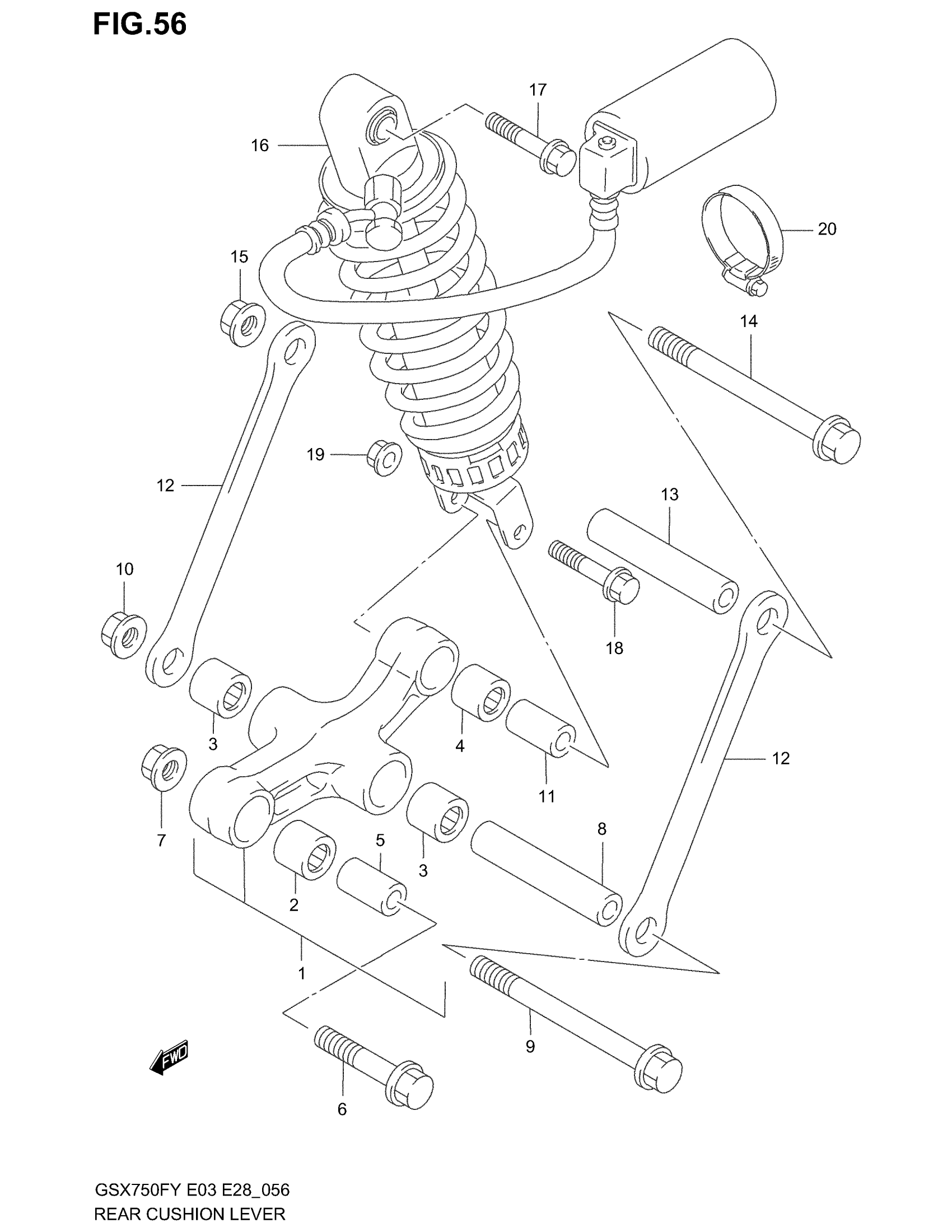

Suzuki GSX750F (2003) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-08810

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

BEARING, CENTER (20X27X23.5)

09263-20071

$25.92

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, FRONT (14X20X34)

09180-14014

$17.50

6

BOLT, FRONT (14X62)

09103-14012

Unavailable

7

NUT This part replaces 08319-31148.

08319-3114A

$9.66

8

SPACER, CENTER (14X20X94)

62317-40C10

Unavailable

9

BOLT, CENTER (14X124)

62658-40C10

Unavailable

10

NUT This part replaces 08319-31148.

08319-3114A

$9.66

11

SPACER, REAR (10X17X30)

62684-40A10

$12.15

12

ROD, REAR CUSHION LEVER

62641-08F00

Unavailable

13

SPACER, ROD (14X20X94)

62317-40C10

Unavailable

14

BOLT, ROD (14X124)

62658-40C10

Unavailable

15

NUT This part replaces 08319-31148.

08319-3114A

$9.66

16

ABSORBER ASSY, REAR SHOCK | E3

62100-08FB1

Unavailable

16

ABSORBER ASSY, REAR SHOCK | E28

62100-08FA1

Unavailable

17

BOLT, UPPER (10X52)

09103-10213

$5.77

18

BOLT, LOWER (10X44)

09103-10086

Unavailable

19

NUT This part replaces 08319-31103.

08319-3110A

$2.73

20

CLAMP, TANK

09402-50511

$11.73
