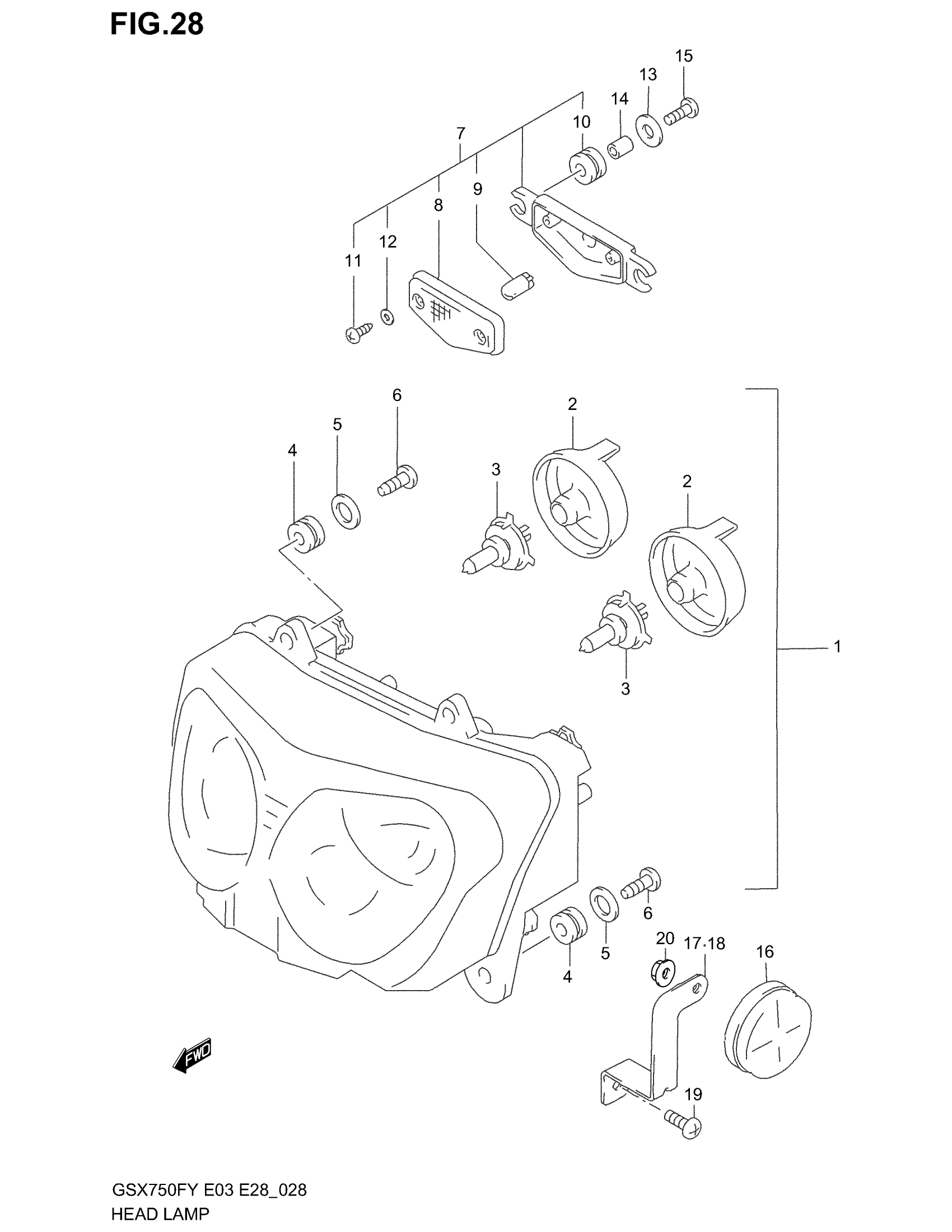

Suzuki GSX750F (2003) HEADLAMP (MODEL W/X/Y/K1/K2) Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL W/X/Y This part replaces 35100-08F00-999.

35100-08F01-999

Unavailable

1

HEADLAMP ASSY | MODEL Y/K1/K2; Includes Item(s) 2

35100-08F01-999

Unavailable

2

COVER, SOCKET

35125-74F00

$17.28

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

4

CUSHION

35137-33E00

$3.65

5

WASHER (5.5X18X1.0)

09160-05045

$1.93

6

SCREW This part replaces 03512-05163.

03511-0516A

$1.86

7

LAMP ASSY, FRONT POSITION | Includes Item(s) 8 - 12

36110-08F00

$73.78

8

LENS

36112-08F00

Unavailable

9

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

11

SCREW This part replaces 03211-04123.

03211-0412A

$2.23

12

WASHER | MODEL W/X This part replaces 36117-08F00.

35128-37B00

Unavailable

12

WASHER | MODEL Y/K1/K2

35128-37B00

Unavailable

13

WASHER (5.5X18X1.0)

09160-05045

$1.93

14

SPACER (5.5X8X10.5)

09180-05048

$2.03

15

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

16

REFLEX REFLECTOR ASSY

35950-14A00

$16.94

17

BRACKET,FR SIDE | %F.NO.JS1GR7GA X2100428 This part replaces 35956-08F00.

35956-08F0V

Unavailable

17

BRACKET,FR SIDE | F.NO.JS1GR7GA X2100429% This part replaces 35956-08F01.

35956-08F0V

Unavailable

18

BRACKET,FR SIDE | %F.NO.JS1GR7GA X2100428 This part replaces 35957-08F00.

35957-08F0V

Unavailable

18

BRACKET,FR SIDE | F.NO.JS1GR7GA X2100429% This part replaces 35957-08F01.

35957-08F0V

Unavailable

19

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

20

NUT | F.NO.JS1GR7GA X2100429% This part replaces 08316-10053.

08316-1005A

$2.19
